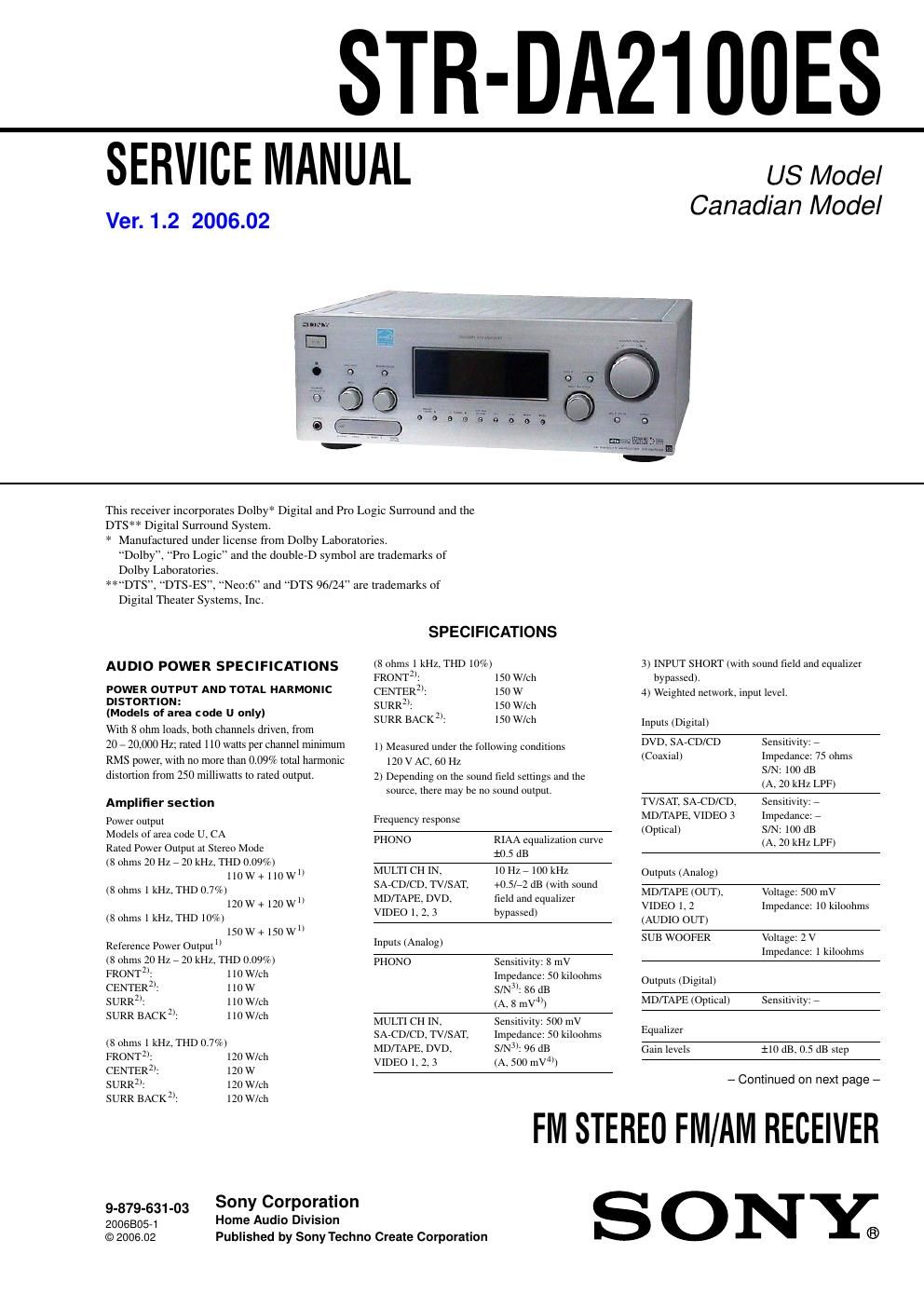

Sony str da 2100 es service manual

Page 2

STR-DA2100ES

FM tuner section
Tuning range

Antenna

Antenna terminals
Intermediate frequency
Sensitivity

87.5 7108.0 MHZ
FM wire nnlenrla

75 ohms, unbalanced
10.7 MHz

Mono; 18.3 dBf. 2.2 iiw75 ohms
Stereo: 33.3 dBf. 22.5 iiV/75 ohms
Useable sensitivity 1 1.2 dBt: 1 uV/75 ohms
SIN
Mono; 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 05%
Separation 45 dB at 1 kHz
Frequency response 30 Hz , 15 kHz.
+0.5/72 dB
Selectivity 60 dB at 400 kHz

AM tuner section
Tuning range

With loekHz tuning scale:
With 97kHz Inning scale:
Antenna

Intermediate frequency
Usable sensitivity

5307 1,710 kst
53171,71()kHz5

Loop antenna

450 kHz

50 dB/m (at 1000 kHz or
999 kHz)

SIN 54 dB (at 50 niV/m)
Harmonic distortion 0.5% (50 mV/m 400 Hz)
Selectivity
At 9 kHz:

At 10 kHz:

35 dB
40 dB

5) You can change the AM tuning scale to 9 kHz or 10
kHz. After tuning in any AM station turn off the
receiver. While holding down PRESET TUNING +
or TUNING +, press I/(b. All preset stations will be
erased when you change the tuning scale. To reset

Ihe scale to 10 kHz (or 9 kHz), repeal ihe procedure.

Video section

Inputs/Outputs
Video: 1 Vprp, 75 ohtns
Sevideo: Y: lep, 75 ohms
C: 0.286 Vprp. 75 ohms
COMPONENTVIDEO: Y: 1 Vprp. 75 ohms
Pa/Cs/BN: 0.7 Vpep,
75 ohms
Pk/CR/RVY: 0.7 Vpep,
75 ohms
80 MHz HD Pass Through
General

Power requirements 120 V AC, 60 HZ

Power consumption

Area code Power consumpiion
U 310 W
CA 420 VA

Power consumption (during standby mode)

0.5 w (when INST.
MODE" in the CIS menu is
set to OFF")

2 switched. 120 W/1A
MAX

Dimensions (w/h/d) (Approx.)

43()><160.5 X 398.5 mm
(16 Mix 6 203x15 5/3
inches) including
projecting parts and
controls

14.0 kg (30 lb 14 02)

AC outlets

Mass (Approx)

Supplied accessories

FM wire antenna (1)

AM loop antenna (1)

Remote commander RMeAAEOOI (1)
R6 (sizeeAA) batteries (2)

Design and specifications are subject to change
without notice.
