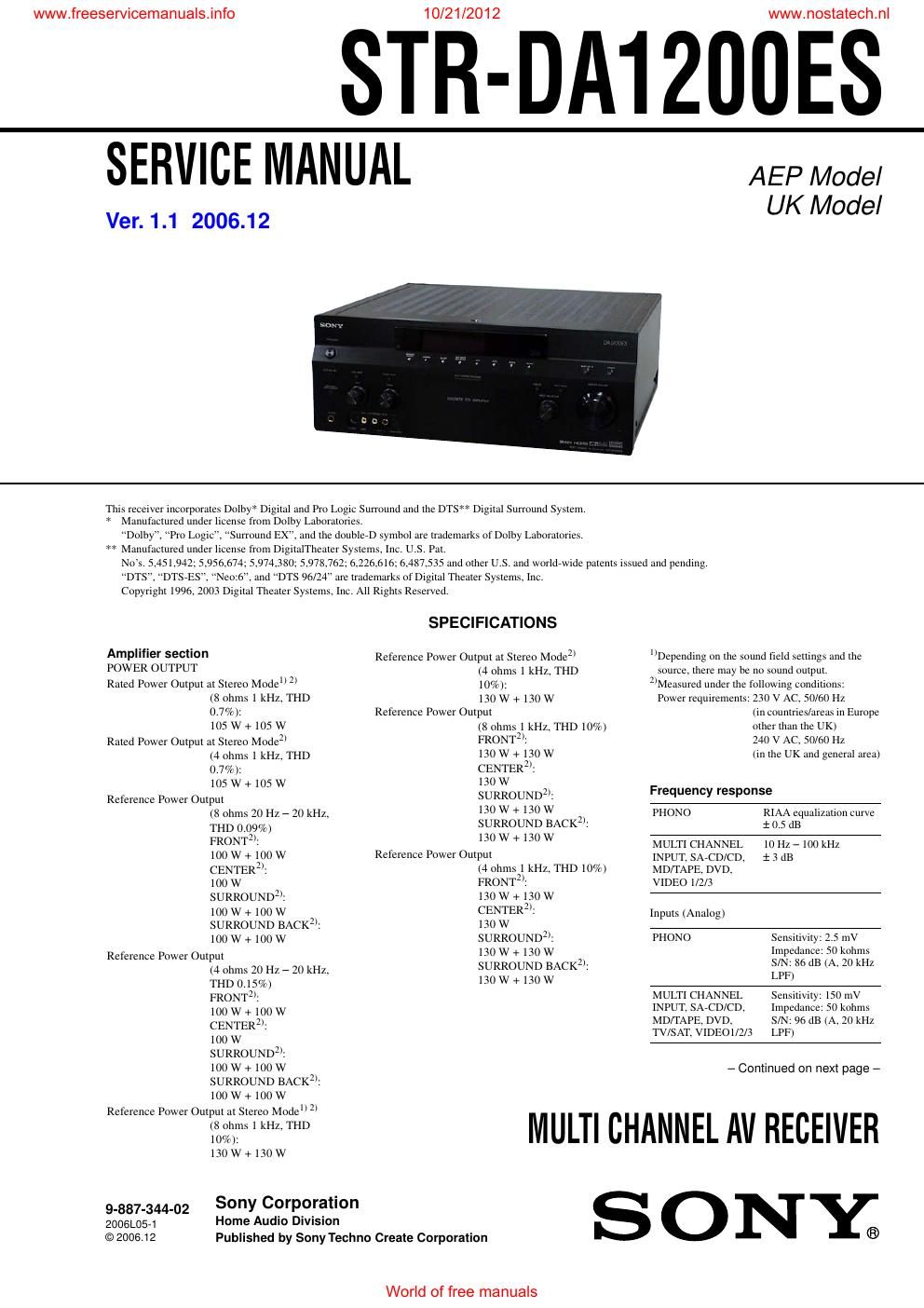

Sony str da 1200es rec service manual

Page 2

www.freeservicemanuals.info

STR-DA1200ES

Inputs (Digital)

DVD. SAVCD/CD Impedance: 75 ohms
(Coaxial) S/N: 95 (IR (A, 20 kHz
LPF)

VIDEO l/3,TV/SAT. S/N: 96(113
MD/TAPE (Optical) (A, 20 kHz LPF)

Outputs

MD/TAPE, VIDEOI/Z Voltage. 150 mV
(AUDIO OUT) Impedance: 1 kohms

FRONT L/R, CENTER, Voltage: 2 V
SURROUND L/R, Impedance: 1 kohms

SURROUND BACK L/R,

SUB WOOFER

EQUALIZER

Gain levels :10 dB, 1 dB step

FM tuner section
Tuning range 87.5 - 108.0 MHz

Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms. unbalanced

Sensitivity
Mono: 18.3 dBI', 2.2 uV/75 ohms
Stereo: 38.3 dBt', 22.5 ptV/75 ohms

Usable sensitivity 11.2 dBt', 1 ptV/75 ohms
S/N

Mono: 76 dB
Stereo: 70 dB
Harmonic distortion at 1 kHz
Mono: 0.3%
Stereo: 0.5%
Separation 45 dB at 1 kHz
Frequency response 30 H2 7 15 kHz, +0.5/72 dB
Selectivity 60 dB at 400 kHz
2

10/21/2012

AM tuner section
Tuning range 531 7 1,602 kHz

(With QAkHz tuning scale)
Antenna (aerial) Loop antenna (aerial)

Usable sensitivity 50 dB tt/m (at 99) kHz)

S/N 54 dB (at 50 mV/m)
Harmonic distortion 0.5% (50 mV/m. 400 Hz)
Selectivity 35 (13

Video section

Inputs/Outputs
Vide : 1 Vpep, 75 ohms
S video: Y: 1 Vprp, 75 ohms
C: 0.286 Vp-p, 75 ohms
COMPONENT VIDEO:

Y: 1 Vp-p. 75 ohms

PB/CB: 0.7 Vpep, 75 ohms
PRICR: 0.7 Vp-p, 75 ohms
80 MHZ HD Pass Through

General
Power requirements 230 V AC, 50/60 Hz
(in countries/areas in
Europe other than the UK)
240 V AC, 50/60 HZ
(in the UK and general
area)
Power consumption 440 W
Power consumption (during standby mode)
1 W
AC outlets I switched, 100 W/0.4A
MAX
(Models for countries/areas
in Europe other than the UK)
430 X 175 X 430 mm
including projecting parts
and controls
Mass (Approx) 15 kg

Dimensions

www.nostatech.n|

Supplied accessories
Operating Instructions (this manual)

Quick Setup Guide (1)

Optimizer microphone ECMAACZ (1)
FM wire antenna (aerial) (1)

AM loop antenna (aerial) (1)

AC power cord (mains lead) (1)
Remote commander RM-AAP015 (1)
R6 (size-AA) batteries (2)

Design and specific ions are subject to
change without notice.

Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be

damaged by heat.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
