Sony str d 660 z owners manual

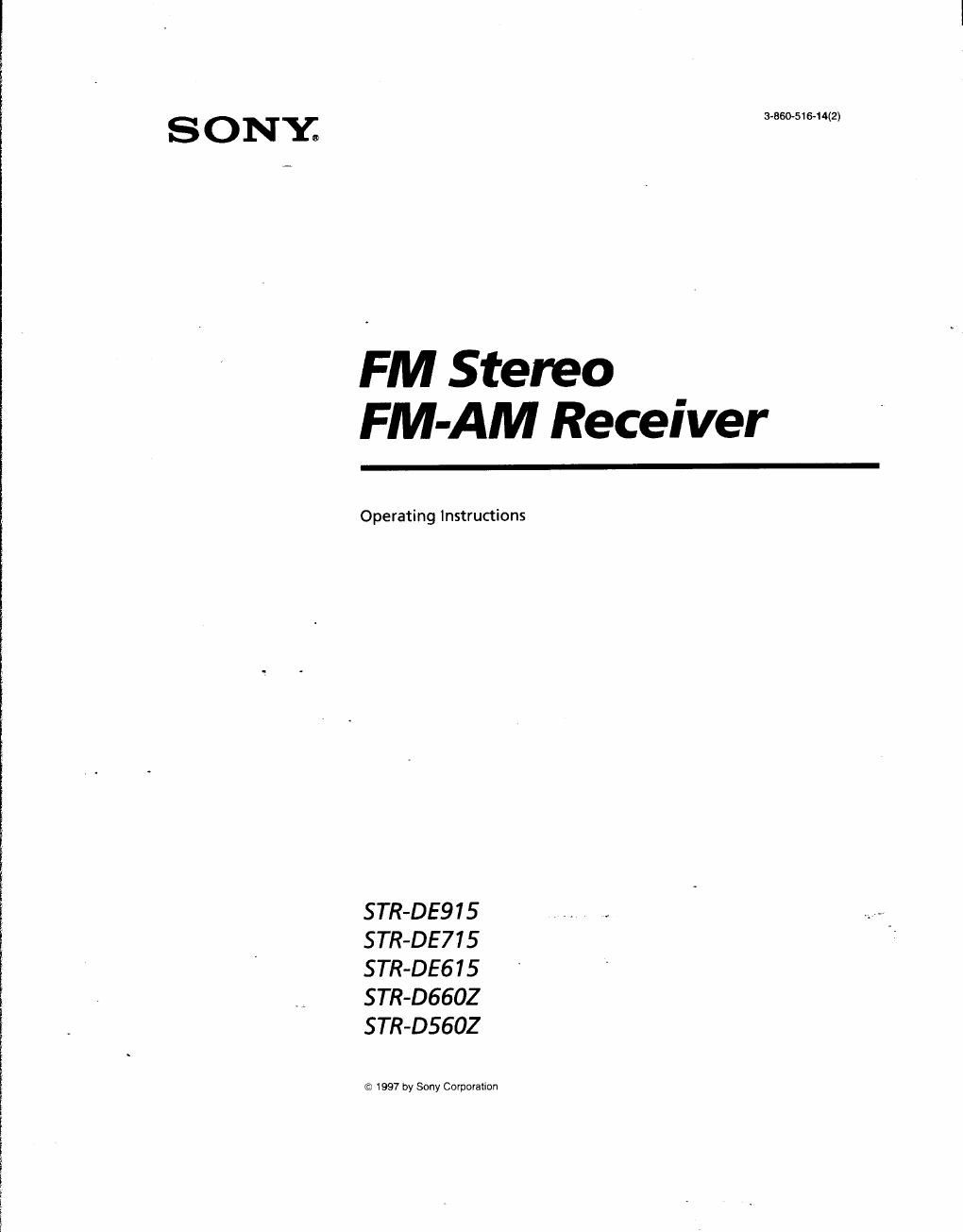

Page 1

S O N Y; 38605154412)

FM Stereo
FM-AM Receiver

Operating Instructions

$TR-DE9 1 5
STR-DE715
S TR-DE 6 1 5
STR-DGGOZ
STR-D5602

© 1997 by Sony Corporation

Page 2

WARNING

To prevent fire or. shock
hazard. do not expose
the unit to rain or
moisture;

mmmmmm

arc-WM.

This symbol is intended to alert the user
to the presence of uninsulated
dangerous voltage within the
products enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.

A . .

This symbol is intended toplert the user
to the presence of important operating
and maintenance (servicing)
instructions in the literature
accompanying the appliance.

INFORMATION
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is no
guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful
interference to radio or television
reception, which can be determined by
turning the equipment air and on, the
user is encouraged to try to correct the
interference by one or more of the
following measures:
v Reorient or relocate the receiving
antenna.
- Increase the separation between the

equipment and receiver.

7 Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.

» Consult the dealer or an experienced
radio/TV technician tor help.

CAUTION

You are cautioned that any changes or
modification not expressly approved in'
this manual could void your authority
to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV
system installer s attention to Article
820-40 of the NBC that provides
guidelines for proper grounding and, in
particular, specifies that the cable
ground shall be connected to the
grounding system of the building, as
close to the point of cable entry as
practical.

Owner's Record

The model and serial numbers are
located on the rear of the unit. Record
the serial number in the space provided
below. Refer to them whenever you call
upon your Sony dealer regarding this
product.

Model No. STRVDE915/STR-DE715/
STR-DEblS / STR-DSGOZ/
STR-DSGOZ

Serial No. '

For the customers in Canada

CAUTION

TO PREVENT ELECTRIC SHOCK, DO
NOT USE THIS POLARIZED AC PLUG
WITH AN EXTENSION CORD.
RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADB CAN BE FULLY
INSERTED TO PREVENT BLADE
EXPOSURE.

-
Precautions

0n safety

- Should any solid object or liquid fall
into the cabinet, unplug the receiver
and have it checked by qualified
personnel before operating it any
further.

0n power sources

I Before operating the receiver, check
that the operating voltage is identical
with your local power supply. The
operating voltage is indicated on the
nameplate at the rear of the receiver.
The receiver is not disconnected from
the AC power source as long as it is
connected to the wall outlet, even if
the receiver itself has been turned off.
If you are not going to use the
receiver for a long time, be sure to
disconnect the receiver from the wall
outlet. To disconnect the AC power
cord, grasp the plug itself; never pull
the cord.

One blade of the plug is wider than
the other for the purpose of safety
and will fit into the Wall outlet only
one way. If you are unable to insert
the plug fully into the outlet, contact
your dealer.

Should the AC power cord need to be
changed, have it done at a qualified
service shop only.

On placement
Place the receiver in a location with
adequate ventilation to prevent heat
buildup and prolong the life of the
receiver.
Do not place the receiver near heat
sources, or in a place subject to direct

, sunlight, excessive dust or

mechanical shock.

O Do not place anything on top of the
cabinet that might block the
ventilation holes and cause
malfunctions.

on operation

- Before connecting other components,
be sure to turn off and unplug the
receiver.

0n cleaning

'5 Clean Hie cabinet, panel and controls

with a soft cloth slightly moistened
with a mild detergent solution. Do
not usc'any type of abrasive pad,
scouring powder or solvent such as
alcohol or benzine.

If you have any question or problem
concerning your receiver, please
consult your nearest Sony dealer.
