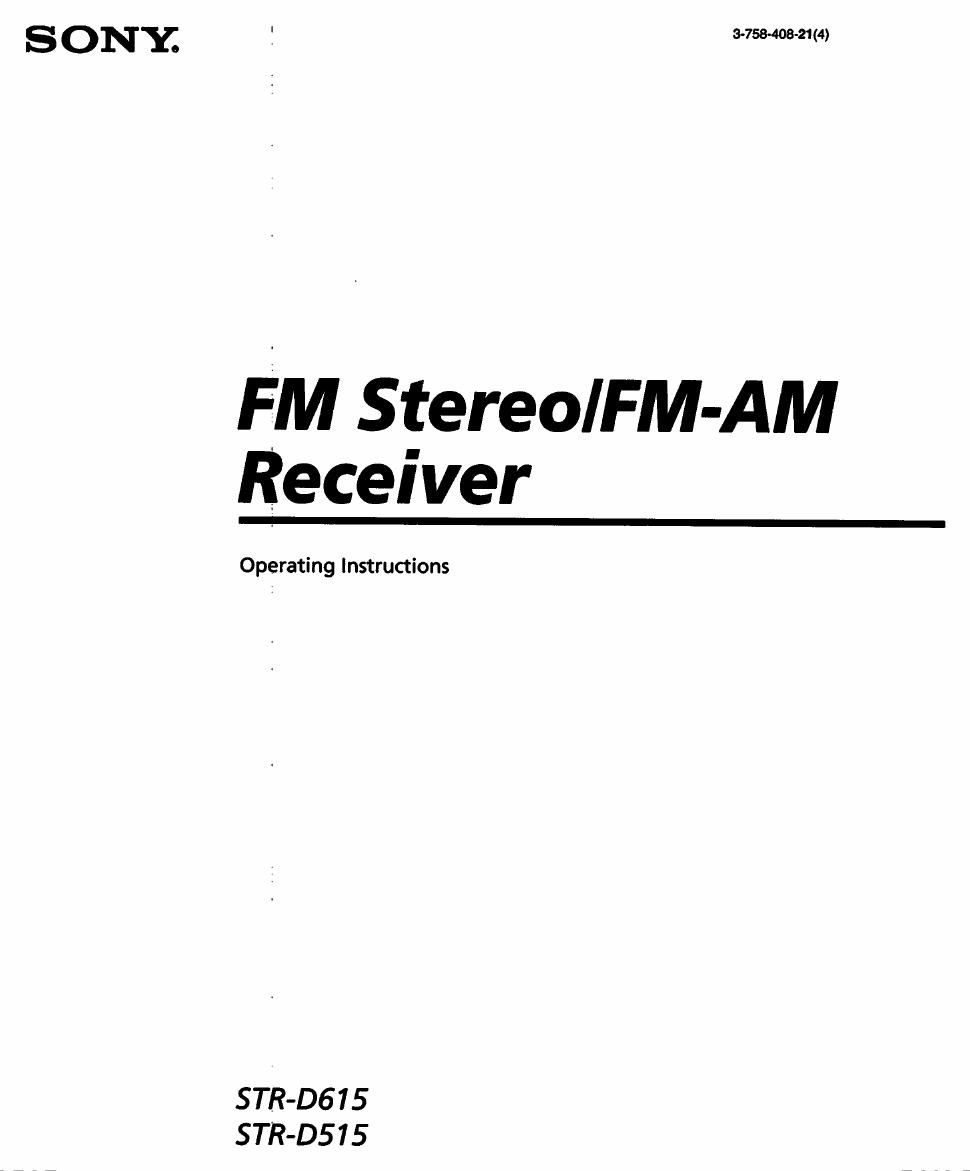

Page 1

S ONY; f wanna-21(4)

FM Stereo/FM-AM
Receiver

Operating Instructions

$TR-D615
STR-0515

Page 2

WARNING

To prevent fire or shock hazard. do not
expose the unit to rain or moisture.

CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE DOVER (OR BACK)

N0 USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

presence of uninsulated dangerous voltage
within the products enclosure that may be of
sufficient magnitude to constitute

a risk of electric shock to persons.

9 This symbol is intended to alert the user to the

presence of important operating and
maintenance (servicing) instructions in the
0 literature accompanying the appliance.

' This symbol is intended to alert the user to the

Note to CAN symm installer

This reminder is provided to call the CATV system
installers attention to Article 820-40 of the NEC thatprovldes
guidelines for proper grounding and, in

particular, specifies that the cable ground shall be

connected to the grounding system of the building, as

close to the point of cable entry as practical.

Owner's Record

The model number is located on the rear exterior and serial number
is on the rear. Record the serial number in the space provided
below. Refer to these numbers whenever you all upon your Sony
dealer regarding this product.

Model No. STR-DGIS
Model No. STR-DSI 5

Serial No.
Serial No.

INFORMATION

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception. which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures

2

-Reorient or relocate the receiving antenna.

-lncrease the separation between the equipment and receiver.

-Connect the uiprnent into an outlet on a circuit different from
that to whicheaie receiver is connected.

-Consult the dealer or an experienced radio/ TV technician for
help.

CAUTlON

You are cautioned that any change or modifications not ex pressly
approved in this manual could void your authority to operate this
equipment.

NOTICE FOR THE OJSTOMEIIS IN THE UNITED KINGDOM
A moulded plug complying with BS 1363 is littal to this equipment
for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5
AMP fuse approved by AS'IA or BSl to BS 1362. (ie. marlin! with
qt «9 mark) must beused.

if the plug supplied with this equipment has a detachable fuse
cover, be sure to attach the fuse cover after you change the fuse.
Never use the plug without the fuse cover. if you should lose the
fuse cover, please contact your nearest Sony service station.

lMPORI'ANI

If the plug supplied is not suitable for the socket outlets in your
home, it should be cut off and an appropriate plug fitted in
accordance with the following instructions.

The wires in this mains lead are coloured in accordance with the
following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not corrapond with the coloured markings identifying the
terminals in your plug. proceed as follows:
The wire which is coloured blue must be connochrd to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red. Do
not connect either wire to the earth terminal in the plug which is
marked by the letter E or by the safety earth symbol «tr or
coloured green or green and yellow.

WARNING

To prevent shock hazard, do not insert the plug cut off from the
mains lead into a socket outlet. This plug cannot be used and
should be destroyed.

For the distortion in Canada
(Atmou :

TO PREVENT ELECTRIC SHOCK. DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD.
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADE CAN BE FULLY lNSERTED TO PREVENT
BLADE EXPOSURE

This apparatus complies with the Class B limits (or radio noise
emissions set out in Radio Interference Regulations.
