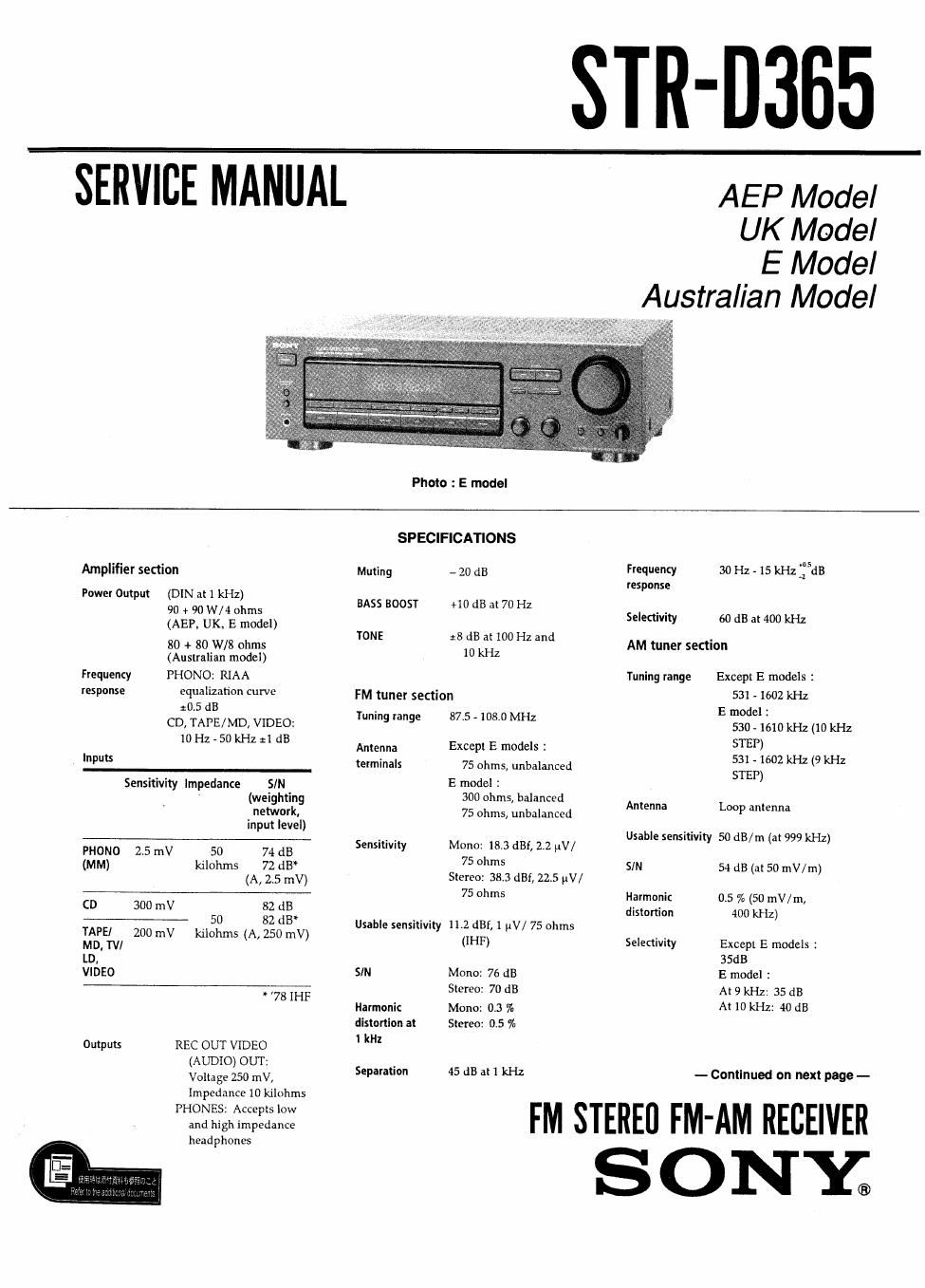

Sony str d 365 service manual
This is the 35 pages manual for sony str d 365 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony str d 365 service manual (Ocr-read)
Page 2
(E model ONLY)
You can change the AM tuning interval
to 9 kHz or 10 kHz .
After tuning in any AM station, turn off
the receiver. Hold down the PRESET
TUNING + button and press the POWER
button. All preset stations will be erased
when you change the interval. To reset
the interval to 10 kHz or 9 kHz, repeat
the procedure.
General
System
Power
requirements
Power
consumption
Dimensions
Mass (Approx)
Supplied
accessories
Tuner section: PLL
quartz-locked digital
synthesizer system
Preamplifier section:
Low-noise NF type
equalizer
Power amplifier section:
Pure-complimentary
SEPI
Except E models :
220 ~ 230 V AC,
50 / 60 Hz
E model :
120/220/240 V AC,
50/ 60 Hz
E, Singapore.
Malaysia,
HongKong model 1
200 W
AEP, UK. German,
East European.
Australian : 180W
Except E models :
430 x135 x 300 mm
B model :
430 x135 x 295 mm
Except UK models :
6.8 kg
UK model : 7.0kg
FM wire antenna (1)
AM loop antenna (1)
Remote commander
(remote) (1)
Size AA (R6) batteries (2)
Design and specifications are subject to
change without notice.
TABLE OF CONTENTS
Section me BEE
SERVICE NOTE .............................................................. 3
TEST MODE .................................................................... 3
SECTION 1. GENERAL .................................................. 4
SECTION 2. DISASSEMBLY
2-1. Case and Front Panel 5
2-2. Display and Tone Board 5
2-6. Back Panel 6
2-4. SP SW Board 6
2-5. Main Board 7
2-6. VOL and VOL-MAIN Connect Boar 7
SECTION 3. DIAGRAMS
3-1. Circuit Boards Location 8
3-2. Printed Wiring Board - Main Section - 9
(HS. Schematic Diagram - Main Section - 13
3-4. Printed Wiring Board - Display Section 17
3<5. Schematic Diagram - Display Section - 21
3-6. IC Pin Function
- I0201 (uPD78044GF-126-339) ..................................... 23
SECTION 4. EXPLODED VIEWS
4-1. Case and Front Panel Section
42. Chassis Section
4-3. Main Board Section
SECTION 5. ELECTRICAL PARTS LIST ....................... 28
SAFETY-RELATED COMPONENT WARNING I!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONV PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BV SONY.
