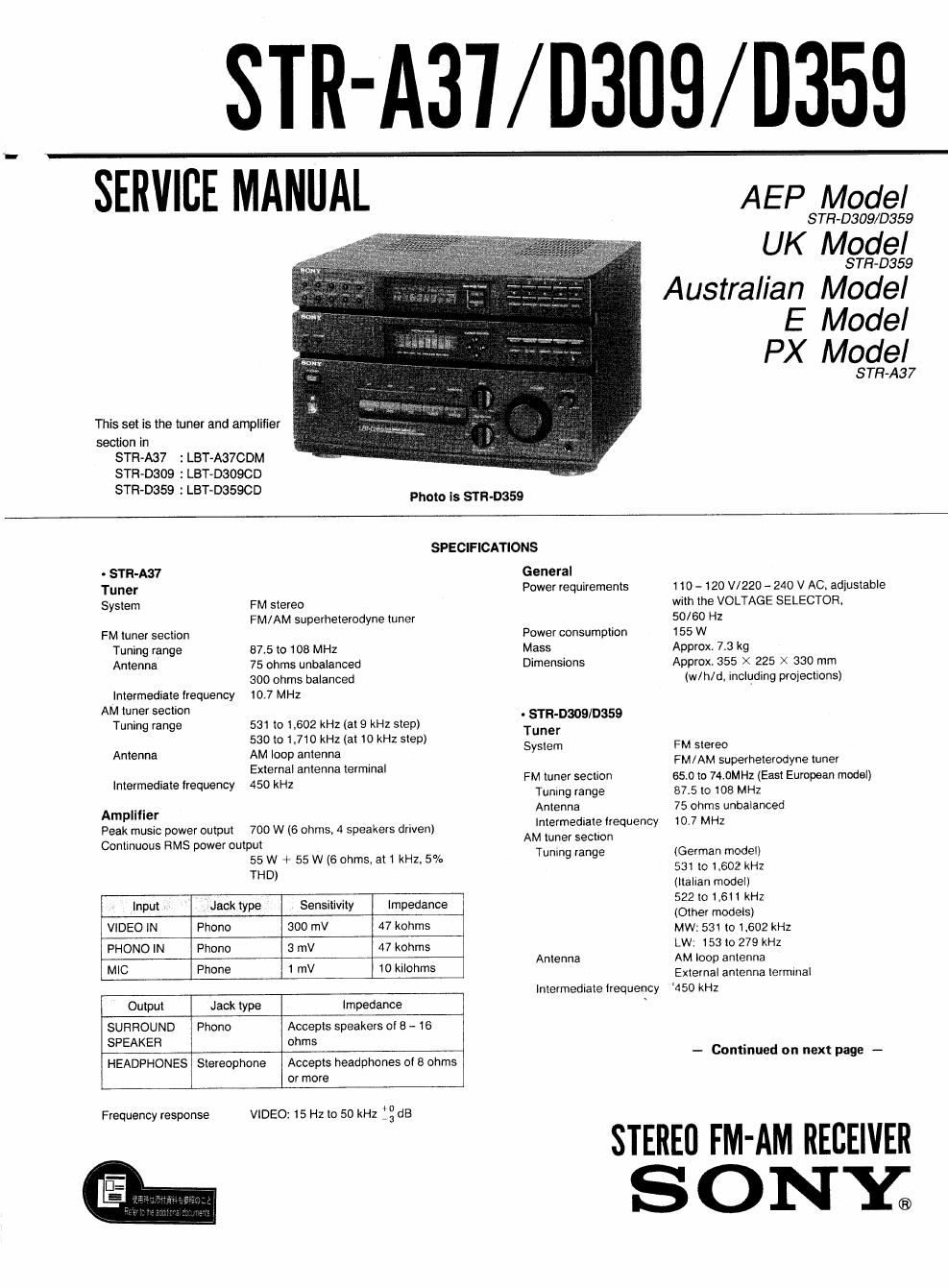

Page: 1 / 41
sony str d 309 service manual

Extracted text from sony str d 309 service manual (Ocr-read)


Page 2

Amplifier
DIN power output 50 W + 50 W (6 ohms. at 1 kHz)
COHIII'IUOUS RMS power output
60 W + 60W (6 ohms. at 1 kHz, 5%
THD)

Musrc power output 90 W + 90 W (6 ohms)

I input Jack type Sensitivtty Impedance

I VIDEO IN Phone 3 300 mV 1 47 kohms

I PHONO IN Phono i 3 mV I 47 kohms

I Output Jack type Impedance

I SURROUND i Phono 1 Accepts speakers of 16 ohms

I SPEAKER

HEADPHONES Stereophone Accepts headphones oi 8 ohms

2 or more

Frequency response VIDEO: 15 Hz to 50 kHz :2 dB

Power requtrements 220 - 230 V AC. 50/60 Hz

Power consumption 150 W
Mass Approx. 7.3 kg
Dimensions Approx. 355 x 225 X 330 mm

(w/h/d. Including pIOIeCIIOOS]

Note on Ceramic FIIter(CF301, A302, 303) Replacement.
(PANEL BOARD : D609, D610)

This set employs two ceramic filters (CF301, A302. 303) which
should have the same color marking to identify their center
frequency therefore FM IF offset adjustment by (*A. *3)
connection is necessary to match the center frequency of the
ceramic filters used with FM intermediate frequency.

color marking

,(
(CF301. 302. 303)

ACF302 : G, IT model

O:short
X :open
Ceramic litter Connection FM intermediate
Color Center frequency *A *5 frequency
mark (MHz) (D610) (1)599) (MHZ)
White 10750 X 0 10.750
Red 10.700 X X 10.700
Black 10.650 0 x 10.650
MODEL IDENTIFICATION

-- Model Number Portion -- STR-A37, D309. D359

S ONY; MODEL NO.
FM STEREO/FM-AM RECEIVER

AC://

AEP, GY IT, EE, CIS Model: 220-230V~50/60Hz 150W
UK Model: 240V~50Hz
E, AUS, PX Model: 1 10-120V/220-240V~50/60H2155W

Note:

G model : Germany model

IT model : Italian model

EE model : East European model

AUS model : Australian model

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB»
LISHED BY SONY.

i2,
