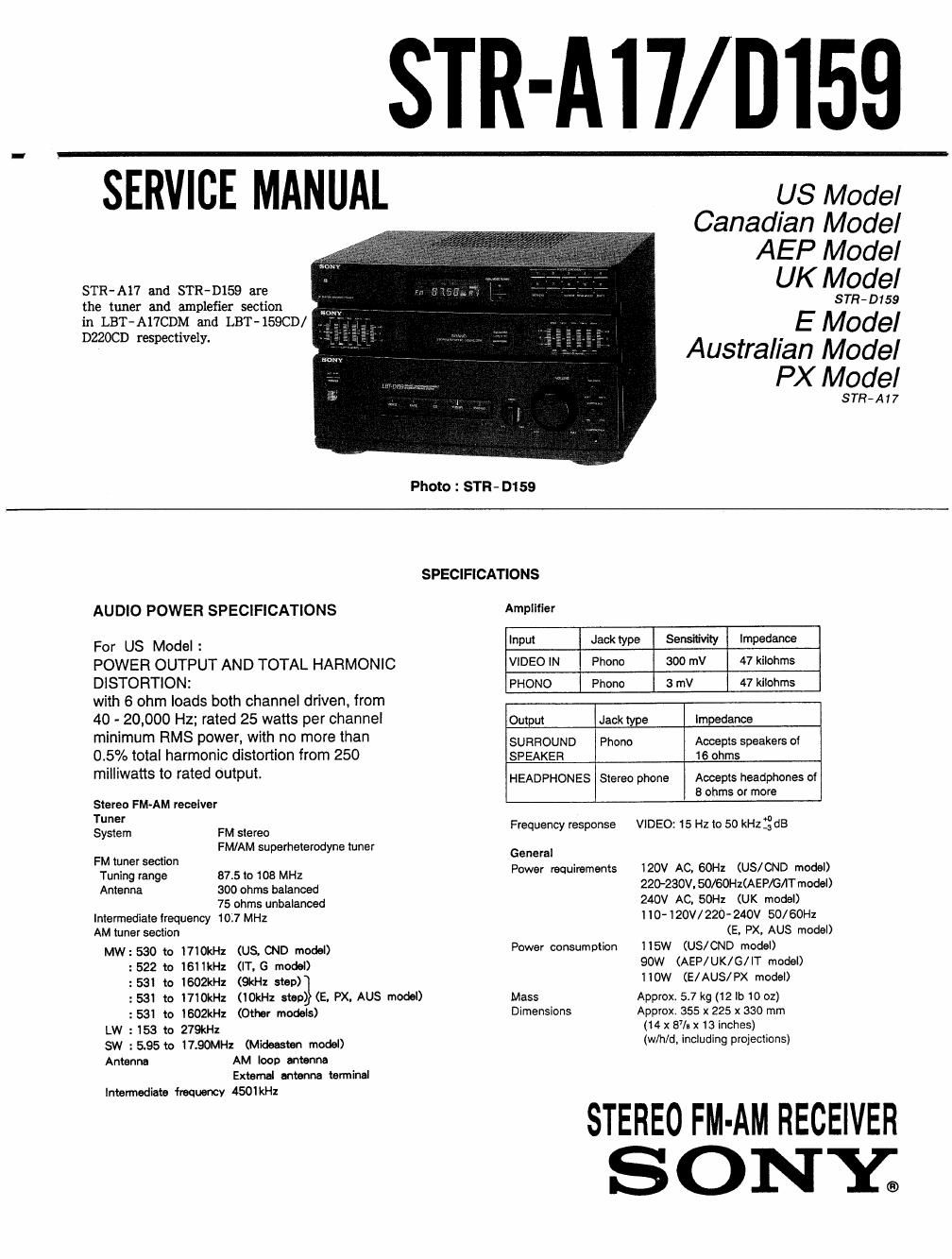

STR-All/ D159
§ERVICE MANUAL
STR-Al? and STR-D159 are
the tuner and amplefiex section
in LBT-A17CDM and LET-159CD/
DZZOCD respectively.
Photo : STR » D1 59
US Model
Canadian Model
AEP Model
UK Model
E M02151
Australian Model
PX Model
STR-Al7
AUDIO POWER SPECIFICATIONS
For US Model :
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
with 6 ohm loads both channel driven, from
40 - 20,000 Hz; rated 25 watts per channel
minimum HMS power, with no more than
0.5% total harmonic distortion from 250
milliwatts to rated output.
Stereo FM-AM receiver
Tuner
System FM stereo
FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 to 105 MHz
Antenna 300 ohms balanced
75 ohms unbalanced
Intermediate trequency 1017 MHz
AM tuner section
MW:530 to I710kH'z
:522 to IGIlkHz
:53l to 1602kHz
:531 to 17IOkHz
:531 to 1602kHz
LW : 153 to 279kHz
SW :5.95 to ILQOMHz (Mideaeten model)
Antenna AM loop antenna
External antenna terminal
lntermediate frequency 4501M:
(US. 010 model)
(IT. G model)
(9kHz step)
(IOkHz step) (E. PX. AUS model)
(Other models)
SPECIFICATIONS
Amplifier
Input Jack type Sensitivity Impedance
VIDEO IN Phone 300 mV 47 kilohms
PHONO Phone 3 rnV 47 kilohms
Output Jack type Impedance
SURROUND Phono Accepts speakers 01
SPEAKER 16 ohms
HEADPHONES Stereo phone Accepts headphones of
3 ohms or more
Frequency response VIDEO: 15 Hz to 50 kszdB
General
Power requirements
Power consumption
Mass
Dimensions
120V AC, 60H: (US/0ND model)
220-230V. 50/60Hz(AEP/G/leodeI)
240V AC, 50H: (UK model)
I 10 120V/220-240V 50/ 60H:
(E. PX. AUS model)
I 15W (US/(2ND model)
90W (AEP/UK/G/IT model)
110W (E/AUS/PX model)
Approx. 57 kg (12 lb 10 oz)
Approx 355 x 225 x 330 mm
(14 x av. x 13 inches)
(w/h/d, including projections)
STEREO FM-AM RECEIVER
SONE
