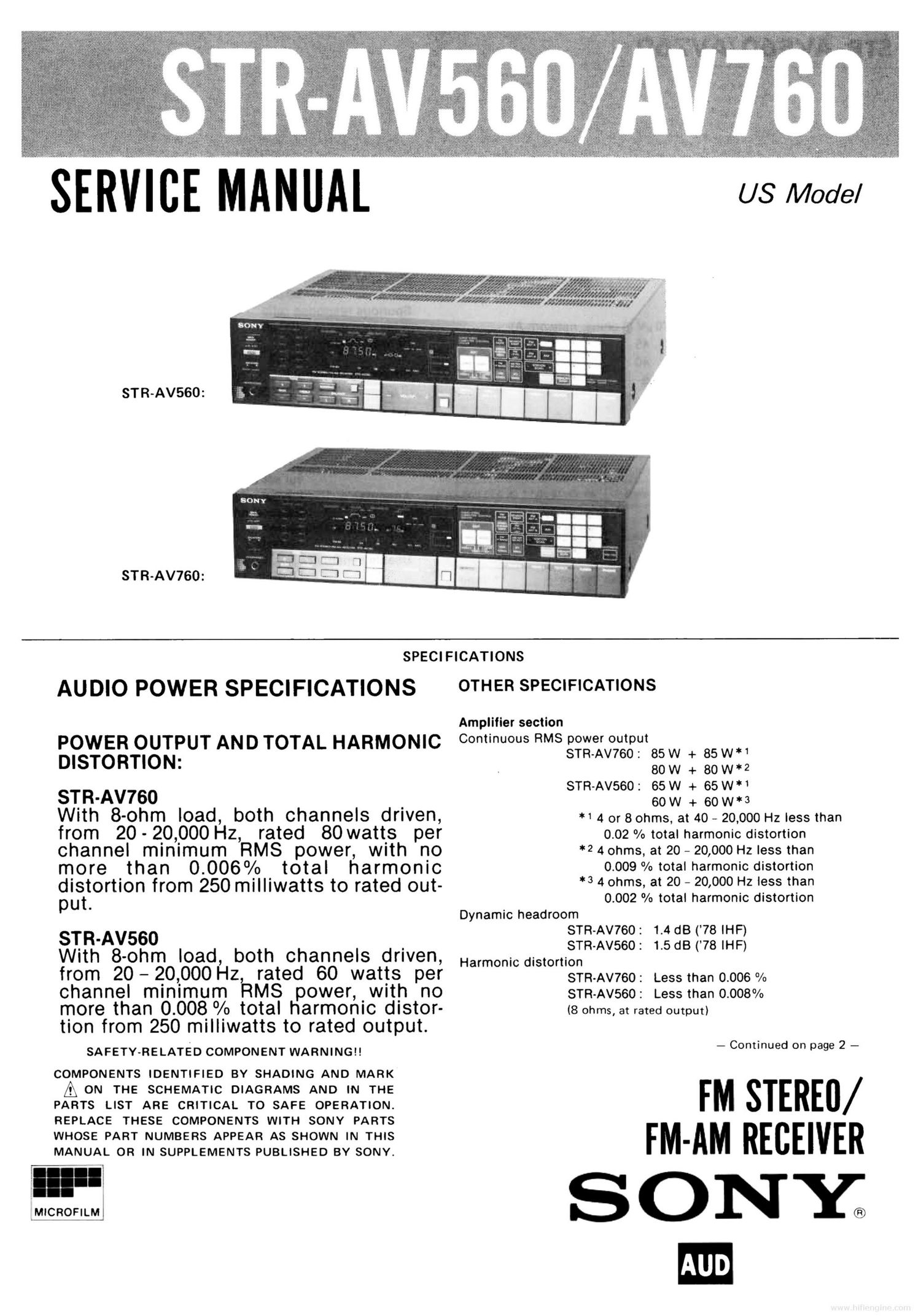

Page 1

wk! .., um

. vi .

. . - . , ~ -. -'-I:.~'.~.-$ met-3, web-3ft"; 3-. Ir:- "3 I - J

STR-AV560:

STR-AV760:

US Model

SPECIFICATIONS

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:

ST R-AV760

With 8-ohm load, both channels driven,
from 20-20,000Hz, rated 80watts per
channel minimum RMS power, with no
more than 0.006% total harmonic
disttortion from 250 milliwatts to rated out-
pu .

STR-AV560

With 8-ohm load, both channels driven,
from 20-20,000 Hz, rated 60 watts per
channel minimum RMS power, with no
more than 0.008 °/o total harmonic distor-
tion from 250 milliwatts to rated output.

SAFETY-RELATED COMPONENT WARNINGII

COMPONENTS IDENTIFIED BY SHADING AND MARK

& ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

MICROFILMI

OTHER SPECIFICATIONS

Amplifier section
Continuous RMS power output
STR-AV760: 85W + 85 WM
80 W + 80 W*?-
STR-AV560: 65W 4» 65W
60 W + 60 W"3
*1 4 or 8 ohms, at 40 - 20,000 Hz less than
0.02 % total harmonic distortion
*2 4 ohms, at 20 - 20,000 Hz less than
0.009 °/o total harmonic distortion
*3 4 ohms, at 20 - 20,000 Hz less than
0.002 °/o total harmonic distortion
Dynamic headroom
STR-AV760: 1.4 dB (78 IHF)
STR-AV560: 1.5 dB (78 lHF)
Harmonic distortion
STR-AV760: Less than 0.006 %
STR-AV560 : Less than 0.008%
(8 ohms, at rated output)

- Continued on page 2 -

EM STEREII/
EM-AM RECEIVER

ONY.
