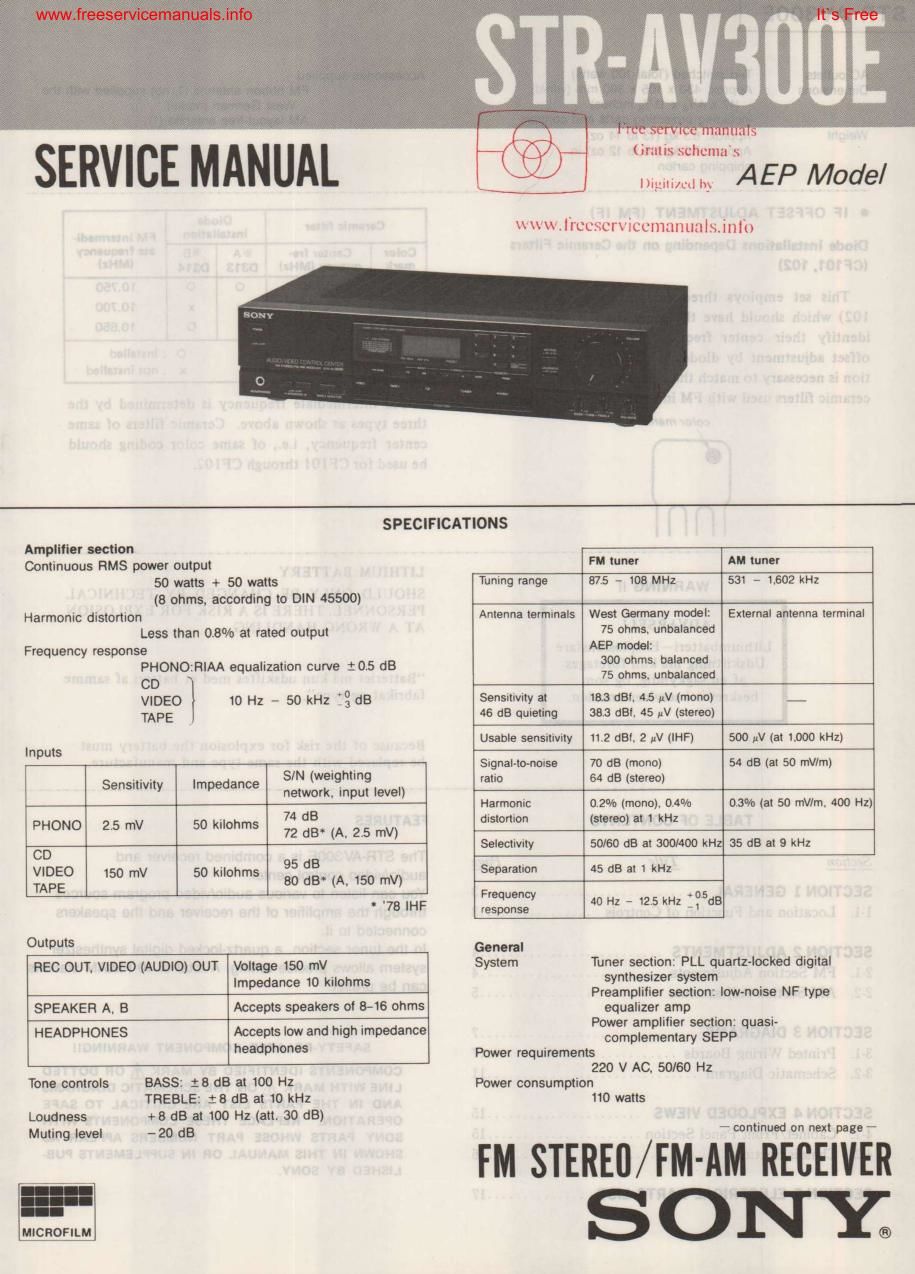

Sony str av 300e rec service manual

Page 2

STRANTPSOOEe

nuals.info

AC outlets
Dimensions

Two switched (Total 100 watts)

Approx. 430 x 105 x 300 mm (wlhld)
(17 x 4'14 x 117/8 inches)

including projecting parts and controls

Weight Approx. 6.3 kg (13 lb 14 oz)

Approx, 7.6 kg (16 lb 12 oz) in

shipping canon

0 IF OFFSET ADJUSTMENT (FM IFI
Diode Installations Depending on the Cor-mic Filters
(CF101, 102)

This set employs three ceramic filters (CFIOI,
102) which should have the same color marking to
identify their center frequency Therefore FM 1F
offset adjustment by diodes (D313,314) installa-
tion is necessary to match the center frequency of the
ceramic filters used with FM intermediate frequency.

color mark

fill

Its Free

Accessories supplied
FM ribbon antenna (1. not supplied with the
West German model)
AM layout-free antenna (1)

Ceramic filter infirm-ion FM intermedi-
Color Cantu Iro- ir A is B no "Nu-"EV
m-rk qunncv (MHz! 031: 0314 "VIN
White 10.750 0 0 10,750
and 10.700 x x 10.700
Black 10.650 x 0 10.650

0 1 installed
x : not installed

FM intermediate frequency is determined by the
three types as shown above. Ceramic filters of same
center frequency, i.e., of same color coding should
be used for CF10] through CFIO2.

WARNING !!

ADVARSEL!
Lithiumbatteri 7 Eksplosionsfare

Udskiftning m5 kun foretages
af en sagkyndig, og som
beskrevet i servicemanualen.

TABLE OF CONTENTS

Section Title flzgg
SECTION 1 GENERAL ................................ 3
1-1. Location and Function of Controls ,,,,,,,,,,,,,,,, 3
SECTION 2 ADJUSTMENTS .......................... 4
Z»l. FM Section Adjustments . ,.4
2-2. AM Section Adjustments .......................... 5
SECTION 3 DIAGRAMS .............................. 7
3-1. Printed Wiring Boards ............................ 7
3-2, Schematic Diagram ............................ 11
SECTION 4 EXPLODED VIEWS ...................... 15
4-1. Cabinet/Front Panel Section ...................... 15
4-2. Chassis Section ............................... 16
SECTION 5 ELECTRICAL PARTS LIST .............. 17

LITHIUM BATTERY

SHOULD ONLY BE CHANGED BY TECHNICAL
PERSONNEL. THERE IS A RISK FOR EXPLOSION
AT A WRONG HANDLING.

Batteriet m5 kun udskiftes med et batteri af samme
fabrikat 0g type".

Because of the risk for explosion the battery must
be replaced with the same type and manufacture.

FEATURES

The ST Ft-AVSOOE is a combined receiver and

audio/video control center.

You can listen to various audiolvideo program sources
through the amplifier of the receiver and the speakers
connected to it,

In the tuner section, a quartz-locked digital synthesizer
system allows precise tuning. A total of 10 FM/AM stations
can be preset.

SAFETY-RELATED COMPONENT WARNINGI!

COMPONENTS IDENTIFIED BV MARK & 0R DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
