Sony STR av 700 Owners Manual

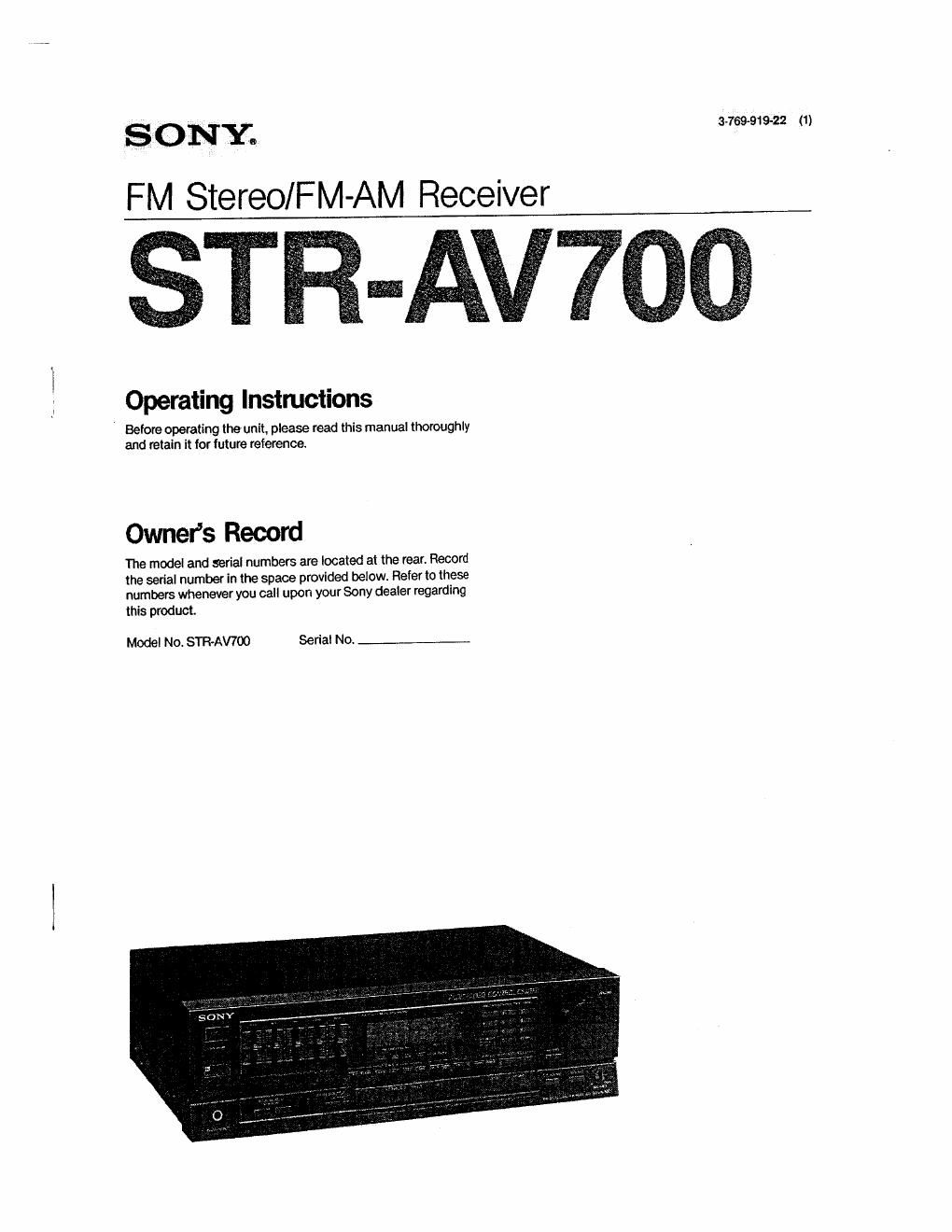

Page 1

3-769919-22 (1)

SONY.
FM Stereo/FM-AM Receiver

Operating Instructions

Before operating the unit. please read this manual thoroughly

and retain it for future reference.

Owners Record

The model and serial numbers are located at the rear. Record
the serial number in the space provided below. Refer to these
numbers whenever you call upon your Sony dealer regarding
thls product.

Model No. STRAWOO Serial No

Page 2

Warning .I

To prevent fire or shock hazard, do not
expose the unit to rain or moisture.

RlSK DF ELECTRIC SHOCK
DO NOI OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHoch

DO NOT REMOVE COVER (OR BACK).

N0 USERSERVICEAELE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to
the presence of uninsulated dangerous
voltage" within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.

This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.

For the customers in Canada

- CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.

- Note to CATV system installer.

This reminder is provided to call the CATV system
installers attention to Article 8202 of the NEC that
provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building, as
close to the point of cable entry as practical.

Features . ,

The $TR~AV7OO is a combined receiver and audio/video
controls in. The unit allows you to switch easily between a
variety of audiolvideo programs.

TVMdeo programs

0 TV programs can be enjoyed using the FM simulcast.

- Various audio program sources can be added on a video
tape during tape editing.

Tuner

. Precise tuning with the quartz-locked digital synthesizer

. system.

I All of the receivable FMIAM stations can be automatically
preset for easy automatic tuning later.

0 The 4 music indexes allow you to classify stations as you
preset them for easy access later.

General

' The tone can be adjusted using the sham graphic
equalizer.

- The supplied remote commander allows you to control the
connected equipment, as well as receiver, from a distance

0 The surround sound system gives audio programs an
alive" feeling.

:iPrecautionS; a} ,

On safety

- Operate the unit only on 120 V AC, 60 Hz.

- Should any solid object or liquid fall into the cabinet,
unplug the unit and have it checked by qualified personnel
before operating it any further.

Unplug the unit from the wall outlet if it is not to be used for
an extended period of time. To disconnect the cord, pull it
out by grasping the plug. Never pull the cord itself.

0 One blade of the plug is wider than the other for the
purpose of safety and will fit into the power outlet only one
way. it you are unable to insert the plug fully into the outlet,
contact your dealer.

On operation

0 Before making program source connections, be sure to
turn the power switch off and unplug the unit.

0 When the unit is not used, turn the poweroff, to conserve
energy and to extend the useful life of your unit.

On cleaning the cabinet

Clean the cabinet, panel and controls with a soft cloth lightly
moistened with mild detergent solution. Do not use any type
of abrasive pad, scouring powder, or solvent such as alcohol
or benzine.

For the customers in the United States
For detailed safety precautions, see the "IMPORTANT
SAFEGUARDS leaflet.

it you have any question or problem conceming your unit,
please consult your nearest Sony dealer.
