Sony STR AV 270X Owners Manual

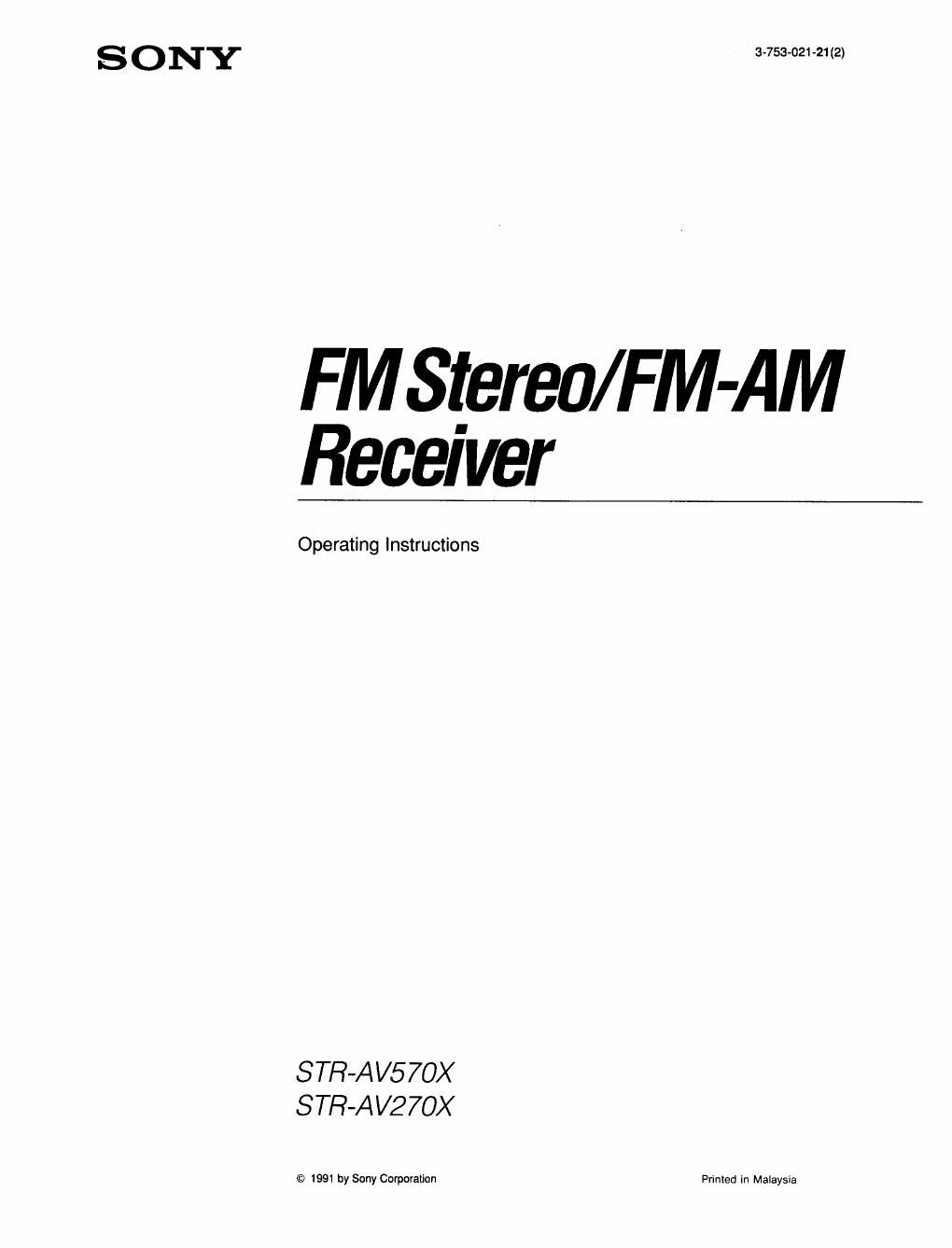

Page 1

S 0 NY 3-753-021 -21 (2)

FM Sierea/FM-AM
Receiver

Operating Instructions

8 TH-A V5 70X
8 TH-A V2 7 0X

Primed in Malaysia

Page 2

Connections

System Connections

Before connection. be sure to set the POWER switch to OFF.
S eaker 8 Stem
FM antenna Record player 9 Y
W ' i
AM antenna ____i to a wall outlet Right Left
l Receiver
.- m
<@
I I i
I I r j
CD player I l Tape deck VCR
(it
6 H (A A
t t t t t
LINE to a wall outlet LINE IN LINE to a wall outlet AUDIO AUDIO to a wall outlet
OUT OUT LINE IN LINE OUT

Notes on system connection

0 The red iacks oi the receiver are for right-channel (R)
connections and the white jacks for left»channel (L).

o The cable connectors should be fully inserted into the jacks.
A loose connection may cause hum and noise.

Connecting FM Antenna

For normal use For higher quality sound

75-ohm coaxial cable
(optional)

Supplied loop
antenna

Adjust the
direction.

Note on power source connection

n The plug of the AC power cord can only be inserted into a
polarized AC outlet.

Do not connect an electrical home appliance such as an
electric iron. ran, TV. or other high-wattage equipment
exceeding 120 watts in total power consumption to the AC
OUTLET on the receiver.

Connecti Antenna Ground

To prevent hum. connect the ground wire to ANTENNA
ground terminal (777). When an outdoor antenna is
installed, be sure to connect the ground wire for
lightning protection.

Connecting Speakers

Left Speaker

(is?!

Right Speaker

iii!

Speaker impedance and power capability
Use only the speakers having nominal impedance from 8 to 16
ohms. and adequate power handling capability.

Note

As the speakers A and B are connected in series. the sound
volume will be slightly decreased with both of the SPEAKERS
selectors depressed.
