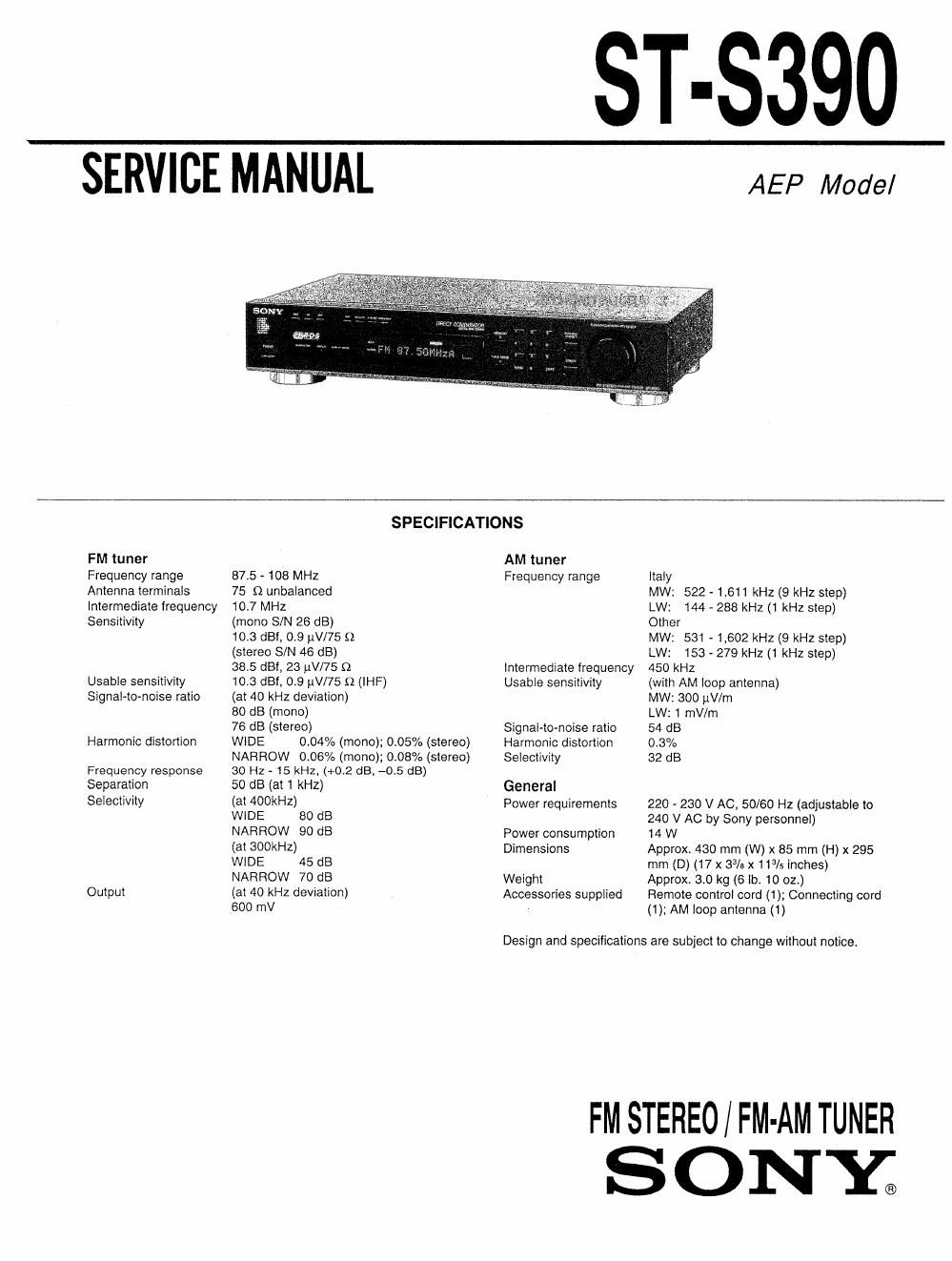

Sony st s 390 tun
This is the 18 pages manual for sony st s 390 tun.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony st s 390 tun (Ocr-read)
Page 2
ST-S390
TABLE OF CONTENTS
Section Title Page
Specification .............................................................. 1
1, GENERAL ............................................................ 3
2. ADJUSTMENTS .................................................. 4
3. DIAGRAMS
3-1. Block Diagram ----------
3-2. Printed Wiring Boards
3-3. Schematic Diagram
3-4. PM Front-end -----
...7
'11
. 13
~16
3-5. IC Block Diagrams" l7
4. EXPLODED VlEW-~- .. 19
5. ELECTRICAL PARTS LIST ................................... 20
SAFETY-RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A 0R DOTTED
LINE WITH MARK & ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
