Extracted text from Sony ST J75 Service Manual (Ocr-read)

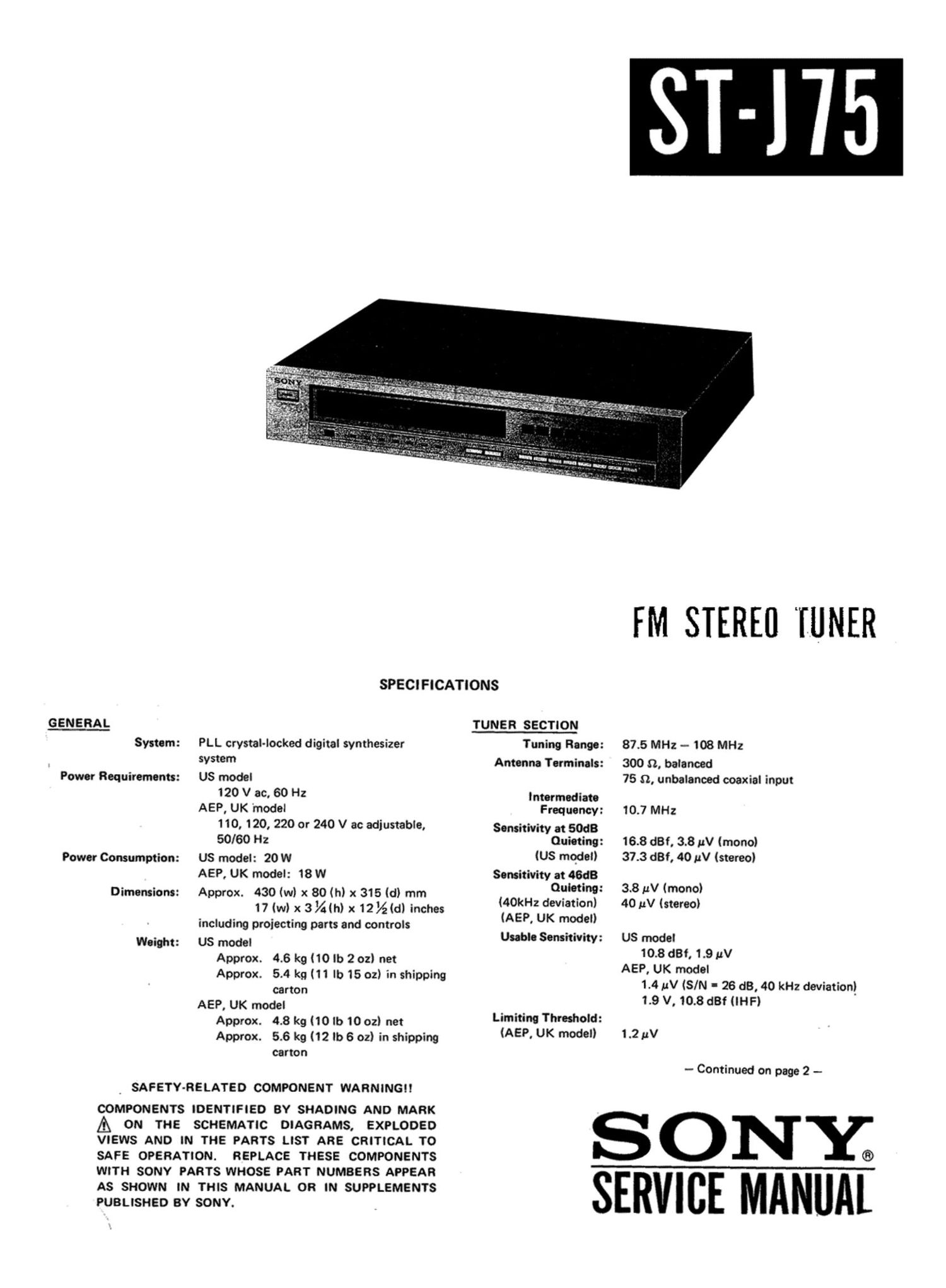

Page 1
GENERAL
System:
Power Requirements:
Power Consumption:
Dimensions:
Weight:
SPECIFICATIONS
PLL crystal-locked digital synthesizer
system
US model
120 V ac, 60 Hz
AEP, UK model
110, 120, 220 or 240 V ac adjustable,
50/60 Hz
US model: 20W
AEP, UK model: 18 W
Approx. 430 (w) x 80 (h) x 315 (d) mm
17 (w) x 3%(h)x12'/2(d) inches
including projecting parts and controls
US model
Approx. 4.6 kg (10 lb 2 02) net
Approx. 5.4 kg (11 lb 15 oz) in shipping
carton
AEP, UK model
Approx. 4.8 kg (10 lb 10 02) net
Approx. 5.6 kg (12 lb 6 oz) in shipping
carton
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION.
REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR
AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
w
Tuning Range:
Antenna Terminals:
Intermediate
Frequency:
Sensitivity at 50d8
Ouieting:
(US model)
Sensitivity at 46:13
Ouieting:
(40kH2 deviation)
(AEP, UK model)
Usable Sensitivity:
Limiting Threshold:
(AEP, UK model)
FM STEREO TUNER
87.5 MHz - 108 MHz
300 a, balanced
75 n, unbalanced coaxial input
10.7 MHZ
16.8 dBf, 3.8 uV (mono)
37.3 dBf, 40 uV (stereo)
3.8 V (mono)
4O nV (stereo)
US model
10.8 dBf, 1.9 11V
AEP, UK model
1.4 uV (S/N - 26 d8, 40 kHz deviation)
1.9 v, 10.8 dBfllHF)
1.2uV
- Continued on page 2 -
SONY.
SERVICE MANUAL
