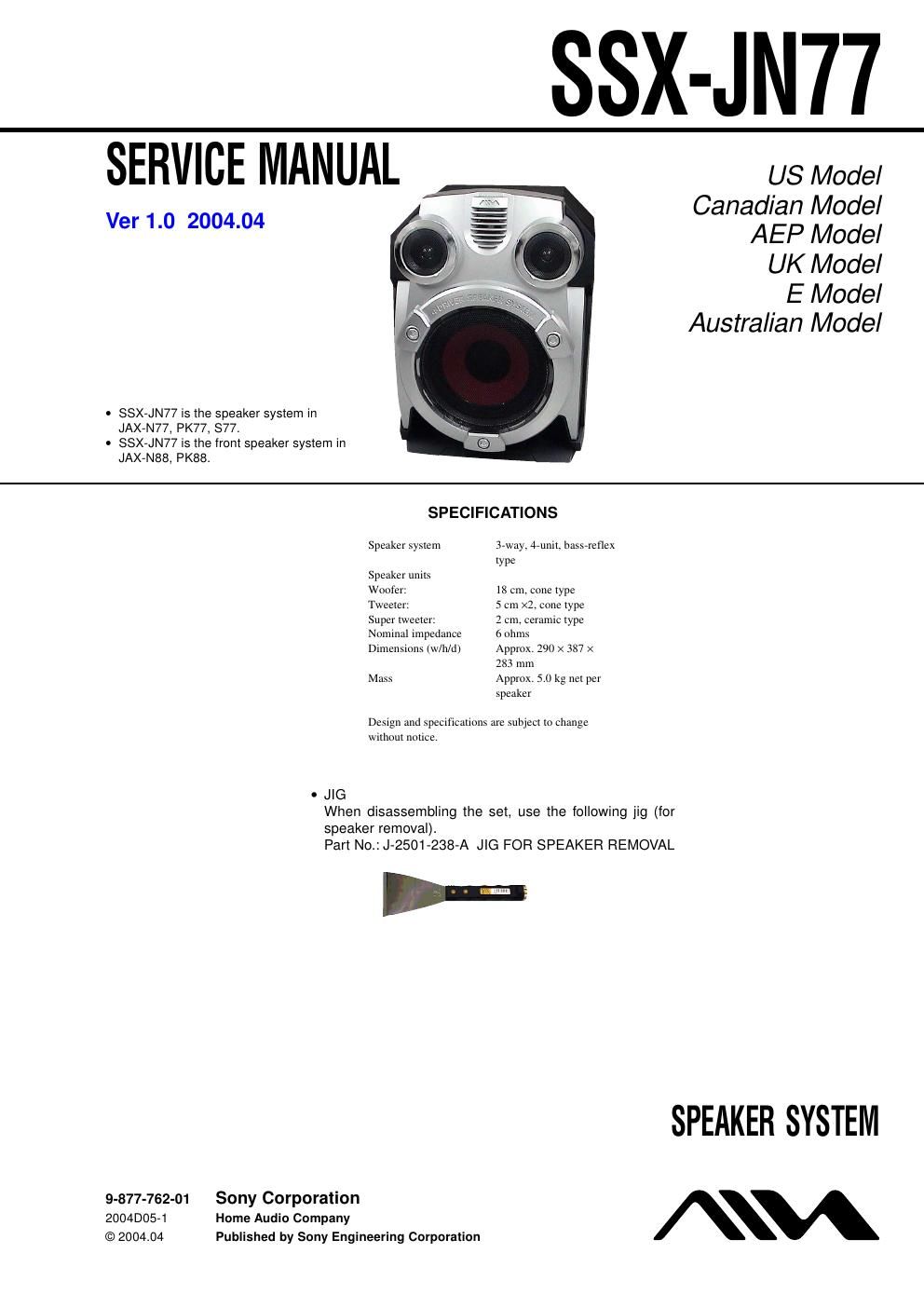

SSX-JN77 2 EXPLODED VIEW -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. -The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: --XX and -X mean standardized parts, so they may have some difference from the original one. -Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1A-1060-315-A SYSTEM ASSY 24-874-614-02 SCREW (1) (3.5X14), TAPPING 34-254-253-01 FOOT (REAR) 44-229-966-12 SCREW (4X16), +BV TAPPING54-254-252-01 FOOT (FRONT) SP1 1-825-852-11 SPEAKER (5cm) SP2 1-825-852-11 SPEAKER (5cm) SP3 1-825-851-11 SPEAKER (18cm) 1 2 2 3 4 4 5 not suppliednot supplied SP1 SP2 SP3
Page 2
SSX-JN77 3 MEMO
