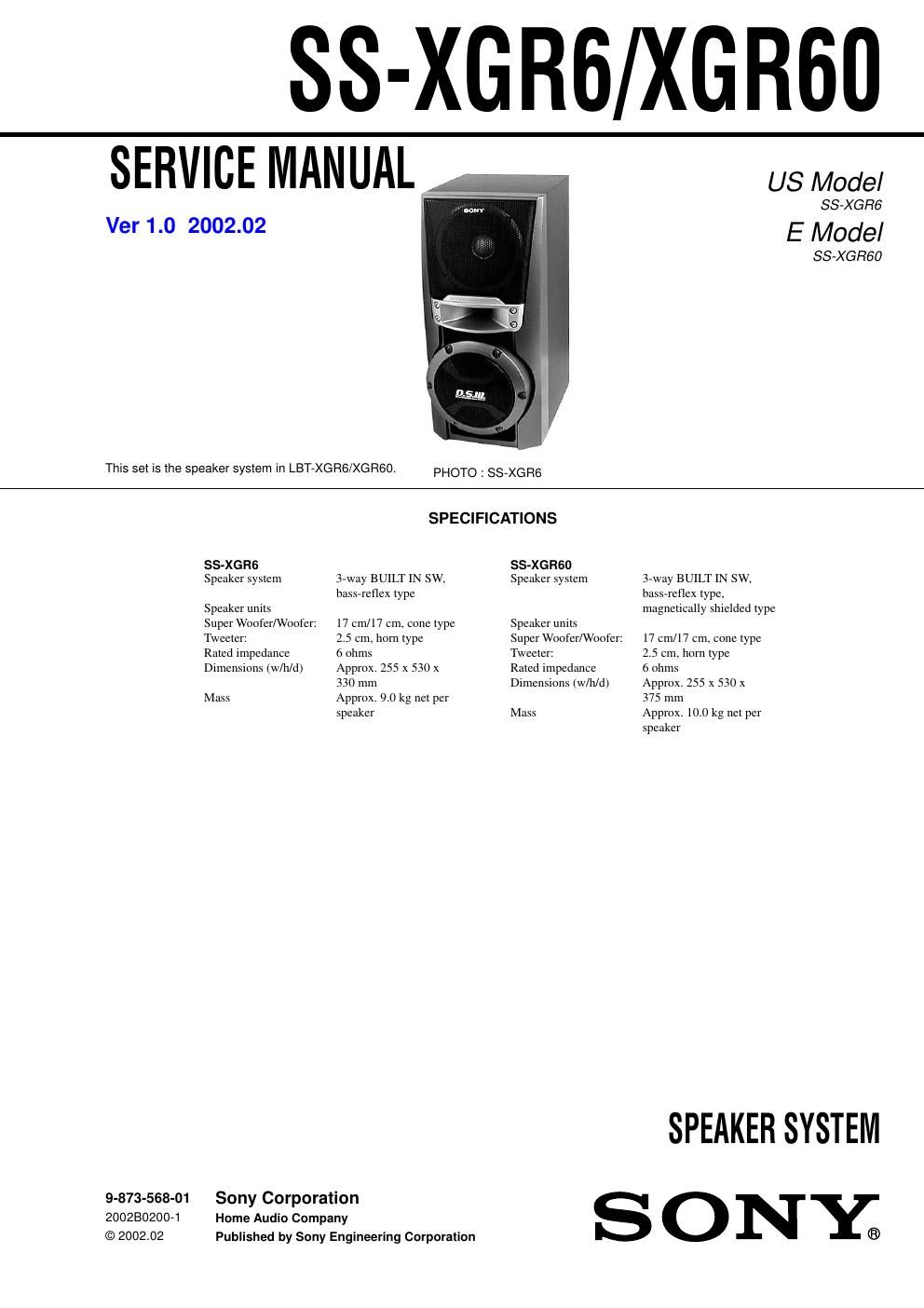

Sony ss xgr 60 service manual
This is the 4 pages manual for sony ss xgr 60 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss xgr 60 service manual (Ocr-read)
Page 1
2 SS-XGR6/XGR60 NOTE: - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark 5 4 3 6 3 2 1 #1 #1 SP3 SP2SP1 not suppliednot supplied 1 4-999-101-01 SCREW, HEXAGON HOLE TAPPING 2 4-238-050-01 HORN, TW 3 4-874-614-31 SCREW (1) (3.5X12), TAPPING 4 4-227-036-01 BRACKET 5 4-942-029-01 PACKING 6 X-4954-396-1 PANEL ASSY, FRONT SP1 1-529-957-11 SPEAKER (16cm) (XGR60) SP1 1-529-959-11 SPEAKER (16cm) (XGR6) SP2 1-825-109-11 SPEAKER (2.5cm) SP3 1-529-611-11 SPEAKER (16cm) (XGR60)SP3 1-529-657-11 SPEAKER (16cm) (XGR6) #1 7-685-661-19 SCREW +BVTP 4X12 TYPE2 N-S ****************************************************** ACCESSORIES*********** 1-775-512-21 CORD, SPEAKER CONNECTION (1.5m) 4-210-254-02 CUSHION (FOOT)
Page 2
3 SS-XGR6/XGR60 MEMO
