Sony ss xb 8 w service manual
This is the 4 pages manual for sony ss xb 8 w service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss xb 8 w service manual (Ocr-read)

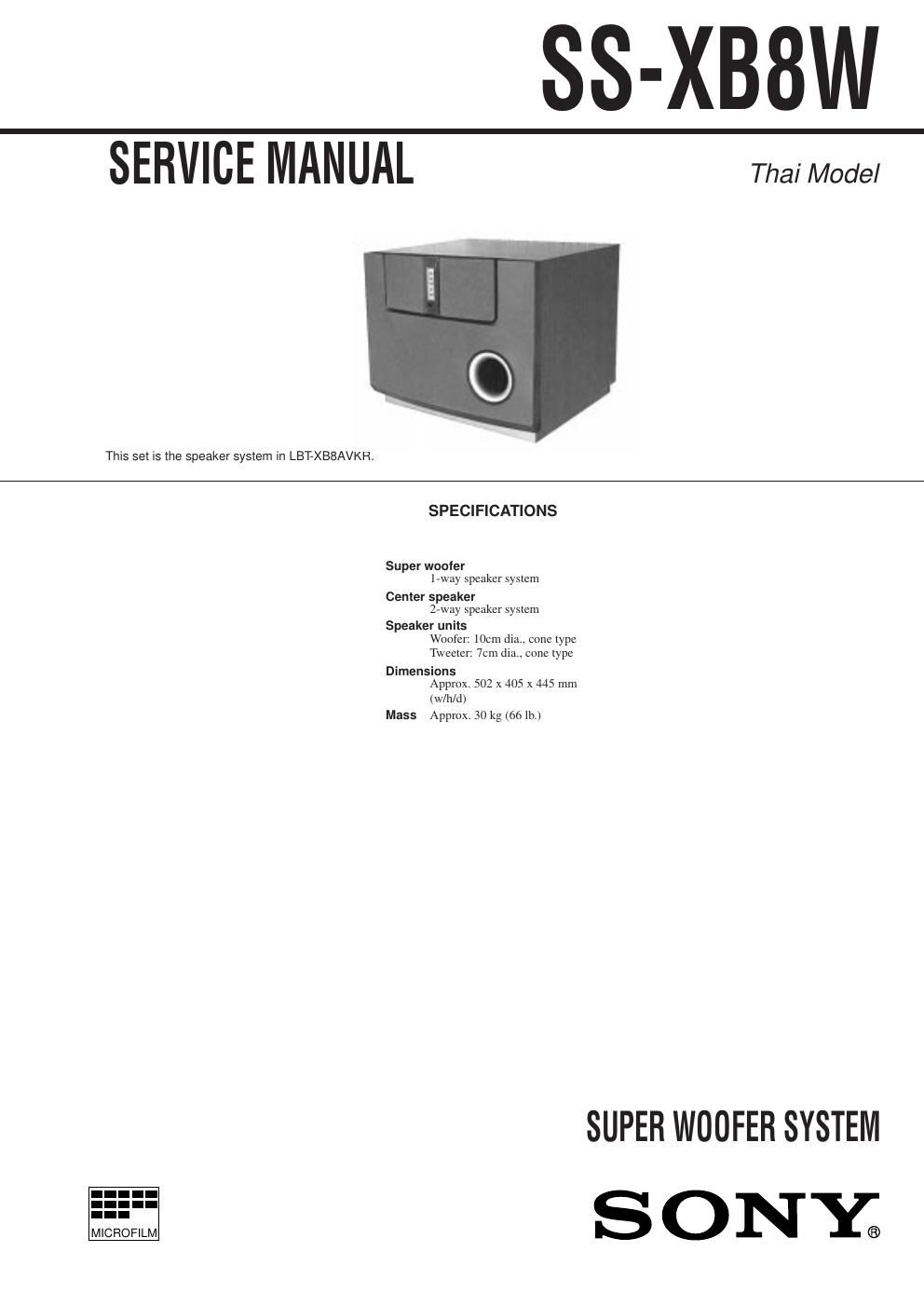

Page 1
Page 2
Ð 3 Ð 2 13 SP2SP1 SP3 3 3 3 11 56 73 10 10 10 TM002 TM001 8 4 9 not supplied SECTION 2 EXPLODED VIEW NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 10 7-621-846-85 SCREW, WOOD +R4.1x38 *11 X-4949-502-1 CABINET ASSY, WOOFER SP1 1-504-515-11 SPEAKER (20cm) SP2 1-505-342-11 SPEAKER (10cm) SP3 1-503-929-21 SPEAKER (7cm) TM001 1-537-332-11 TERMINAL BOARD (SUPER WOOFER) TM002 1-537-332-11 TERMINAL BOARD (TWEETER) 1 4-962-838-01 COVER(A), DUCT 2 X-4949-503-1 FRAME ASSY, GRILL 3 7-685-663-79 SCREW +P4x16 TYPE4 4 4-997-470-01 PANEL, DISPLAY 5 X-4949-653-1 PANEL ASSY, FRONT *6 1-668-983-11 SUPER WOOFER LED BOARD 7 4-951-620-01 SCREW (2.6x8), +BVTP *8 3-346-265-31 HOLDER, PC BOARD 9 4-948-272-11 BUTTON(EQ)
