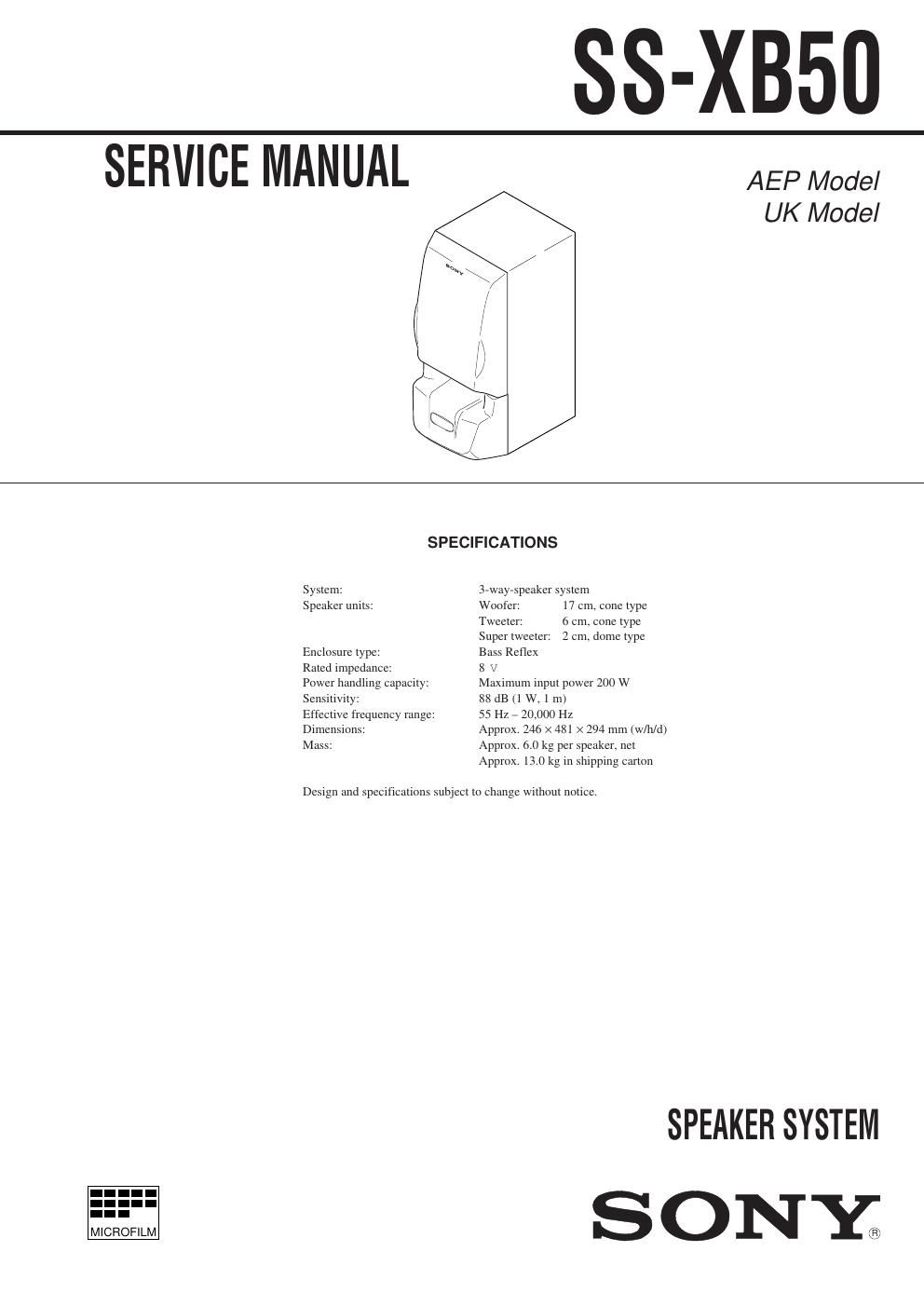

SS-XB50
Ñ 2 Ñ
Sony Corporation
Home A&V Products Company
98F7549-1
Printed in Germany © 1998. 6
Published by Quality Assurance Dept.
(Shibaura)
9-922-893-11
1. EXPLODED VIEW AND PARTS LIST
NOTE:
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-998-382-01 FRONT PANEL
* 2 X-4949-596-1 FRAME ASSY, GRILLE
3 4-960-363-01 SCREW + P 3.5 x 16
* 4 4-998-386-01 CABINET SPEAKER
* 5 4-998-384-01 DUCT
6 4-998-387-01 PACKING
7 1-783-657-11 CORD
8 4-998-385-01 COSMETIC PLATE
9 X-4949-816-1 SPEAKER (3WAY) A'SSY
¥Items marked Ò*Ó are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items. ¥The mechanical parts with no reference
number in the exploded views are not
supplied.
