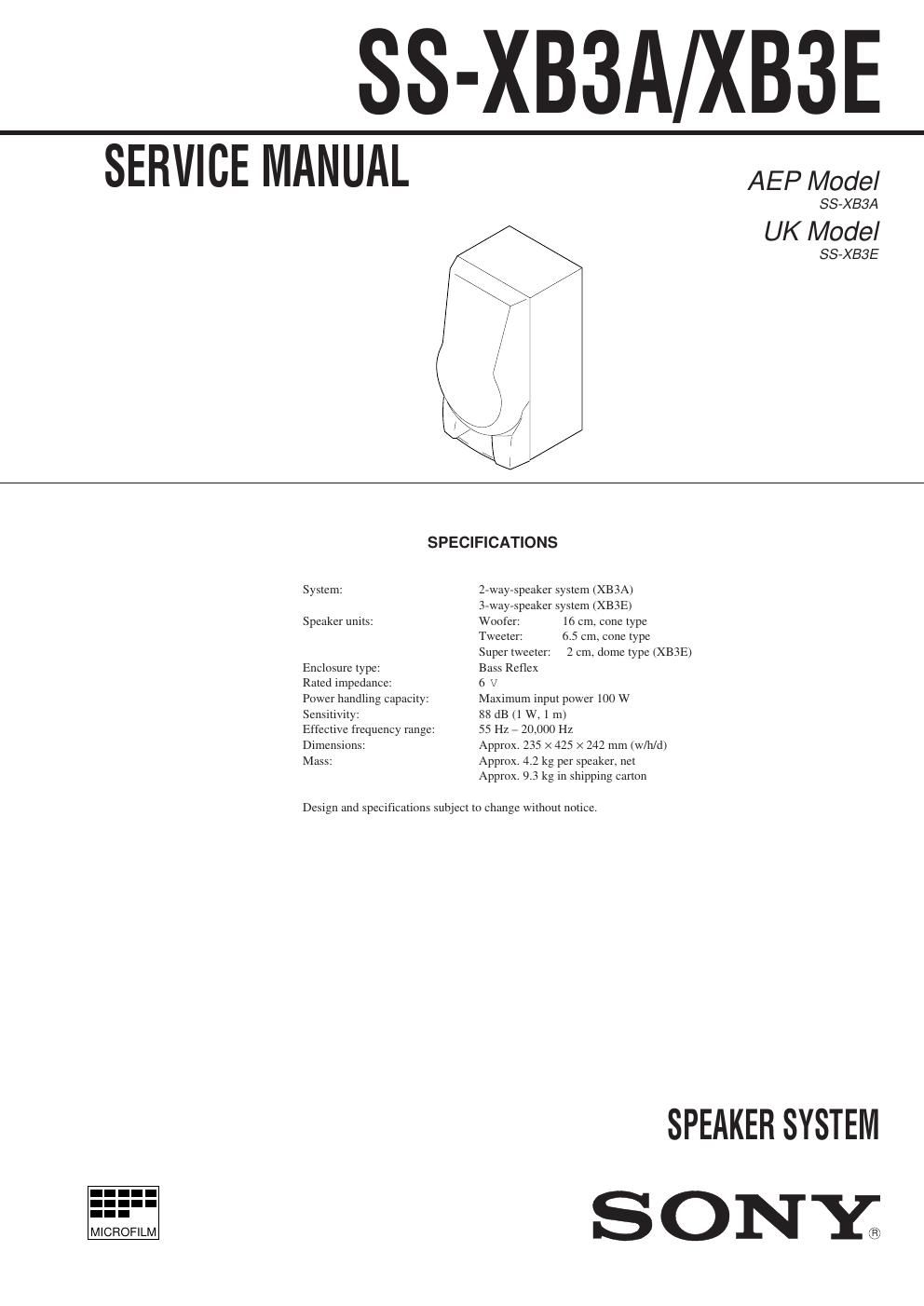

SS-XB3A/XB3E Ñ 2 Ñ Sony Corporation Home A&V Products Company 97K7554-1 Printed in Germany © 1997. 11 Published by General Engineering Dept. (Shibaura) 9-922-740-11 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-859-645-01 INSTRUCTION MANUAL (XB3A) (ENGLISH,FRENCH,SPANISH,PORTUGUESE ,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH ,FINNISH,RUSSIAN,POLISH,CZECH ,HUNGARIAN,GREEK,TURKISH) 3-859-998-11 INSTRUCTION MANUAL (XB3E) (ENGLISH,FRENCH,SPANISH,PORTUGUESE ,GERMAN,DUTCH,ITALIAN,SWEDISH,DANISH ,FINNISH,RUSSIAN,POLISH,CZECH ,HUNGARIAN,GREEK,TURKISH) 1 X-4948-424-1 GRILLE FRAME ASSY 2 4-960-363-01 SCREW P 3.5 X 16 3 X-4947-085-1 SPEAKER (2 WAY) ASSY (XB3A) 3 X-4947-086-1 SPEAKER (3 WAY) ASSY (XB3E) 4 4-990-494-01 SPEAKER CABINET 5 4-990-487-01 DUCT 1 23 2 54 not supplied
