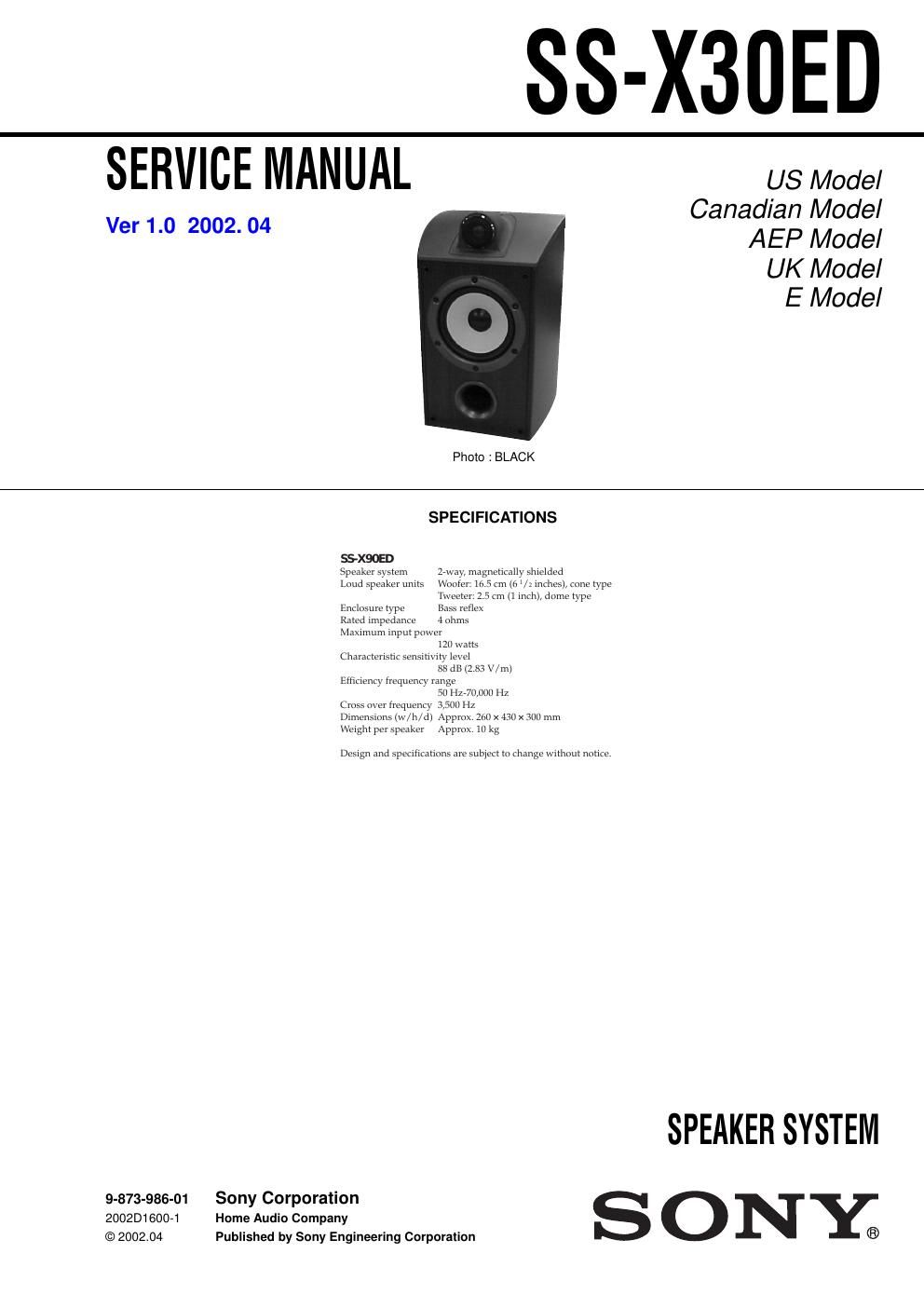

Sony ss x 30 ed service manual
This is the 4 pages manual for sony ss x 30 ed service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss x 30 ed service manual (Ocr-read)
Page 1
2 SS-X30ED EXPLODED VIEW AND PARTS LIST NOTE: -Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks #1 1 5 6 #3 9 8 2 3 4 7 not supplied SP1 not supplied #2 1X-4954-911-1 FRAME ASSY, GRILLE (MAPLE) 1 X-4954-915-1 FRAME ASSY, GRILLE (BLACK) 2 4-210-830-01 CATCHER 3 X-4954-901-1 COVER ASSY, TW (BLACK) 3 X-4954-910-1 COVER ASSY (M), TW (MAPLE) 4 4-949-384-11 EMBLEM (NO.6), SONY 5 1-694-890-11 TERMINAL BOARD 6 4-874-614-11 SCREW +BVTP 3.5X14 7 4-238-926-01 BOLT,HEXAGON SOCKET 8 4-237-380-01 RING, ORNAMENTAL 9 MOUNTED PC BOARD SP1 1-825-149-11 SPEAKER (16cm) #1 7-683-420-04 BOLT,HEXAGON SOCKET 4X10 #2 7-682-148-01 SCREW +P 3X8 #3 7-685-647-21 SCREW +BVTP 3X10 TYPE2 SLIT ************************************************************ ACCESSORIES ************ 4-240-571-11 MANUAL,INSTRUCTION (ENGLISH,FRENCH, SPANISH,PORTUGUESE,CHINESE)(EXCEPT AEP) 4-240-571-21 MANUAL,INSTRUCTION (ENGLISH,FRENCH, GERMAN,SPANISH,DUTCH,SWEDISH,ITALIAN,PORTUGUESE,SLOVAK,POLISH,RUSSIAN,GREEK,FINNISH,DANISH,CZECH)(AEP)
Page 2
SS-X30ED MEMO
