Extracted text from sony ss wt 503 service manual (Ocr-read)

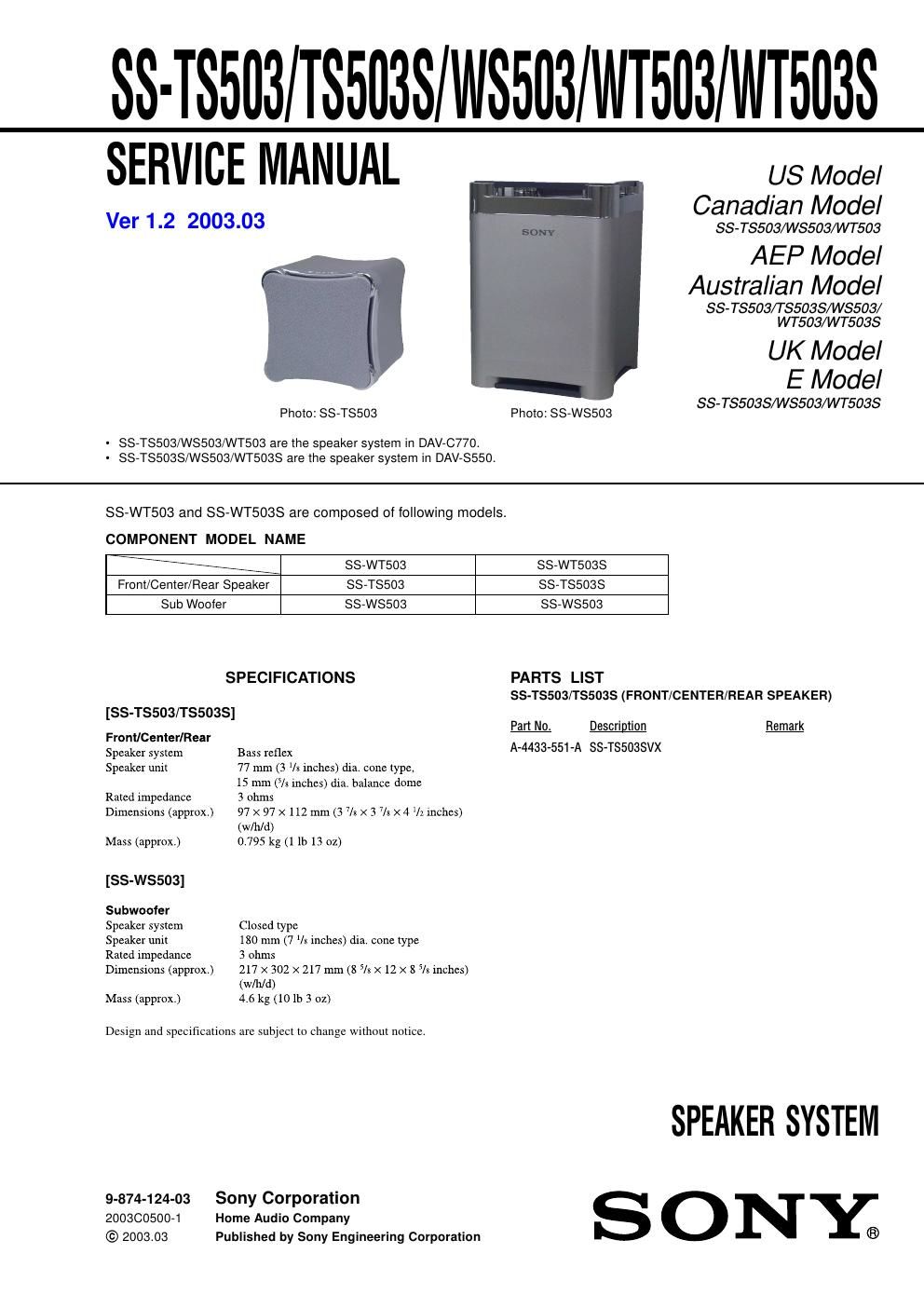

Page 1
2 SS-TS503/TS503S/WS503/WT503/WT503S SS-WS503 (SUB WOOFER) EXPLODED VIEWS -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4954-953-1 COVER SUB ASSY 2 4-240-651-01 PANEL, TOP 3 4-241-456-01 SCREW (4X20) (+B) (BZN), WOOD 4 A-4746-947-A SUB WOOFER SPK ASSY 5 4-240-650-01 PANEL, BOTTOM 6 X-4954-952-1 BASE SUB ASSY 7 4-240-669-01 FOOT 8 4-243-372-01 SCREW (3.5X10) (+B) (BZN) 1 2 3 5 6 7 7 8 3 not supplied 4 not supplied V er 1.2
Page 2
3 SS-TS503/TS503S/WS503/WT503/WT503S MEMO
