Sony ss ws 10 service manual
This is the 6 pages manual for sony ss ws 10 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss ws 10 service manual (Ocr-read)
Page 1

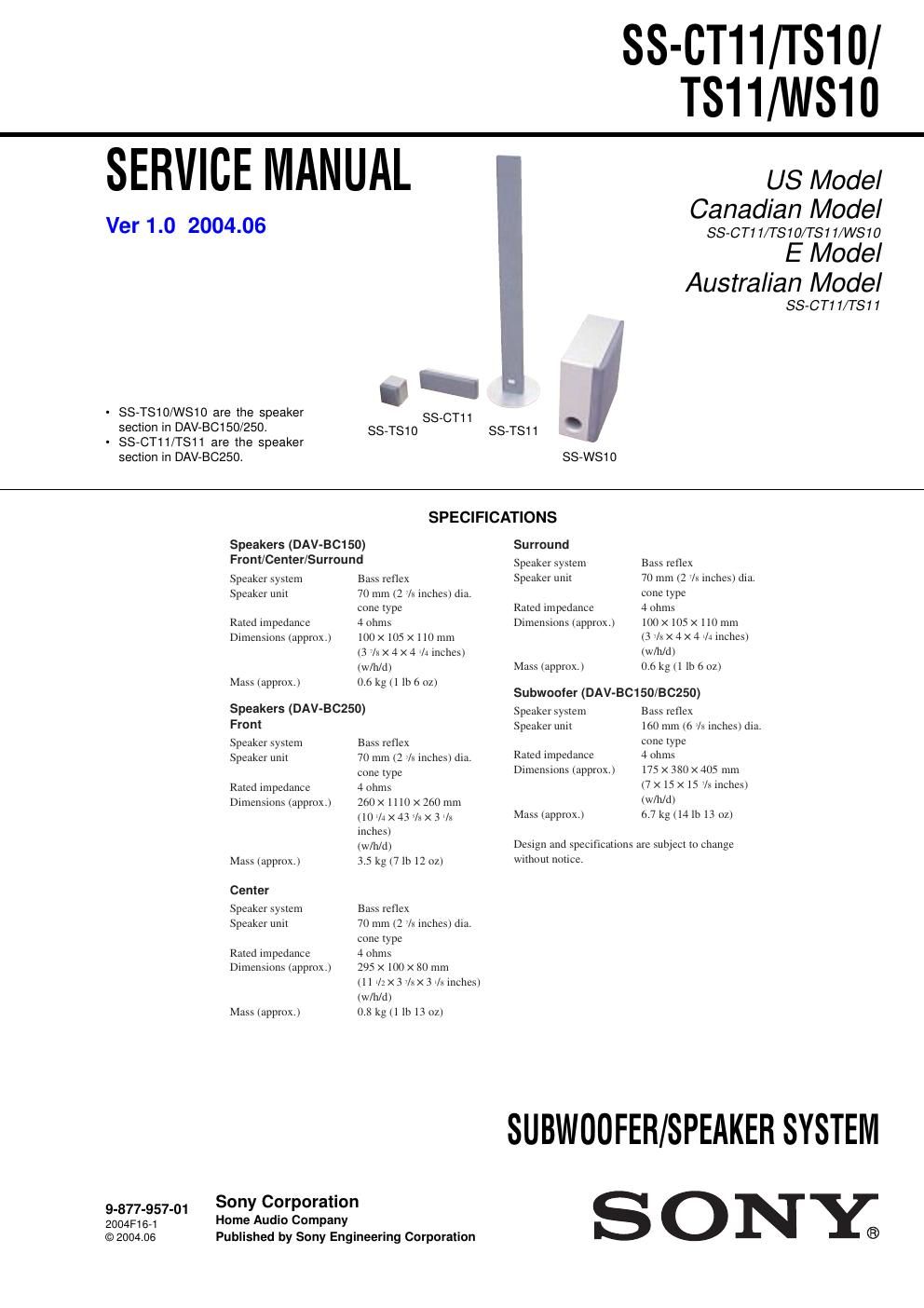

2 SS-CT11/TS10/TS11/WS10 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1A-4715-529-A OVERALL ASSY 24-254-936-01 FRAME, GRILLE 31-825-872-11 SPEAKER (7CM)44-874-614-02 SCREW (1) (3.5X14), TAPPING 54-254-937-01 CABINET 61-694-836-11 TERMINAL, SPEAKER SS-CT11 --XX and -X mean standardized parts, so they may have some difference from the original one. not supplied not supplied not supplied 44 4 6 3 5 2 1
Page 2
3 SS-CT11/TS10/TS11/WS10 SS-TS10 Ref. No. Part No. Description Remark 5252 51 not suppliednot supplied not supplied 51 A-4715-281-A OVERALL ASSY 52 4-874-614-02 SCREW (1) (3.5X14), TAPPING
