Sony ss wmsp 67 e service manual
This is the 4 pages manual for sony ss wmsp 67 e service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

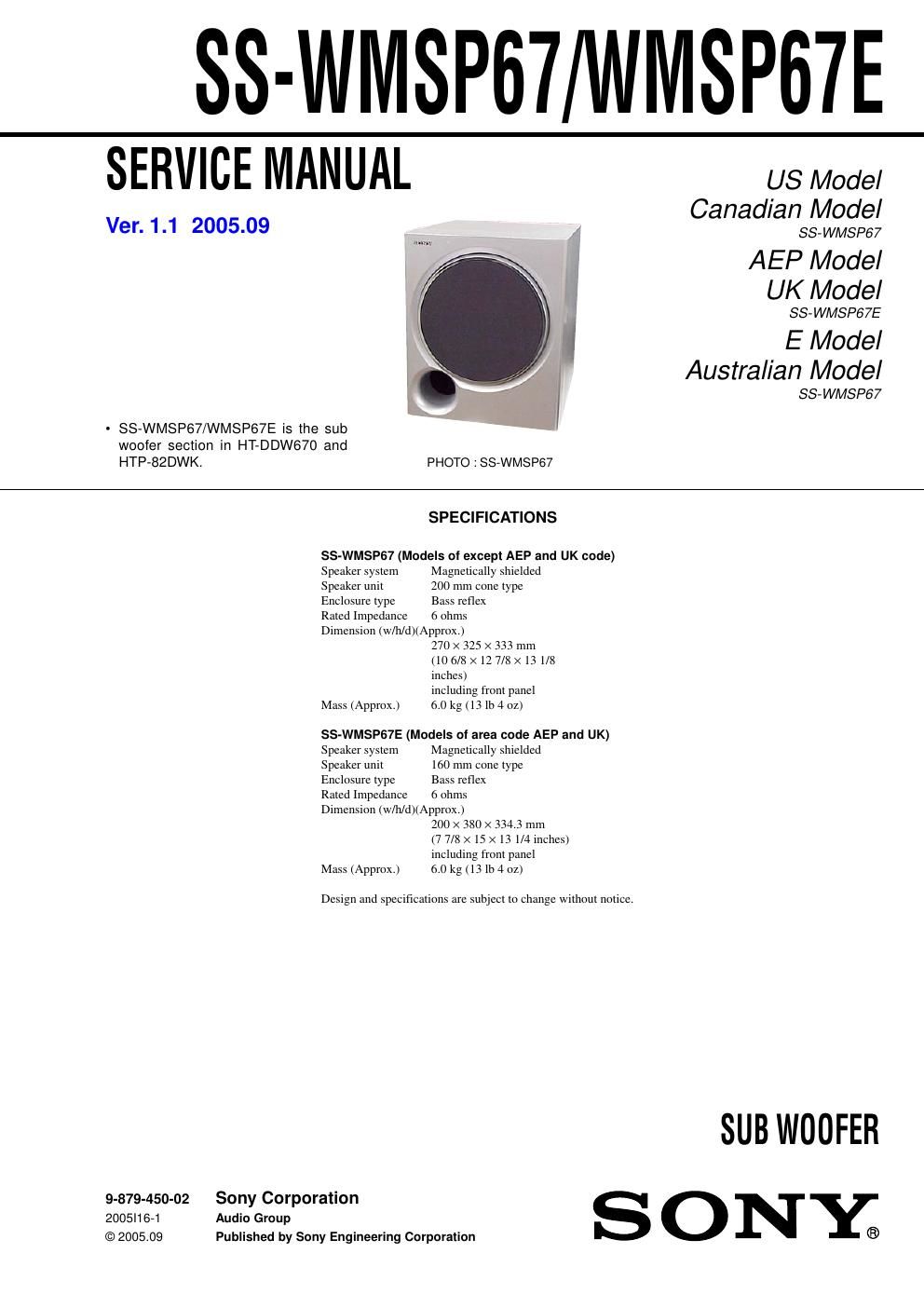

Extracted text from sony ss wmsp 67 e service manual (Ocr-read)
Page 1
2 SS-WMSP67/WMSP67E EXPLODED VIEW AND PARTS LIST NOTE: --XX, -X mean standardized parts, so they may have some differences from the original one. - Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not supplied. -A bbreviation AU S: A ustralian model CND : Canadian model E51 : Chilean and Peruvian model MX : Mexican model SP : Singapore model 1 A-1095-558-A FRONT PANEL ASSY (AEP, UK) 2 A-1090-611-A OVERALL ASSY (US, CND, E51, MX, AUS, SP) 3 4-235-677-01 SCREW (4X20)(TYPE1), +BVTP (EXCEPT AEP, UK) 12 SP1 not supplied not supplied not supplied 3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3 4-874-614-02 SCREW (1)(3.5X1.4), TAPPING (AEP, UK) SP1 1-825-845-11 LOUDSPEAKER (20cm) (US, CND, E51, MX, AUS, SP) SP1 1-826-089-11 LOUDSPEAKER (16cm)(AEP, UK)
Page 2
3 SS-WMSP67/WMSP67E MEMO
