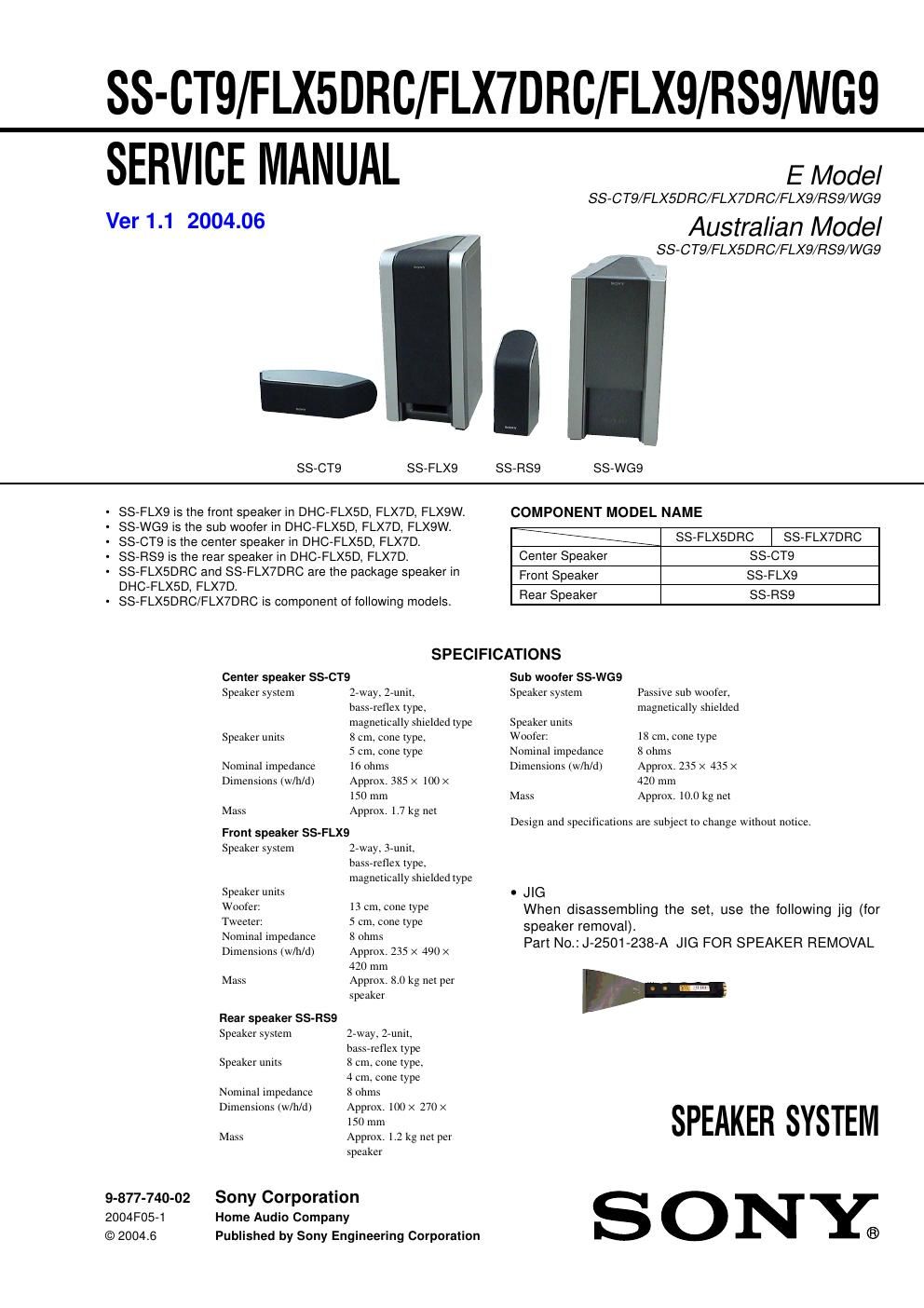

Sony ss wg 9 service manual
This is the 8 pages manual for sony ss wg 9 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss wg 9 service manual (Ocr-read)
Page 1
2 SS-CT9/FLX5DRC/FLX7DRC/ FLX9/RS9/WG9 -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 A-4713-628-A PANEL ASSY, FRONT 2 4-986-971-12 SCREW (3.5) 3 4-874-614-21 SCREW (1) (3.5X14), TAPPING 4 4-252-481-01 CABINET, SPEAKER 5 4-229-803-11 PACKING SP1 1-825-083-12 SPEAKER (5cm) SP2 1-825-084-12 SPEAKER (8cm) 1-1. SS-CT9 SECTION 1 EXPLODED VIEWS 1 2 3 3 3 3 4 5 not supplied not supplied not supplied not supplied SP1 SP2
Page 2
3 SS-CT9/FLX5DRC/FLX7DRC/ FLX9/RS9/WG9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-4713-624-A FRAME ASSY, GRILLE 52 A-4713-623-A PANEL ASSY, FRONT 53 4-874-614-21 SCREW (1) (3.5X14), TAPPING 54 4-252-469-01 PANEL, TOP 55 4-218-300-01 PACKING (B)SP3 1-529-951-14 SPEAKER (5cm) SP4 1-825-087-13 SPEAKER (12cm) SP5 1-825-087-13 SPEAKER (12cm) #1 7-685-166-61 SCREW +P 4X30 TYPE4 1-2. SS-FLX9 51 52 53 53 53 55 54 not supplied not supplied not supplied not supplied not supplied SP3 #1 #1 SP4 SP5 not supplied not supplied not supplied not supplied
