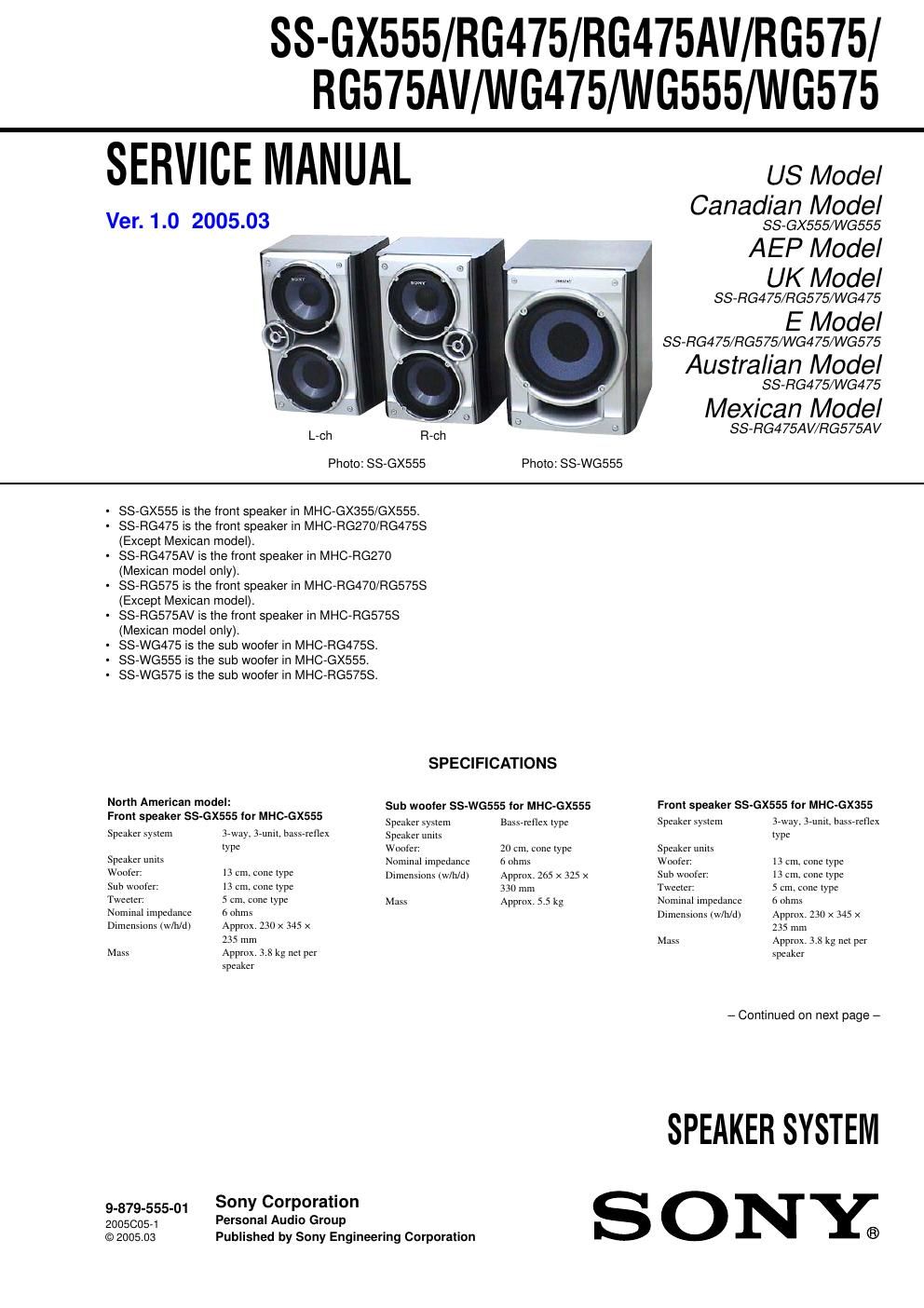

Sony ss wg 575 service manual
This is the 4 pages manual for sony ss wg 575 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss wg 575 service manual (Ocr-read)
Page 1
2 SS-GX555/RG475/RG475AV/RG575/RG575AV/WG475/WG555/WG575 Mexican model: Front speaker SS-RG575AV for MHC- RG575S Speaker system 3-way, 4-unit, bass-reflex type, magnetically shielded type Speaker units Sub Woofer: 15 cm, cone type Woofer: 15 cm, cone type Tweeter: 5 cm × 2, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 245 × 380 × 290mm Mass Approx. 5.9 kg net per speaker Sub woofer SS-WG575 for MHC-RG575S Speaker system Bass-reflex type Speaker units Woofer: 20 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 265 × 325 × 365 mm Mass Approx. 6.3 kg Front speaker SS-RG575AV for MHC- RG470 Speaker system 3-way, 4-unit, bass-reflex type, magnetically shielded type Speaker units Sub Woofer: 15 cm, cone type Woofer: 15 cm, cone type Tweeter: 5 cm × 2, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 245 × 380 × 290mm Mass Approx. 5.9 kg net per speaker Front speaker SS-RG475AV for MHC- RG270 Speaker system 3-way, 3-unit, bass-reflex type, magnetically shielded type Speaker units Woofer: 13 cm, cone type Sub woofer: 13 cm, cone type Tweeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 230 × 345 × 235 mm Mass Approx. 4.0 kg net per speaker Sub woofer SS-WG475 for MHC-RG475S Speaker system Bass-reflex type Speaker units Woofer: 20 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 265 × 325 × 330 mm Mass Approx. 5.5 kg Front speaker SS-RG575 for MHC-RG470 Speaker system 3-way, 4-unit, bass-reflex type Speaker units Sub Woofer: 15 cm, cone type Woofer: 15 cm, cone type Tweeter: 5 cm × 2, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 245 × 380 × 290 mm Mass Approx. 5.5 kg net per speaker Front speaker SS-RG475 for MHC-RG270 Speaker system 3-way, 3-unit, bass-reflex type Speaker units Woofer: 13 cm, cone type Sub woofer: 13 cm, cone type Tweeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 230 × 345 × 235 mm Mass Approx. 3.8 kg net per speaker Other models: Front speaker SS-RG575 for MHC-RG575S Speaker system 3-way, 4-unit, bass-reflex type Speaker units Sub Woofer: 15 cm, cone type Woofer: 15 cm, cone type Tweeter: 5 cm × 2, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 245 × 380 × 290 mm Mass Approx. 5.5 kg net per speaker Sub woofer SS-WG575 for MHC-RG575S Speaker system Bass-reflex type Speaker units Woofer: 20 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 265 × 325 × 365 mm Mass Approx. 6.3 kg Front speaker SS-RG475 for MHC-RG475S Speaker system 3-way, 3-unit, bass-reflex type Speaker units Sub woofer: 13 cm, cone type Woofer: 13 cm, cone type Tweeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 230 × 345 × 235 mm Mass Approx. 3.8 kg net per speaker Design and specifications are subject to change without notice. European and Russian models: Front speaker SS-RG475 for MHC-RG475S Speaker system 3-way, 3-unit, bass-reflex type Speaker units Woofer: 13 cm, cone type Sub woofer: 13 cm, cone type Tweeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 230 × 345 × 235 mm Mass Approx. 3.8 kg net per speaker Sub woofer SS-WG475 for MHC-RG475S Speaker system Bass-reflex type Speaker units Woofer: 20 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 265 × 325 × 330 mm Mass Approx. 5.5 kg Front speaker SS-RG575 for MHC-RG470 Speaker system 3-way, 4-unit, bass-reflex type Speaker units Sub Woofer: 15 cm, cone type Woofer: 15 cm, cone type Tweeter: 5 cm × 2, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 245 × 380 × 290 mm Mass Approx. 5.5 kg net per speaker Front speaker SS-RG475 for MHC-RG270 Speaker system 3-way, 3-unit, bass-reflex type Speaker units Woofer: 13 cm, cone type Sub woofer: 13 cm, cone type Tweeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 230 × 345 × 235 mm Mass Approx. 3.8 kg net per speaker
Page 2
3 SS-GX555/RG475/RG475AV/RG575/RG575AV/WG475/WG555/WG575 PARTS LIST A-1097-956-A OVERALL ASSY (SS-WG555) A-1097-966-A SYSTEM (L) ASSY (L-ch) (SS-GX555) A-1097-967-A SYSTEM (R) ASSY (R-ch) (SS-GX555) A-1102-711-A SYSTEM (L) ASSY (L-ch) (SS-RG475) A-1102-712-A SYSTEM (R) ASSY (R-ch) (SS-RG475) A-1102-713-A OVERALL ASSY (SS-WG475) A-1102-901-A OVERALL ASSY (SS-RG575) A-1102-905-A OVERALL ASSY (SS-WG575) A-1107-097-A OVERALL ASSY (SS-RG575AV) A-1107-099-A SYSTEM (L) ASSY (L-ch) (SS-RG475AV) A-1107-100-A SYSTEM (R) ASSY (R-ch) (SS-RG475AV) Part No. Description Remark
