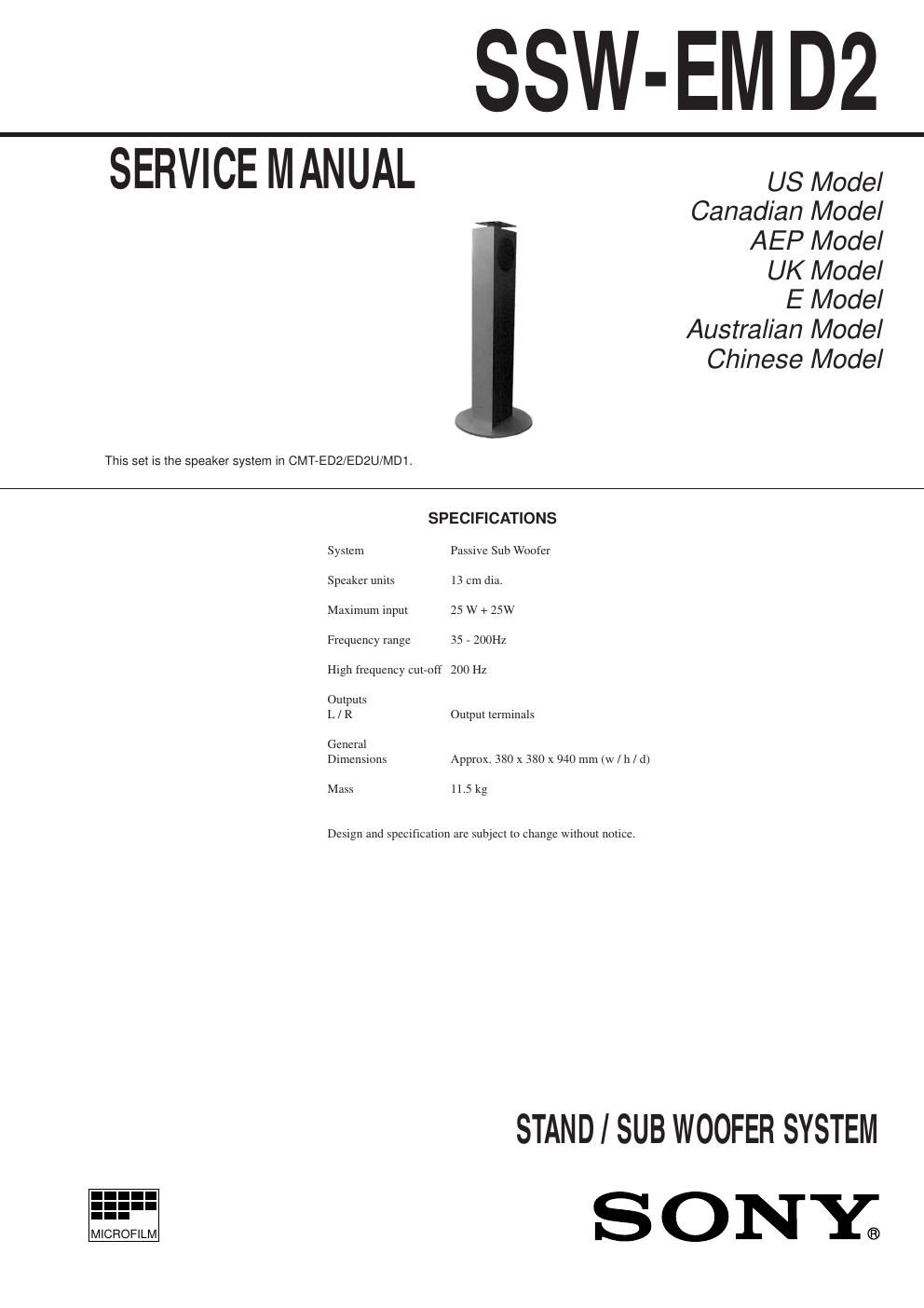

Sony ss wemd 2 service manual

Page 1

2 Sony Corporation Home Audio Company 9-929-027-11 99I091685-1 Printed in Japan © 1999. 9 Published by Quality Assurance Dept. SSW-EMD2 NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. ¥ Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST 1 X-4952-651-1 PANEL ASSY, FRONT (ALUMINUM) 2 4-226-907-01 COVER, BACK 3 4-226-905-01 TABLE (SU) 4 4-226-910-01 CATCHER 5 4-226-911-01 BUSHING, CORD 6 X-4952-650-1 NET ASSY, GRILLE 7 X-4952-649-1 NETWORK ASSY 8 4-226-913-01 SCREW (ROTATE STOPPER) 9 4-226-914-01 SCREW (SPEAKER FIXED) 10 1-694-345-11 TERMINAL (B/G) Ref. No. Part No. Description Remark not supplied not supplied not suppliednot suppliednot suppliednot supplied not supplied not supplied not suppliednot supplied not supplied 1 4 4 4 4 4 4 2 5 9 9 9 9 5 4 4410 4 7 10 8 3 SP901 6 SP901 1-529-603-11 SPEAKER (13 cm) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 4-426-568-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,SPANISH,GERMAN,DUTCH) 4-226-913-01 SCREW (ROTATE STOPPER) 4-226-926-01 SCREW (3 x 14)
