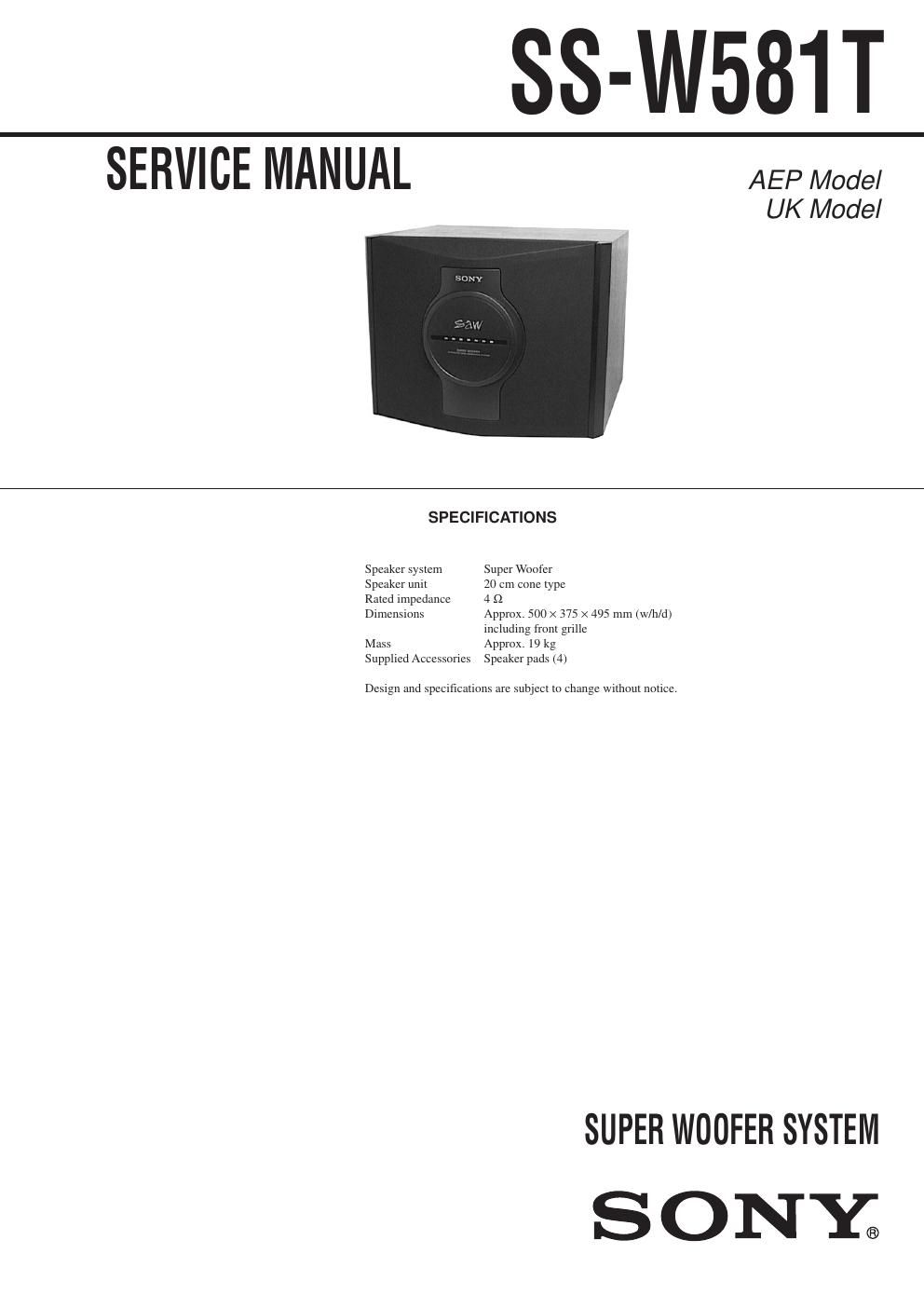

SS-W581T 2 Sony Corporation Audio Entertainment Group 9-922-899-31 2000F1648-1D Printed in Japan ©2000.6 Published by HA Quality Assurance Dept. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks EXPLODED VIEW AND PARTS LIST 1 1-761-067-11 PC BOARD 2 7-685-135-19 SCREW +P 2.6 ´ 10 TYPE 2 NON SLIT 3 X-4950-030-1 FRAME ASSY, GRILLE 4 7-621-846-60 SCREW, WOOD +R 4.1 ´ 25 5 7-621-846-58 SCREW, WOOD +R 4.1 ´ 20 6 1-769-619-11 CORD (R) 7 1-537-332-11 TERMINAL BOARD SP1 1-505-959-11 SPEAKER (20 cm)ACCESSORIES & PACKING MATERIALS ******************************** 1-574-558-11 CORD, SPEAKER 3-862-716-12 MANUAL, INSTRUCTION (ENGLISH,FRENCH,SPANISH,CHINESE,ARABIC) NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.¥ The mechanical parts with no reference number in the exploded views are not supplied. 357 5 4 4 6 2 1 SP1 not supplied not supplied
