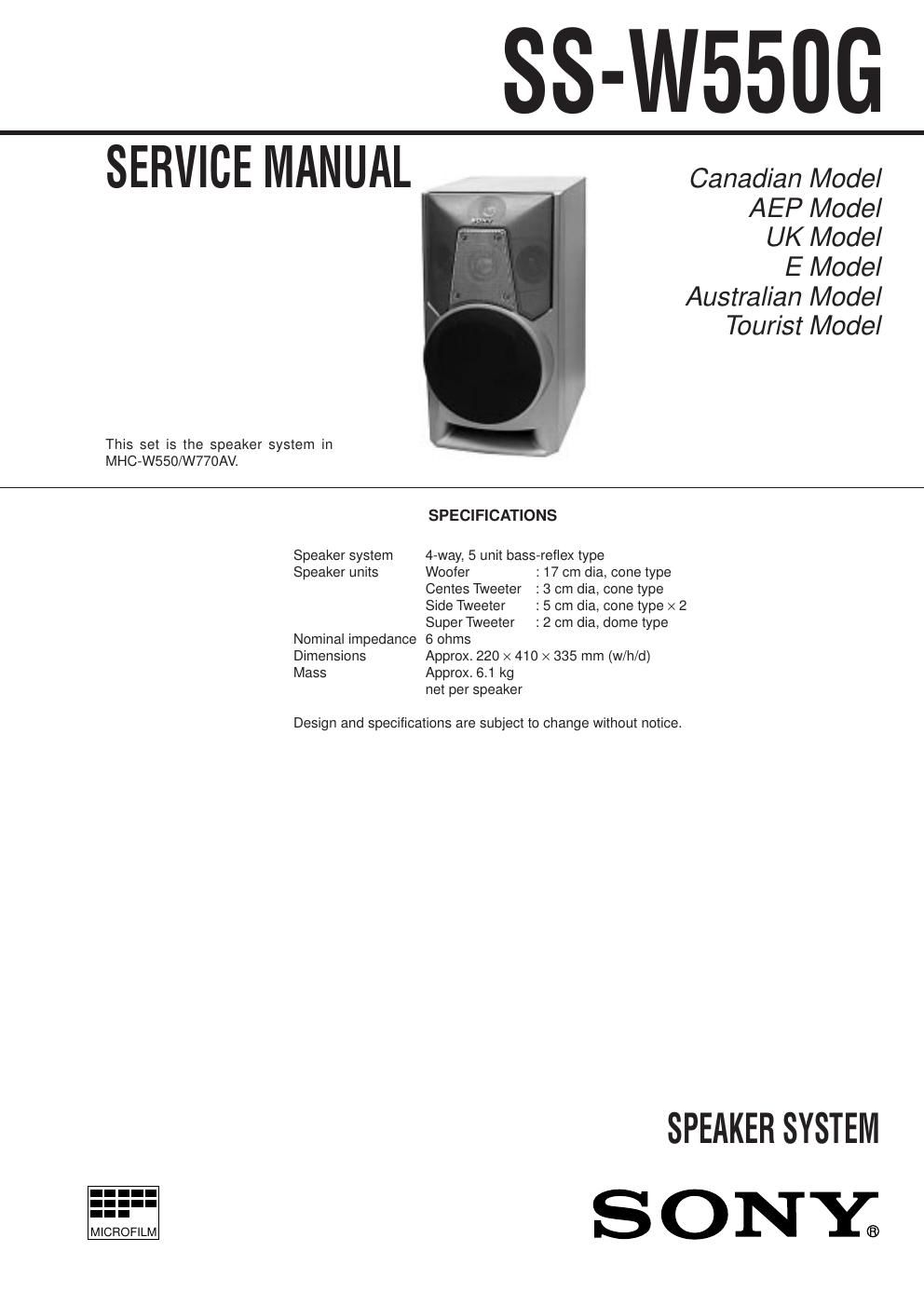

Sony ss w 550 g service manual

Page 1

Ñ 2 Ñ Sony Corporation Home A&V Products Company 9-920-916-11 97F160481-1 Printed in Japan © 1997.6 Published by General Engineering Dept. (Shibaura) EXPLODED VIEW AND PARTS LIST 12 2 123 4 5 56 9 5 11 5 108 14 SP5 SP3 SP1 SP2 SP4 7 11 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4943-678-1 FRAME ASSY, GRILLE *2 4-963-075-01 CATCHER 3 X-4948-677-1 PANEL ASSY, FRONT 4 X-4948-679-1 FRAME ASSY, MID 5 4-874-614-31 SCREW +BVTP 3.5X12 *6 1-589-972-11 PC BOARD *7 4-992-369-01 RING, WOOFER *8 A-4384-648-A CABINET ASSY, SPEAKER 9 7-685-146-11 SCREW +P 3X8 TYPE2 10 4-992-376-01 PACKING11 7-685-660-79 SCREW +P 4X10 TYPE2 12 4-992-366-01 ORNAMENT SCREW 14 1-782-756-11 CORD SP1 1-505-508-11 SPEAKER (16cm) SP2 1-505-676-11 SPEAKER (3cm) SP3,4 1-505-730-11 SPEAKER (5cm) SP5 1-505-762-11 SPEAKER (2cm) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-775-512-21 CORD, SPEAKER CONNECTION Note: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.¥ The mechanical parts with no reference number in the exploded views are not supplied.
