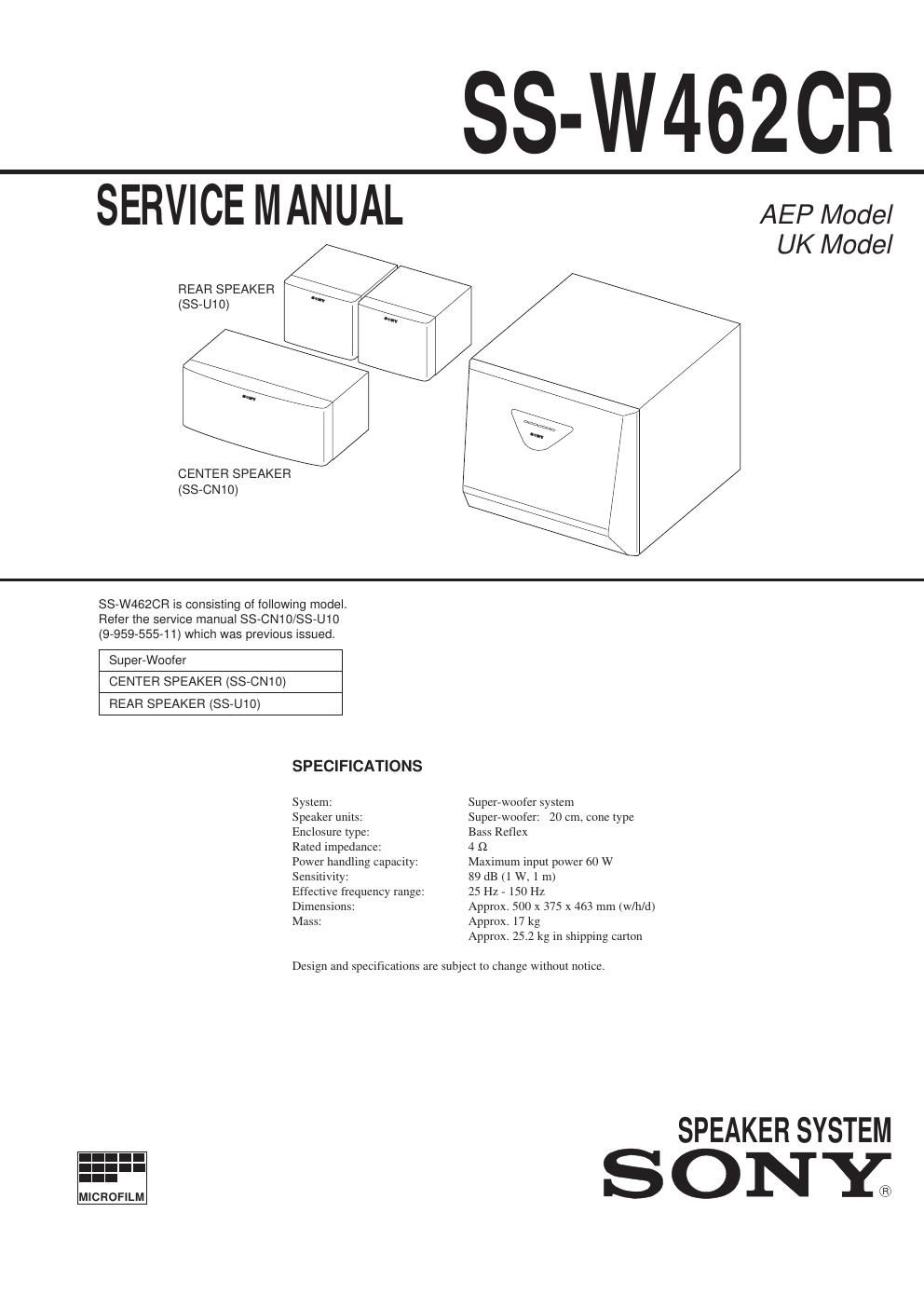

Sony ss w 462 cr service manual

Page 1

- 2 - SS-W462CR 1. EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark 1 X-4947-641-1 SPEAKER CABINET ASSY 2 X-4947-642-1 GRILLE FRAME ASSY 3 X-4947-640-1 LED ASSY 4 4-977-569-01 SERVICE PANEL 5 1-777-647-11 CORD (INTERCONNECTING) 6 1-537-529-11 TERMINAL BOARD 7 4-981-348-01 SCREW +B 4 X 25 8 4-960-362-01 SCREW +P 4 X 19 9 4-960-366-01 SCREW +P3.5 X 9.5 SP1 1-504-515-12 SPEAKER (20 cm) (Super-Woofer) Ref. No. Part No. Description Remark 3-858-200-11 INSTRUCTION MANUAL *4-977-571-01 CUSHION (T1) *4-977-572-01 CUSHION (T2) *4-977-573-01 CUSHION (B1) *4-977-574-01 CUSHION (B2) *4-977-576-01 POLYETHYLENE BAG (L) *4-985-792-01 CARTON NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Sony Corporation Home A&V Products Company English 96J7553-1 Printed in Germany © 1996.10 Published by Service and Safety Engineering Dept. 9-960-829-11 6 1 7 SP1 8 4 2 935
