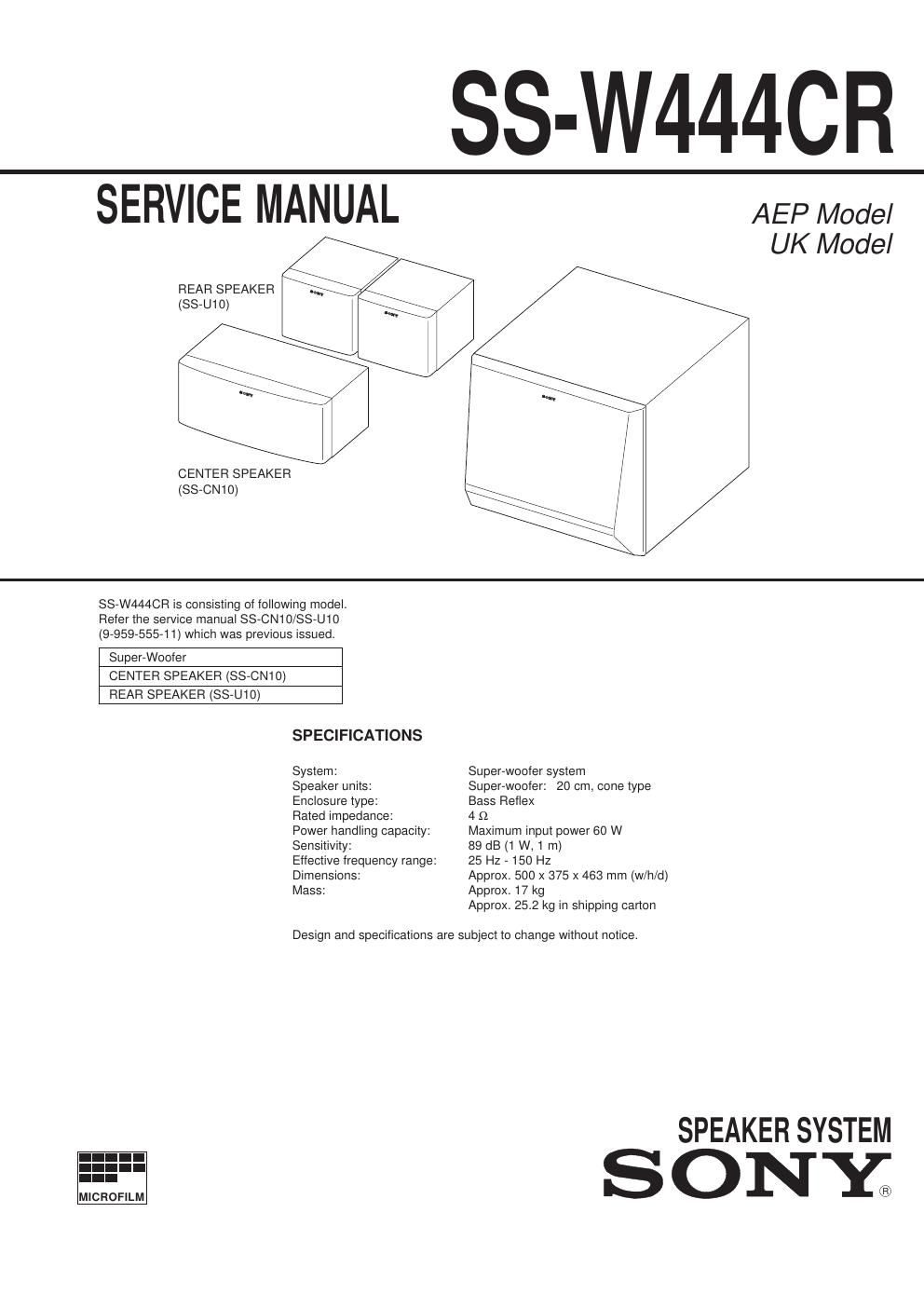

sony ss w 444 cr service manual

Extracted text from sony ss w 444 cr service manual (Ocr-read)

Page 1

- 2 - SS-W444CR 1. EXPLODED VIEW AND PARTS LIST Sony Corporation Consumer A&V Products Company Home A&V Division 9-960-389-11 English 95H7555-1 Printed in Germany © 1995.8 Published by Home A&V Div. Quality Engineering Dept. Ref. No. Part No. Description Remark 1 X-4946-455-1 SPEAKER CABINET ASSY 2 X-4946-456-1 GRILLE FRAME ASSY 3 1-537-529-11 TERMINAL BOARD 4 1-776-140-11 CORD (INTER CONNECTING) 5 4-977-569-01 SERVICE PANEL 6 4-960-362-01 SCREW +P 4 X 19 SP1 1-504-925-11 SPEAKER (20 cm) (Super-Woofer) Ref. No. Part No. Description Remark 3-800-652-11 INSTRUCTION MANUAL *4-977-570-01 INDIVIDUAL CARTON *4-977-571-01 CUSHION (T1) *4-977-572-01 CUSHION (T2) *4-977-573-01 CUSHION (B1) *4-977-574-01 CUSHION (B2) NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 5 2 6 6 SP1 41 3
