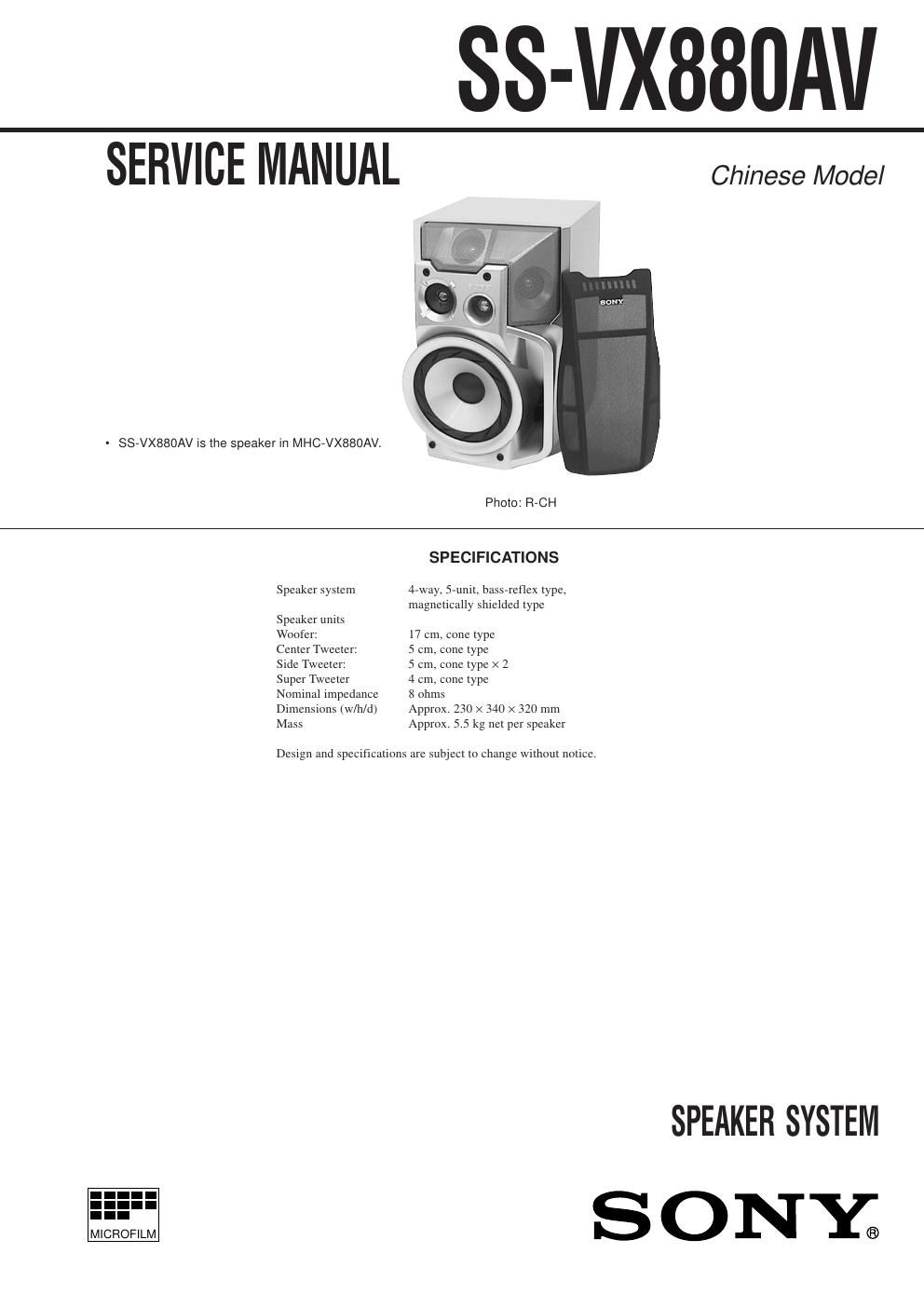

Sony ss vx 880 av service manual

Page 1

2 Sony Corporation Home Audio Company 9-929-014-11 99I0916036-1D Printed in Japan © 1999. 9 Published by Quality Assurance Dept. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4950-676-1 FRAME ASSY, GRILLE 2 X-4950-675-1 PANEL (L) ASSY, FRONT 2 X-4950-691-1 PANEL (R) ASSY, FRONT *3 4-963-075-01 CATCHER 4 4-874-614-21 SCREW (4) (3.5X14), TAPPING 5 4-942-029-01 PACKING *6 A-4411-307-A CABINET (L) ASSY, SPEAKER *6 A-4411-312-A CABINET (R) ASSY, SPEAKER SP1 1-505-510-11 SPEAKER (5cm) (SIDE TWEETER) SP2 1-505-510-11 SPEAKER (5cm) (SIDE TWEETER)SP3 1-529-198-11 SPEAKER (4cm) (SUPER TWEETER) SP4 1-529-426-11 SPEAKER (5cm) (CENTER TWEETER) SP5 1-529-286-11 SPEAKER (17cm) (WOOFER) ACCESSORIES & PACKING MATERIALS ******************************* 1-558-848-11 CORD, SPEAKER (3m) EXPLODED VIEW AND PARTS LIST ¥ The mechanical parts with no reference num- ber in the exploded views are not supplied. NOTE: ¥ -XX and -X mean standardized parts, so they may have some difference from the original one. ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. L-CH 1 3 3 4 45 4 SP5SP4 not supplied 2 SP3 SP2SP1 4 4 6 5 SS-VX880AV
