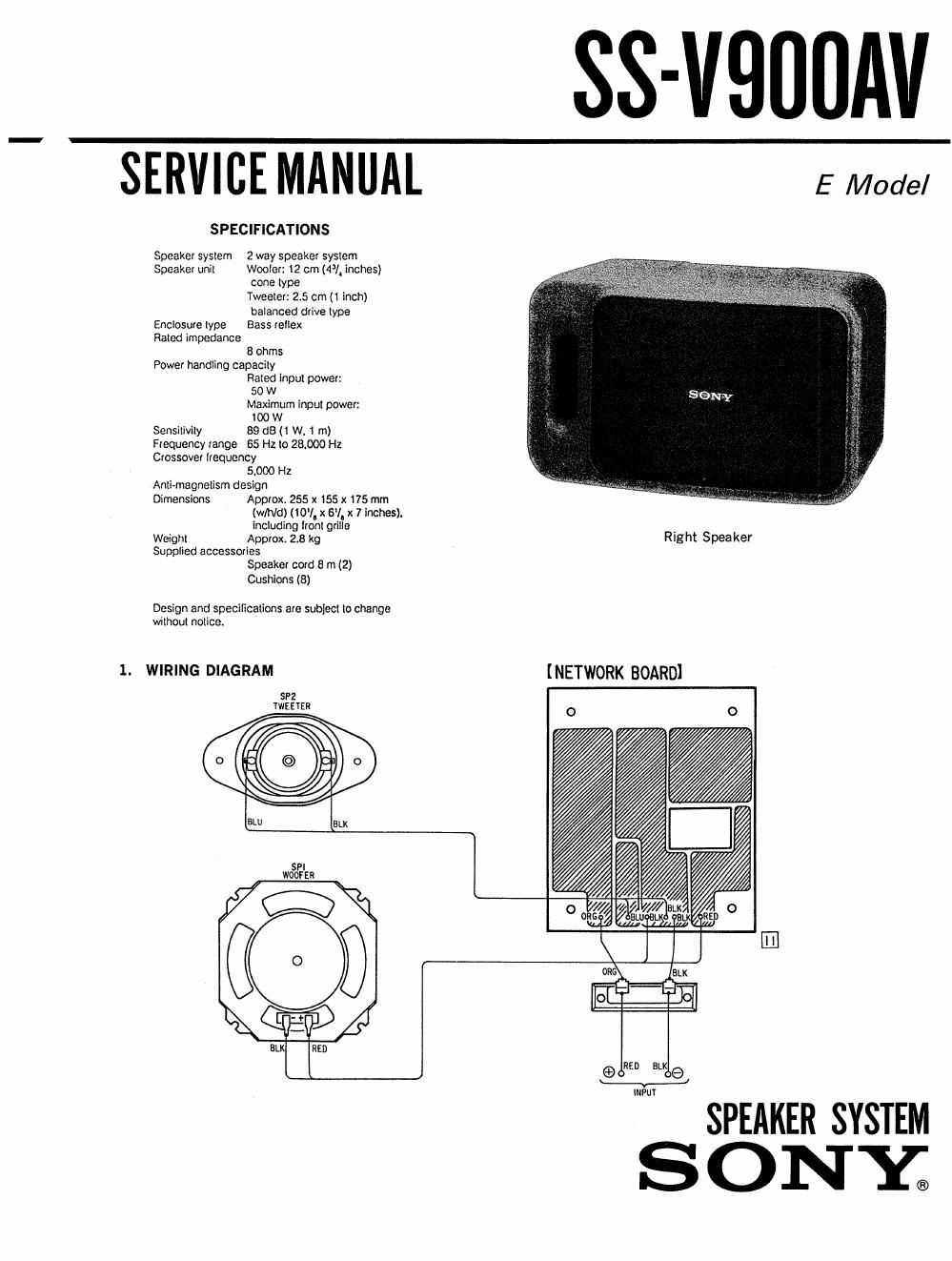

Page 1

SS-VQIIIIIIV

SERVICE MANUAL

SPECIFICATIONS

Speaker system 2 way speaker system
Speaker unit Wooler: 12 cm (4/ inches)
cone type
Tweeter: 25 cm (1 inch)
balanced drive type
Enclosure lype Bass reflex
Rated impedance
8 ohms
Power handling capacity
Rated input power:
50 W
Maximum input power:
00 W
Sensitivity as as (1 w, r m)
Frequency range 65 Hz to 28.000 Hz
Crossover lrequency

5.000 H2
Ami-magnetism design
Dimensions Approx. 255 x 155 x 175 mm

(w/h/d) (10'1. x 6'/, x 7 Inches).
including iron! gritte

Weight Approx 2.8 kg
Supplied accessories
Speaker cord 8 m (2)
Cushions (8)

Design and specifications are subject to change
without notice.

1. WIRING DIAGRAM

SP2
TWEETER

Right Speaker

[NETWORK BOARD]

RED ELK
6 o are
INPUY

E Model

SPEAKER SYSTEM
S 0 NY;

Page 2

SS-VSOOAV

2.

EXPLODED VIEW AND PARTS LIST

NOTE. :

The mechanical parts with no reference
number in the exploded views are not supp
lied.

items marked it" are not stocked since
they are seldom required for routine ser-

vice.

Some delay should be anticipated

when ordering these items.

Illustration: Right Speaker

ef.No Part No.

L

1
2

3
4
5
6
7

X-4941-085-1
X-4941>087-1
7-685-660-29
7685-648-79
7»685'663r79
* 1-589-320-11
1-536-881-41

SP1 1-544-382-11
SP2 1-544-383-11

9-956-026-1 1

Male)
Front panel assy is supplied
right speaker for repair
parts, In case of install left
speaker, turn upside dpwn
direction of SONY emblem.

Description Remark

PANEL ASSY, FRONT

CABINET ASSY, SPEAKER
SCREW +BVTP 4X10 TVPEZ
SCREW +BVTP 3X12 TYPE2 IT-3
SCREW +BVTP 4X16 TYPEZ lT-3
NETWORK BOARD

TERMINAL BOARD (SPEAKER)
SPEAKER (12ml)

SPEAKER (2.50m)

Ref.No Part No,

not supplied

Description

Remark

ACCESSORY & PACKING MATERIAL

1-574-357-11
3'333-976-01
4-926-485-01
3-755-357-11

Sony Corporation
Audio Group

CORD. SPEAKER

SHEET, PROTECTION

CUSHION (A)

MANUAL, INSTRUCTION

(ENGLISH, FRENCH, SPANISH. PORTUGUESE)

English
92D0414-1
Printed in Japan
© 1992. 4

Published by Customer Relations and Service Group
