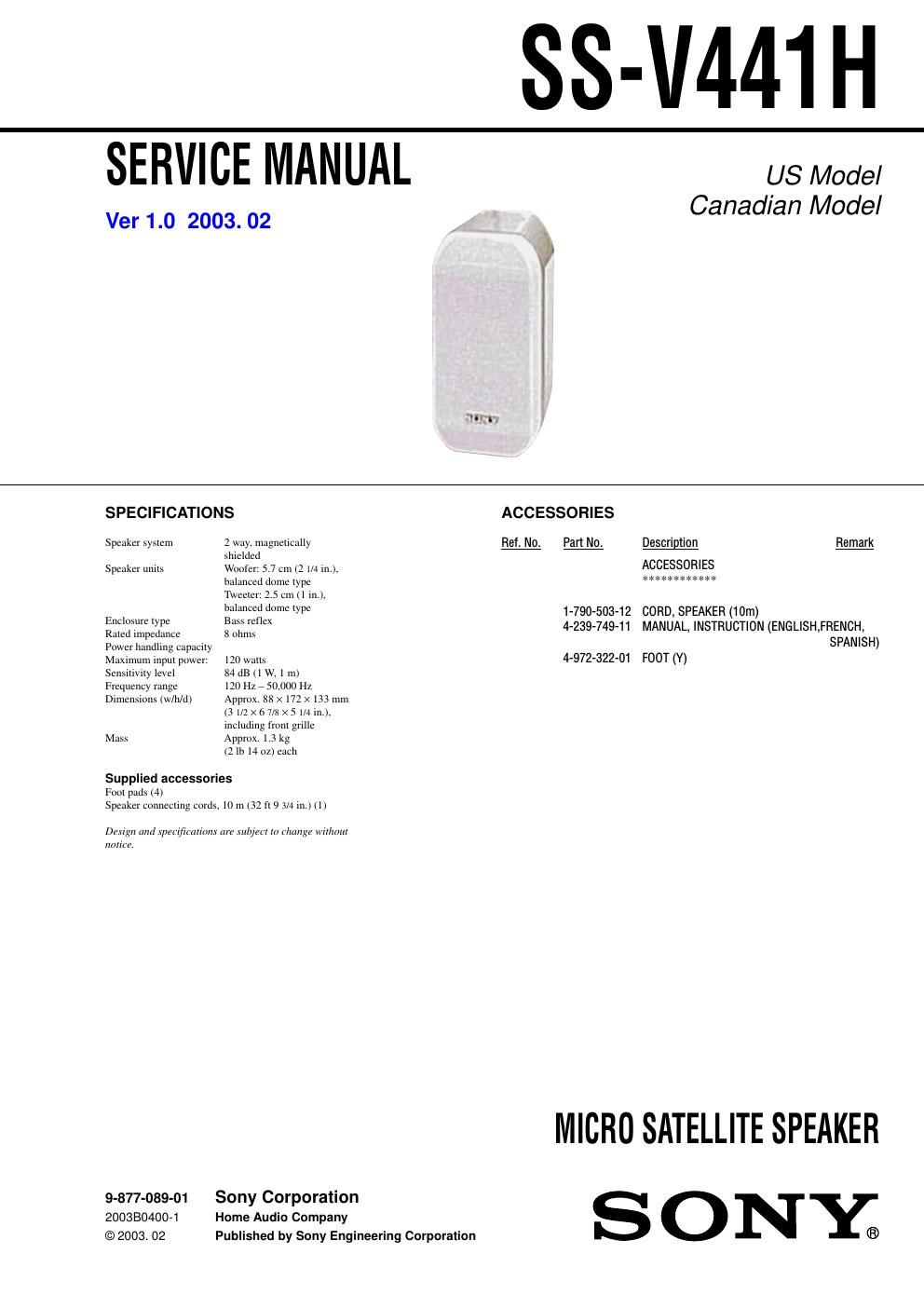

Sony ss v 441 h service manual

This is the 4 pages manual for sony ss v 441 h service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
sony ss v 441 h service manual

Extracted text from sony ss v 441 h service manual (Ocr-read)


Page 1

2 SS-V441H EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: -The mechanical parts with no reference number in the exploded views are not supplied. -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.--XX and -X mean standardized parts, so they may have some difference from the original one. -Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinets ColorRR 1X-4955-346-1 FRAME (V) ASSY, GRILLE 24-244-813-01 BOLT, ORNAMENTAL 34-244-814-01 PANEL, FRONT 44-986-971-11 SCREW (3.5) 54-238-824-01 SCREW 6X-4955-345-1 CABINET ASSY71-694-516-21 TERMINAL, SPEAKER 87-682-549-09 SCREW +B 3X10 SP1 1-825-313-11 SPEAKER (5.7cm) (WOOFER) SP2 1-825-313-11 SPEAKER (5.7cm) (WOOFER) SP3 1-825-314-11 SPEAKER (2.5cm) (TWEETER) 12 2 34 4 5 67 4 not supplied SP1 SP3 SP2not supplied 8

Page 2

3 SS-V441H MEMO
