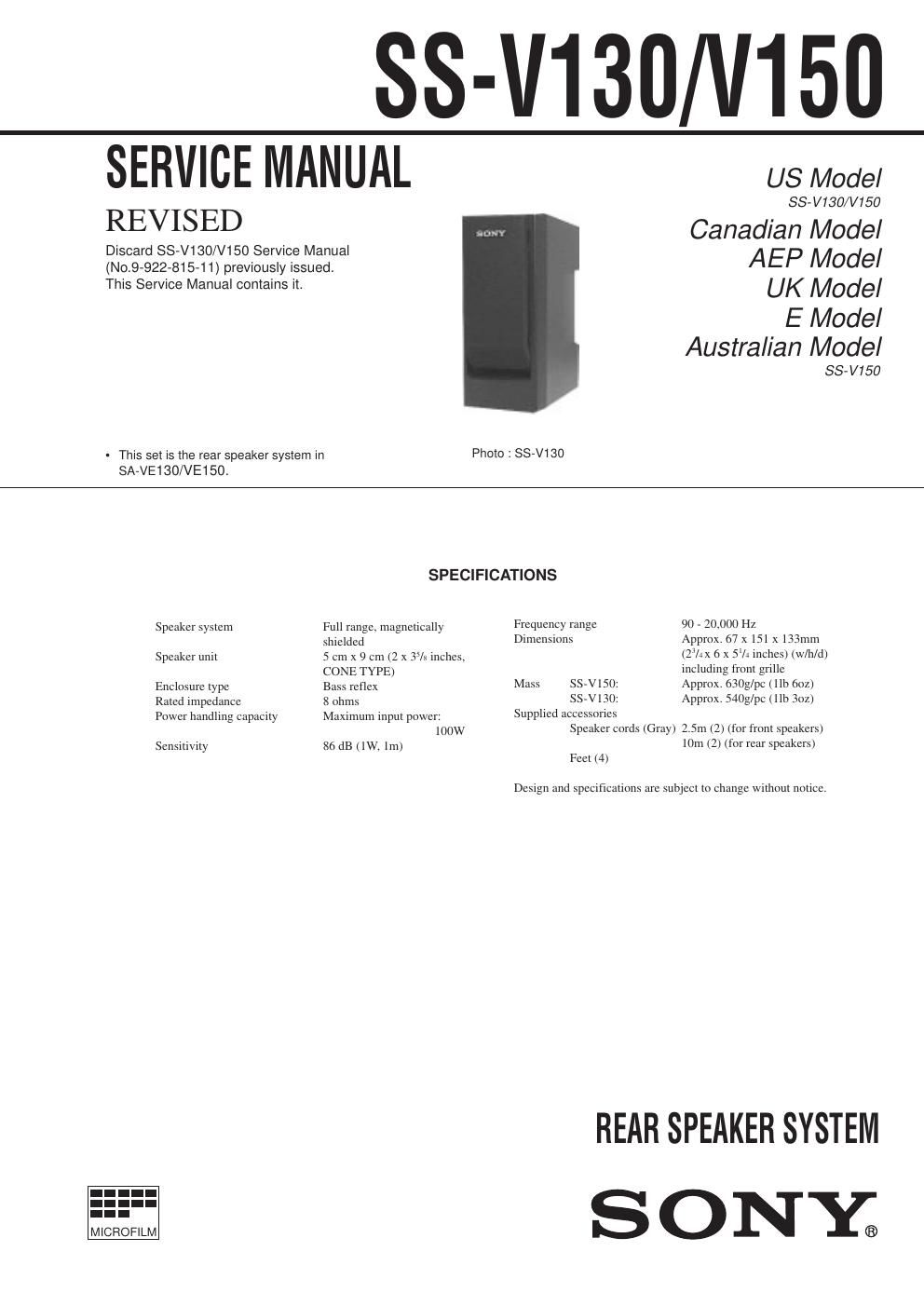

Sony ss v 130 service manual
This is the 2 pages manual for sony ss v 130 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss v 130 service manual (Ocr-read)
Page 1
Ñ 2 Ñ Sony Corporation Home A&V Products Company 9-922-815-12 98G001690-1 Printed in Japan © 1998.7 Published by Quality Assurance Dept. (Shibaura) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4950-138-1 FRONT PANEL ASSY (V130) 1 X-4950-139-1 FRONT PANEL ASSY (V150) 2 7-685-659-79 SCREW + BVTP 4 x 8 TYPE2 IT-3 3 7-685-661-21 SCREW + BVTP 4 x 12 TYPE2 SLIT *4 X-4950-131-1 CABINET ASSY, SPEAKER (V130) *4 X-4949-820-1 CABINET ASSY, SPEAKER (V150) EXPLODED VIEW AND PARTS LIST 5 6 4 3 1 2 not supplied not suppliednot supplie d NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 5 4-929-125-01 SCREW (M4 x 16),TAPPING 6 1-537-775-11 TERMINAL BOARD
