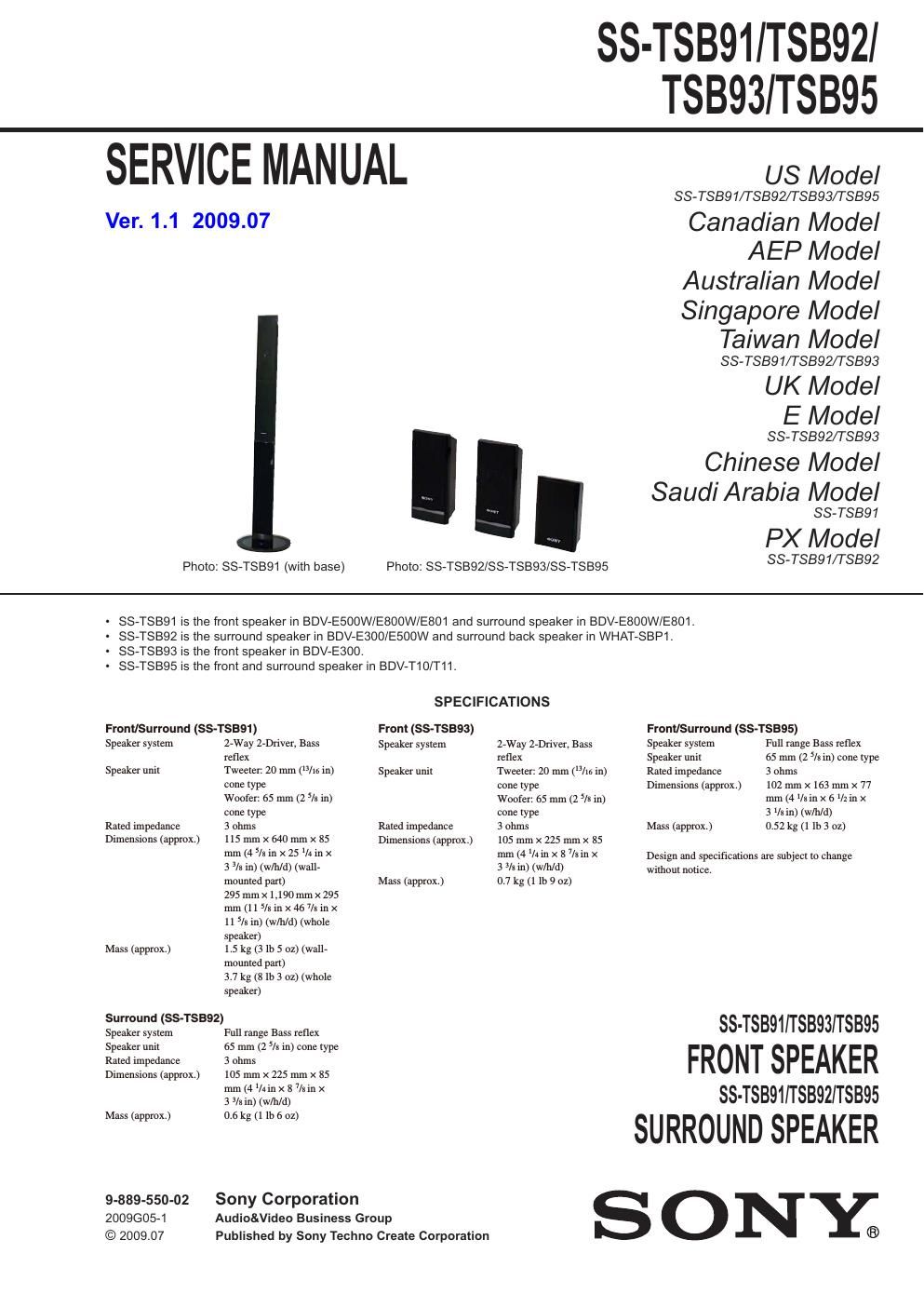

Sony ss tsb 92 service manual

Page 2

SS-TSB91/TSB92/TSB93/TSB95 3 2. EXPLODED VIEW Note: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Items marked * are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. - The mechanical parts with no reference number in the exploded views are not sup- plied. - Color Indication of Appearance Parts Ex- ample: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinets Color 1 A-1708-362-A OVERALL ASSY (SS-TSB91) 2 1-694-836-11 TERMINAL, SPEAKER 3 4-986-971-02 SCREW (3.5) 4 4-874-614-02 SCREW (1) (3.5X14), TAPPING 5 4-874-614-12 SCREW (1) (3.5X14), TAPPING 6 2-580-608-01 SCREW, +PSW M5X16 7 1-836-407-11 CORD (WITH CONNECTOR) (SPEAKER) (Lch: WHITE) 7 1-836-407-21 CORD (WITH CONNECTOR) (SPEAKER) (Rch: RED) 8 4-140-080-01 STAND BASE 9 4-140-084-01 STAND WEIGHT 10 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 11 4-251-067-11 PACKING (AL FRONT) 12 2-580-608-01 SCREW, +PSW M5X16 (Screw (with washer)) 13 A-1708-364-A OVERALL ASSY (SS-TSB92) 14 A-1708-363-A OVERALL ASSY (SS-TSB93) 15 A-1710-931-A OVERALL ASSY (SS-TSB95) 16 2-893-646-01 FOOT SP1 1-858-179-12 LOUDSPEAKER (2 cm) (Tweeter) SP2 1-858-218-11 LOUDSPEAKER (6.5 cm) (Woofer) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 – SS-TSB91 (with BASE) –– SS-TSB92 – – SS-TSB95 – SP1 2 3 4 4 4 4 4 4 5 6 7 8 9 10 11 11 11 11 12 13 15 16 16 16 16 not supplied not supplied SP2 not supplied not supplied not supplied – SS-TSB93 – 14 16 16 not supplied not supplied
