Sony ss tsb 3 service manual
This is the 4 pages manual for sony ss tsb 3 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss tsb 3 service manual (Ocr-read)

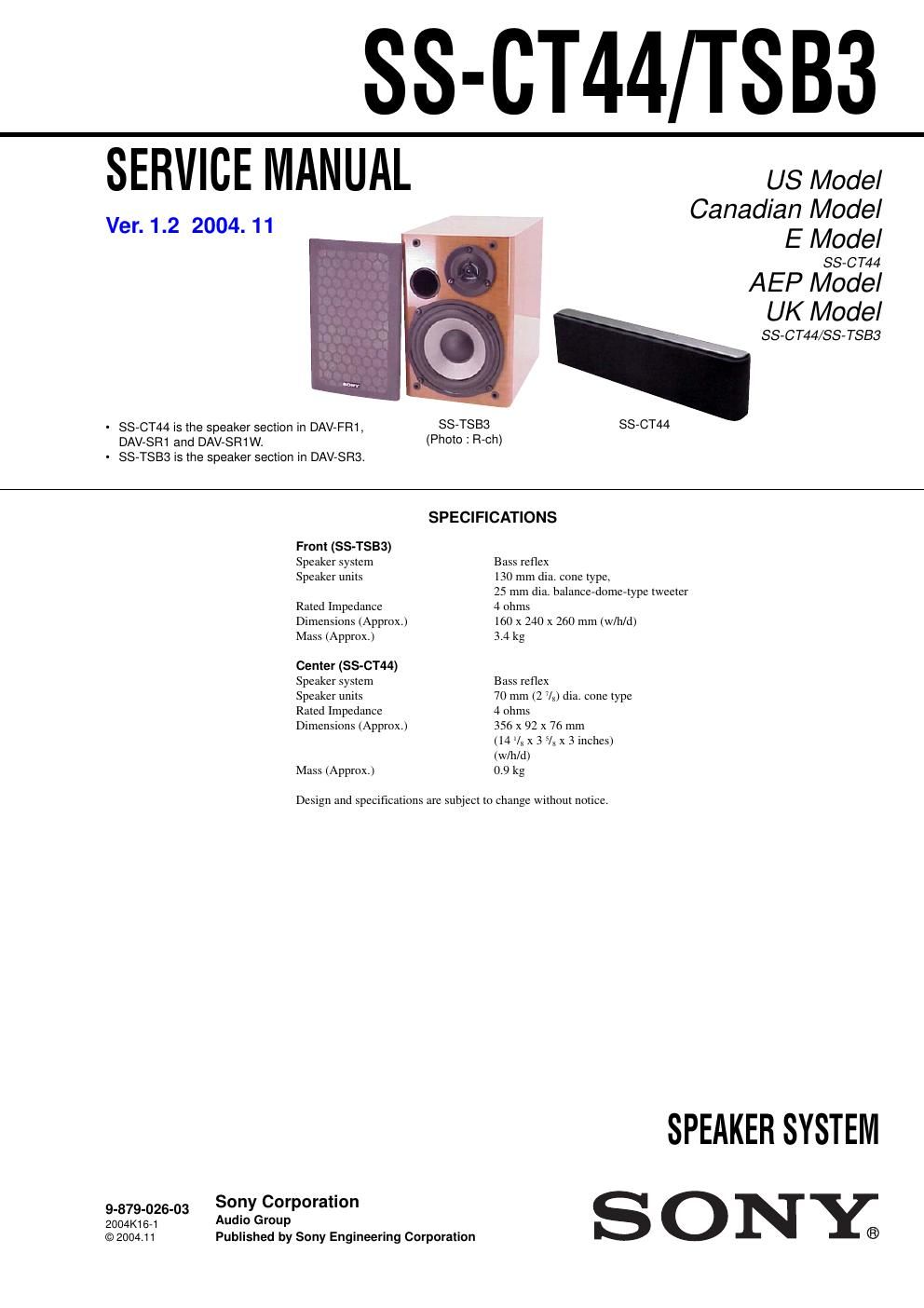

Page 1
2 SS-CT44/TSB3 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.-XX and -X mean standardized parts, so they may have some difference from the original one. SS-CT44 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12-048-751-01 SCREW +BVTP 3.5X14 TYPE2 24-255-212-01 FRAME, GRILLE 34-874-614-82 SCREW 44-255-211-01 PLATE, ORNAMENTAL 51-694-836-11 TERMINAL, SPEAKER64-255-886-01 FOOT 7A-4715-783-A CABINET ASSY (US, CND, E) 8A-1077-551-A CABINET ASSY (AEP, UK) SP1 1-825-871-11 SPEAKER (7cm) not suppliednot suppliednot suppliednot supplied not supplied not supplied not supplied 23 3 3 3 45 6 7 8 1 1 not supplied SP1 Ver. 1.2
Page 2
3 SS-CT44/TSB3 SS-TSB3 Ref. No. Part No. Description Remark 51 X-2022-180-1 GRILLE FRAME ASSY 52 4-932-425-01 SCREW (3.5X20) 53 X-2022-178-1 SPEAKER CABINET (L) ASSY 53 X-2022-179-1 SPEAKER CABINET (R) ASSY R-ch Ver 1.1 515253 52 SP2SP3 SP2 1-825-892-11 SPEAKER (13cm) SP3 X-2021-560-1 SPEAKER (2.5cm) ASSY Ref. No. Part No. Description Remark
