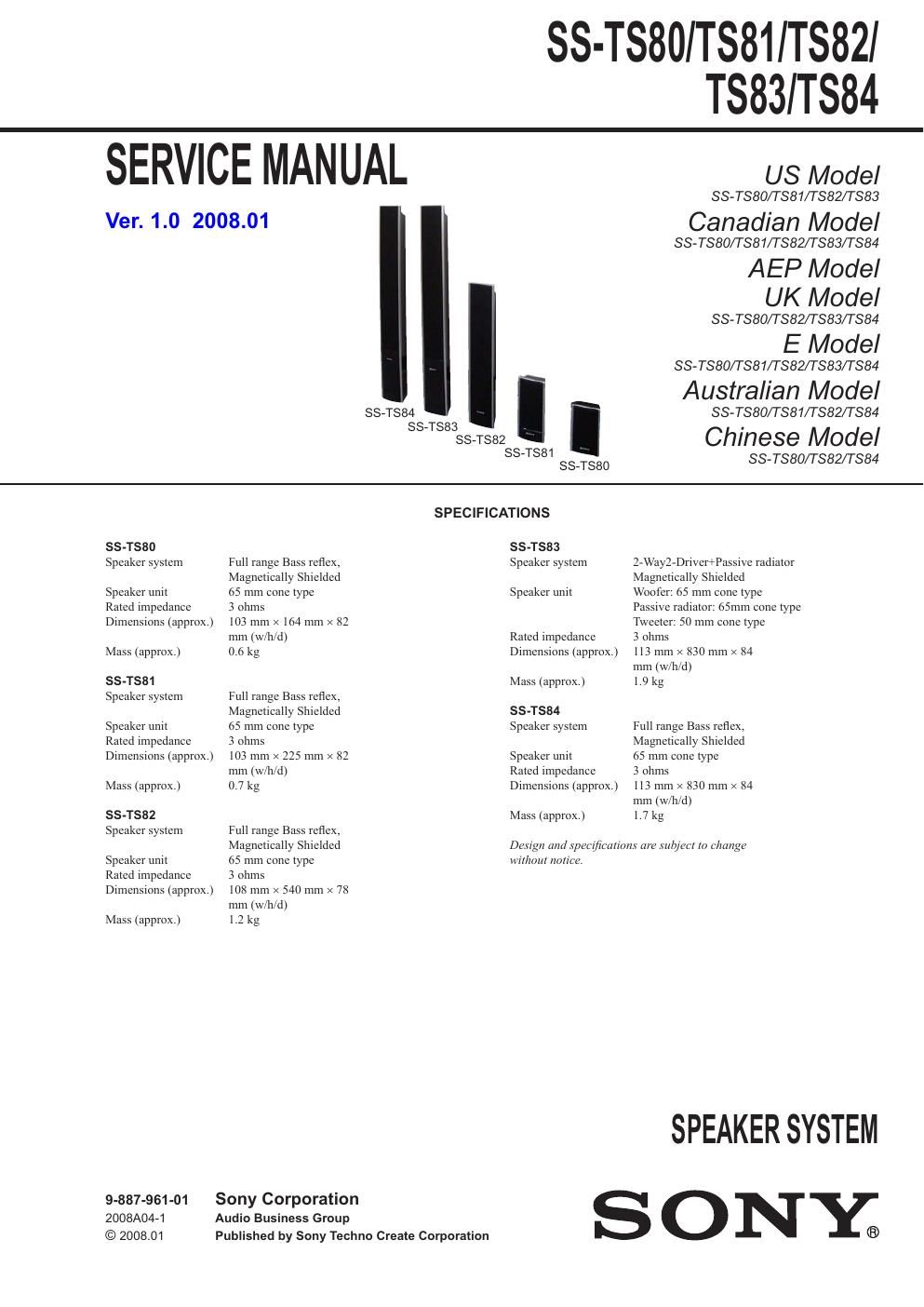

SS-TS80/TS81/TS82/
TS83/TS84
SERVICE MANUAL
Ver. 1.0 2008.01 I
SS-TSS4 l
I
US Model
SS-TSSO/TSB1/T882/TS83
Canadian Model
SS-TSBO/T881/T882/TSB3/TSS4
AEP Model
UK Model
SS-TSSO/T882/TSB3/T584
E Model
SS-TSBO/T881/TSB2/TSB3/TSS4
Australian Model
SS-TSSO/TSB1/T582/T584
SS-TSS3 .
SS-T882SS T331 Chinese MOdel
Ss.ngo SS-TSBO/TSBZ/TS84
SPECIFICATIONS
SS-TSBO SS-TSSS
Speaker system
Speaker unit
Rated impedance
Dimensions (approx)
Mass (approx)
SS-TSB1
Speaker system
Speaker unit
Rated impedance
Dimensions (approx)
Mass (approx)
SS-TSBZ
Speaker system
Speaker unit
Rated impedance
Dimensions (approx)
Mass (approx)
9-887-961-01
2008A04-1
© 2008.01
Full range Bass reflex
Magnetically Shielded
65 mm cone type
3 ohms
103 mm x 164 mm x 82
mm (w/h/d)
0.6 kg
Full range Bass reflex
Magnetically Shielded
65 mm cone type
3 ohms
103 mm x 225 mm x 82
mm (w/h/d)
0.7 kg
Full range Bass reflex
Magnetically Shielded
65 mm cone type
3 ohms
108 mm x 540 mm x 78
mm (w/h/d)
1.2 kg
Sony Corporation
Audio Business Group
Published by Sony Techno Create Corporation
Speaker system
Speaker unit
Rated impedance
Dimensions (approx)
Mass (approx)
SS-TSS4
Speaker system
Speaker unit
Rated impedance
Dimensions (approx)
Mass (approx)
2-Way2-Drix'emPassive radiator
Magnetically Shielded
Woofer: 65 mm cone type
Passive radiator: 65mm cone type
Tweeter: 50 mm cone type
3 ohms
113 mm x 830 mm>< 84
mm (w,h/d)
1.9 kg
Full range Bass reflex,
Magnetically Shielded
65 mm cone type
3 ohms
113 mm x 830 mm>< 84
mm (w,h/d)
1.7 kg
Design and specifications are subject Io change
wit/mm notice,
SPEAKER SYSTEM
