Sony ss ts 20 service manual

This is the 6 pages manual for sony ss ts 20 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 6

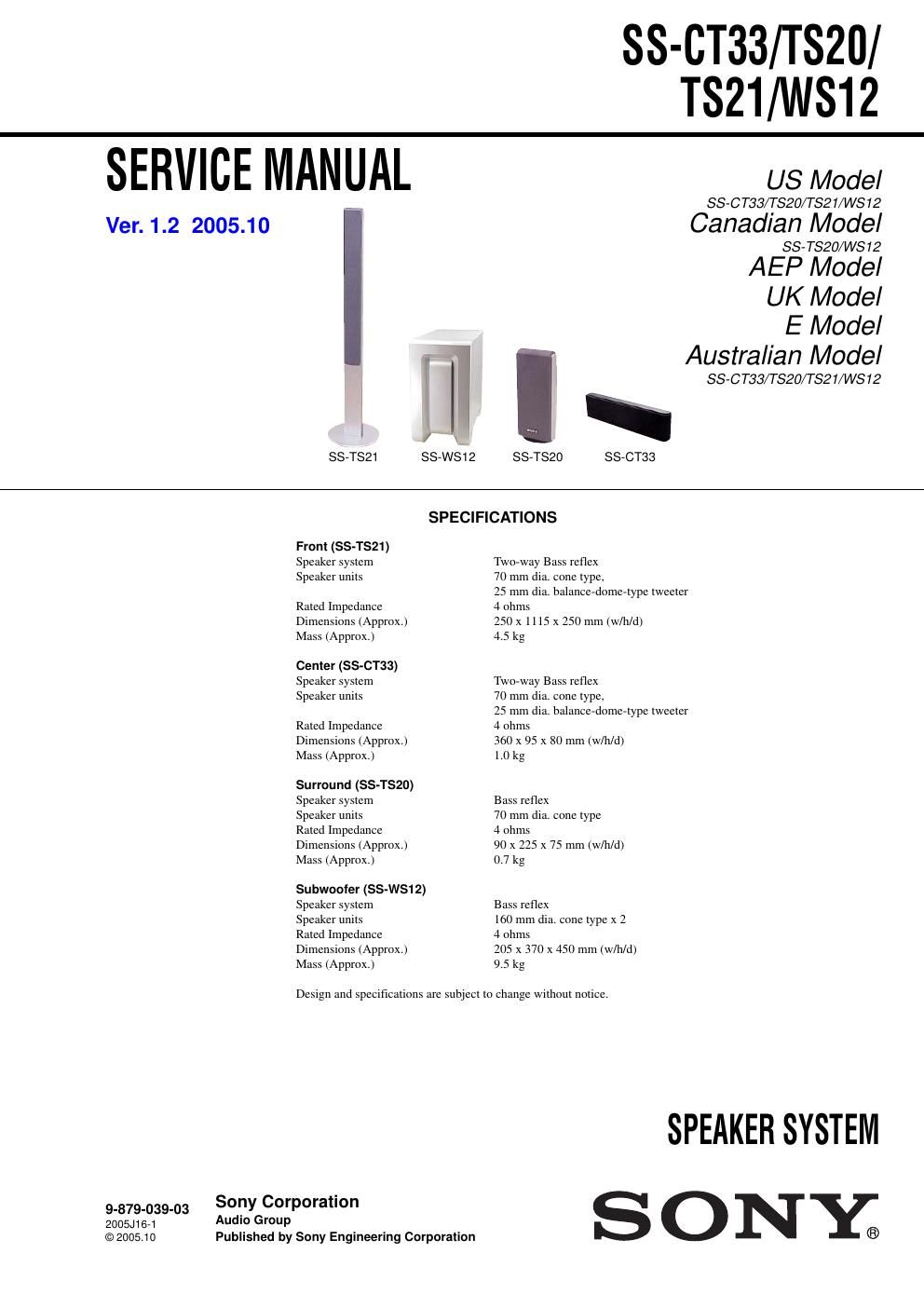

sony ss ts 20 service manual

Extracted text from sony ss ts 20 service manual (Ocr-read)


Page 1

2 SS-CT33/TS20/TS21/WS12 EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.-XX and -X mean standardized parts, so they may have some difference from the original one. SS-CT33 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12-048-751-01 SCREW +BVTP 3.5X14 TYPE2 24-255-212-01 FRAME, GRILLE 34-874-614-82 SCREW 44-255-211-01 PLATE, ORNAMENTAL 51-694-836-11 TERMINAL, SPEAKER64-255-886-01 FOOT 7A-4715-726-A CABINET ASSY 8A-4715-725-A OVERALL ASSY SP1 X-2022-128-1 SPEAKER ASSY (2.5cm) SP2 1-825-871-11 SPEAKER (7cm) not suppliednot suppliednot suppliednot supplied not supplied not supplied not supplied 23 3 3 3 45 6 7 8 SP1 1 1 1 not supplied SP2

Page 2

3 SS-CT33/TS20/TS21/WS12 SS-TS20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-4956-466-1 FRAME ASSY, GRILLE 52 2-048-751-01 SCREW +BVTP 3.5X14 TYPE2 53 4-874-614-82 SCREW 54 1-694-836-11 TERMINAL, SPEAKER55 4-255-545-01 FOOT 56 A-4715-728-A CABINET ASSY SP3 1-825-871-11 SPEAKER (7cm) not supplied SP3 51 52 53 56 52 not supplied not supplied 54 55 55
