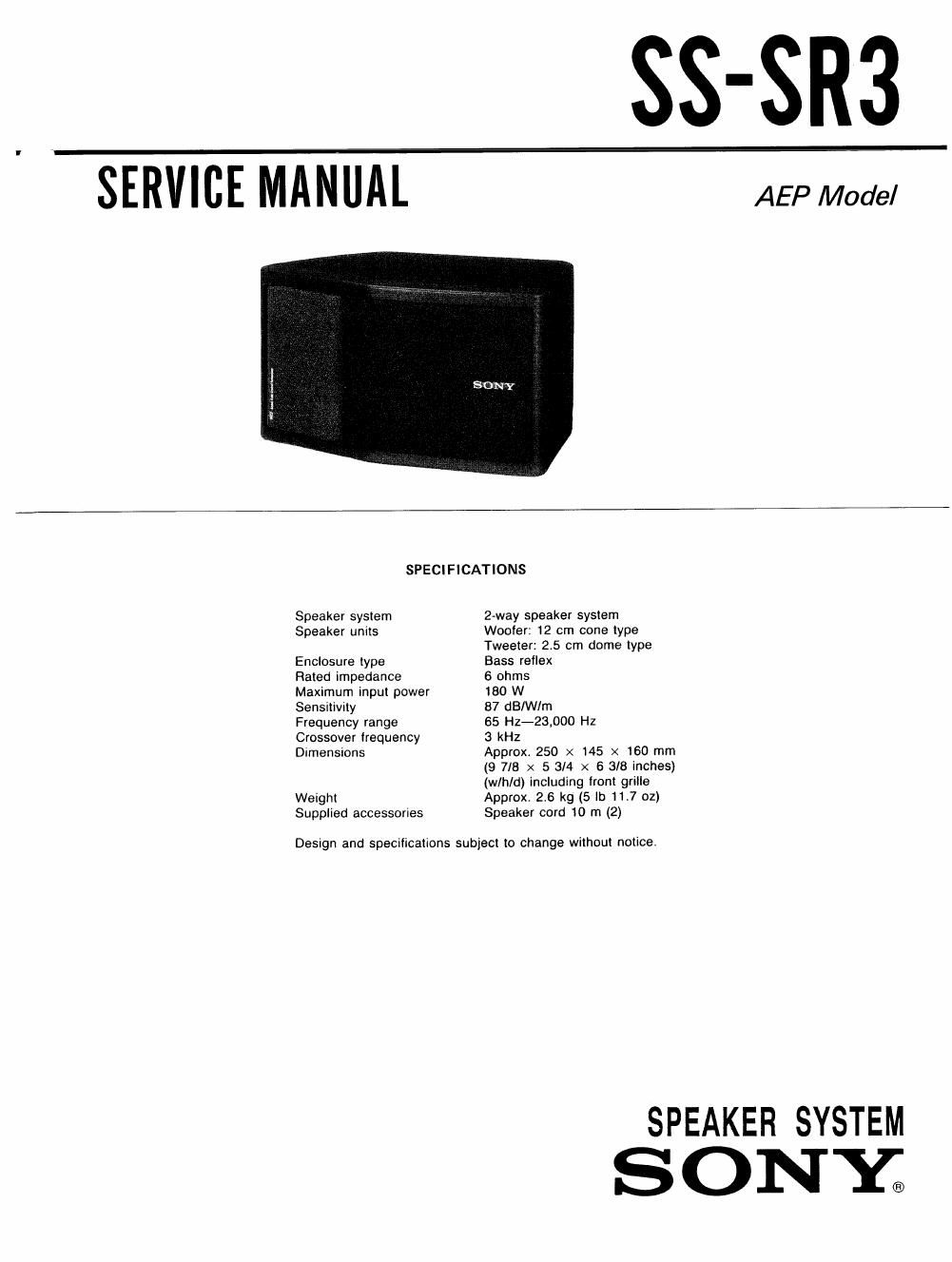

Page 1
SS-SRB
SERVICE MANUAL
AEP Model
SPECIFICATIONS
Speaker system
Speaker units
Enclosure type
Rated impedance
Maximum input power
Sensitivity
Frequency range
Crossover frequency
Dimensions
Weight
Supplied accessories
2-way speaker system
Woofer: 12 cm cone type
Tweeter: 2.5 cm dome type
Bass reflex
6 ohms
180 W
87 dB/W/rn
65 Hz-23,000 Hz
3 kHz
Approx. 250 X 145 X 160 mm
(9 7/6 x 5 3/4 x a 3/8 inches)
(w/hld) including front grille
Approx. 2.6 kg (5 lb 11.7 oz)
Speaker cord 10 m (2)
Design and specifications subject to change without notice.
SPEAKER SYSTEM
SONY.
Page 2
SSSR3 SECTION 1
DISASSEMBLY AND SETTING
14- GRILLE FRAME REMOVAL 0 Note: Follow the disassemblv procedure in the numerical order given.
0 In the direction of
arrow with screwdriver.
Grille frame
1-2. SPEAKER (WOOFER) REMOVAL
0 Remove Grille frame in the
0 +BV 4x16 (2 pcs)
direction of arrow.
Speaker (WOOFERl
0 Remove the cord
from Speaker.
1-3. FRONT PANEL REMOVAL
Front panel 37
0 +BV4x16 (2 pcs.)
1-4. FRONT PANEL SETTING
t\ Front panel
0 P_u|l up Front panel in the
direction of arrow.
Tweeter housing
9 Insert the (of/k
to a de t.
n / /
0 Pull up Tweeter housing and then
insert two >'( claw in the direction
of arrow.
