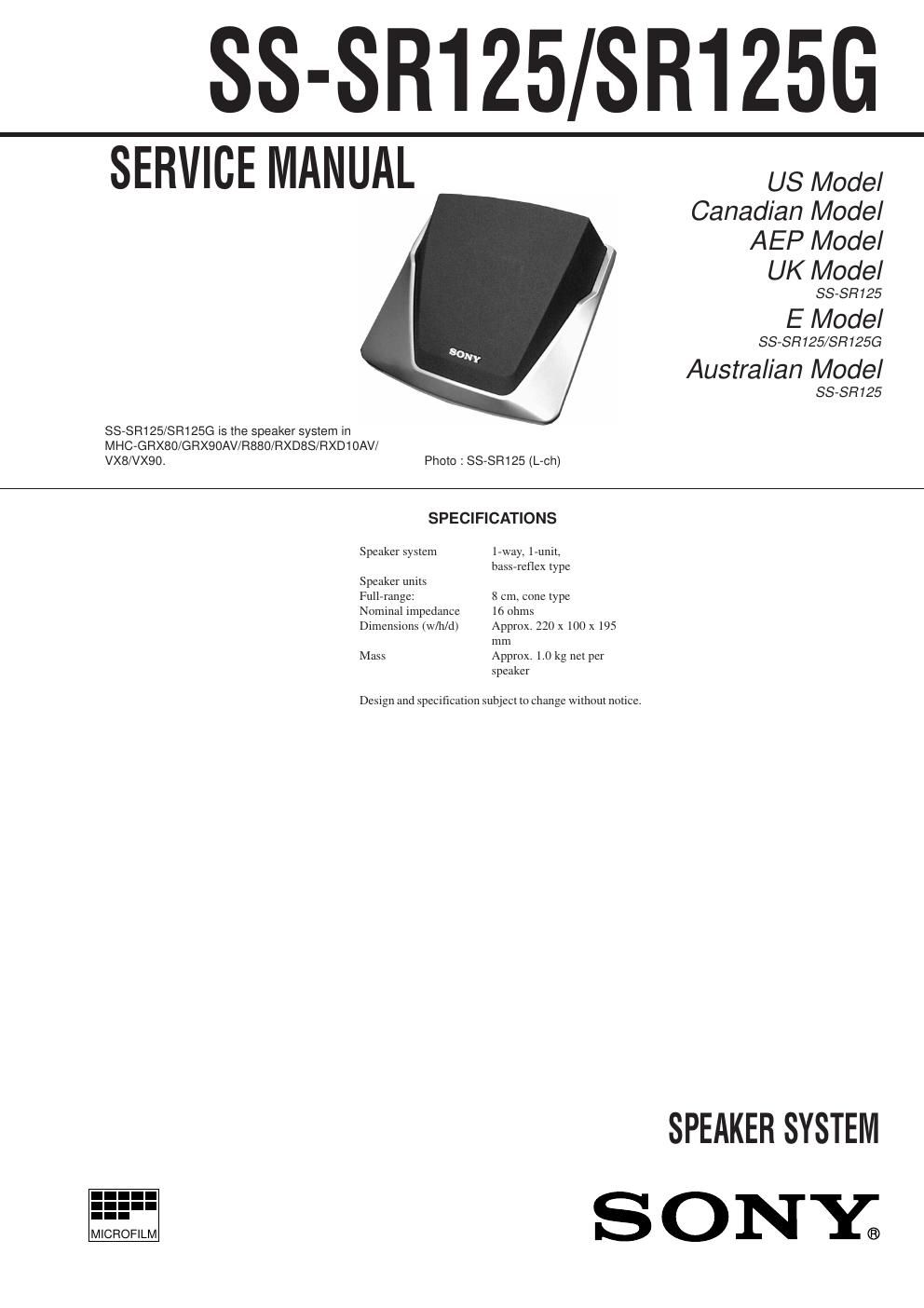

Sony ss sr 125 service manual

Page 1

Ð 2 Ð NOTE: ¥ -XX, -X mean standardized parts, so they may have some difference from the original one. Ref. No. Part No. Description Remark EXPLODED VIEW AND PARTS LIST 1 X-4950-667-1 FRAME (L) ASSY, GRILLE 1 X-4950-695-1 FRAME (R) ASSY, GRILLE 2 4-214-858-01 CABINET (L) 2 4-215-142-01 CABINET (R) 3 X-4950-678-1 BASE (L) ASSY (SR125) 3 X-4951-509-1 BASE (R) ASSY (SR125) 3 X-4951-515-1 BASE (L) ASSY (SR125G) 3 X-4951-516-1 BASE (R) ASSY (SR125G) 4 7-685-161-14 SCREW +P 4x12 TYPE 2 NON-SLIT 5 1-537-775-21 TERMINAL BOARD Sony Corporation Home A&V Products Company 9-928-812-11 99B091689-1 Printed in Japan © 1999. 2 Published by Quality Assurance Dept. (Shinagawa) SS-SR125/SR125G Ref. No. Part No. Description Remark 6 4-982-339-01 FOOT 7 7-685-163-14 SCREW +P 4x16 TYPE 2 NON-SLIT 8 7-685-165-14 SCREW +P 4x25 TYPE 2 NON-SLIT 9 7-685-162-14 SCREW +P 4x14 TYPE 2 NON-SLIT SP1 1-505-302-11 SPEAKER (8cm) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** 1-769-433-11 CORD, SPEAKER ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 1 4 4 2 3 89 5 7 6 8 6 6 6 SP1 L-ch
