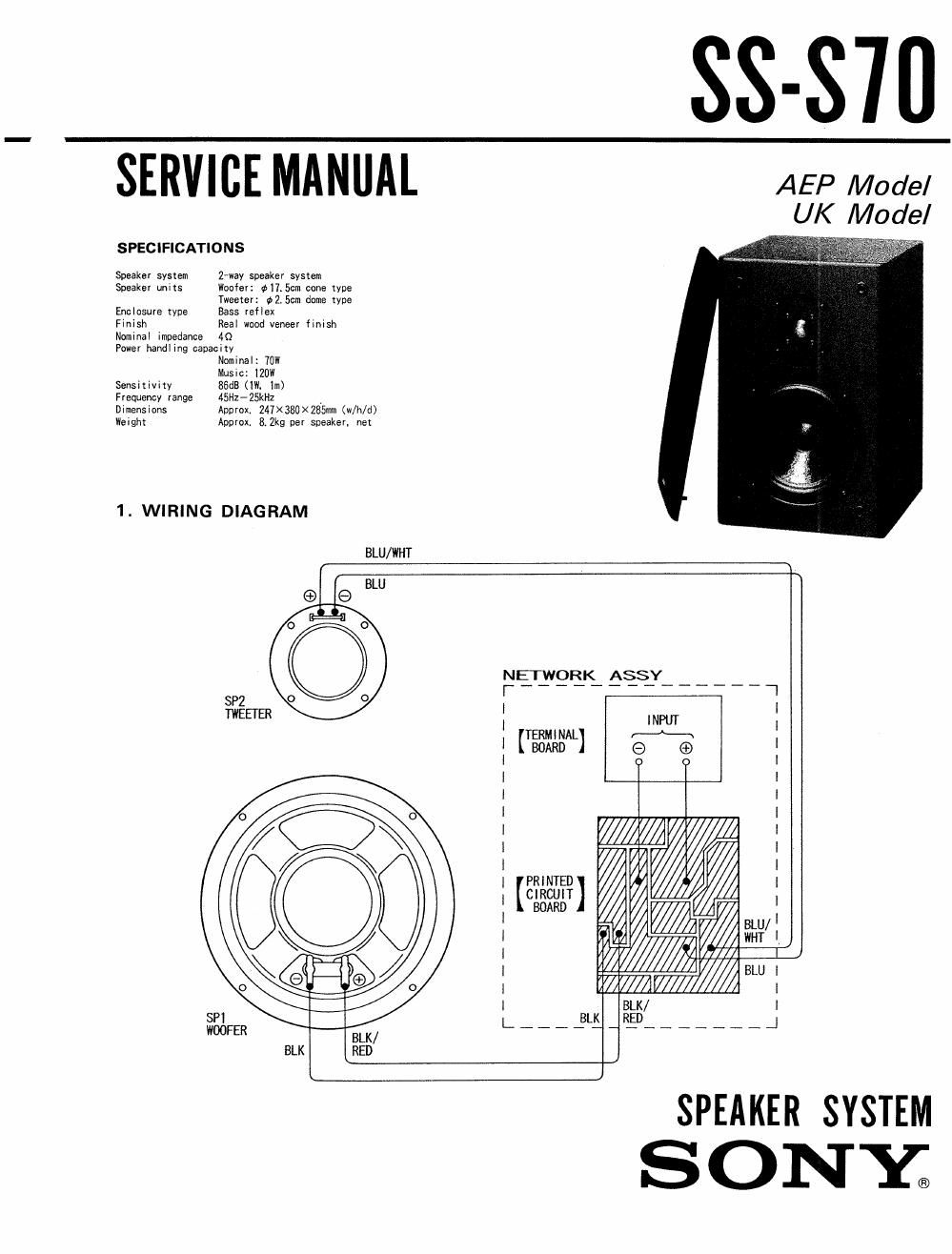

Sony ss s 70 service manual
This is the 2 pages manual for sony ss s 70 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss s 70 service manual (Ocr-read)
Page 2
88-870
2. EXPLODED VIEW AND PARTS LIST
NOTE:
' The mechanical parts with no reference
number in the exploded views are not
supplied
o Color Indication of Appearance Parts
Example:
KNOB, BALANCEIWHITELIRED) 2
T 1
Parts color Cabinets color
1
not supplied
&_ Part No. Descrigtion M Part No. Descrigtion
I T-8150-498~A FRAME ASSY. GRILLE SP1 T-8110-484-I SPEAKER UNIT (WO0FER:17.50m)
2 T-815I'451-I SCREW (P4.0><25). TAPPING SP2 T-8110-482-I SPEAKER UNIT (TWEETER:2.5cm)
3 T'8I5I-290-1 GASKET (WOOFER)
4 T-BI 51 -288~I GASKET (TWEETER) ACCESSORY & PACKING MATERIAL
5 T-8150'497-A BOX ASSY, SPEAKER
T-8151-543-I MANUAL, INSTRUCTION
6 T~8150-402-A NETWORK ASSY T~8110-536-I CORD. SPEAKER
. English
Sony Corporation 91H1859-1
Audio Group Printed in Japan
9-956-669-1 1 @1991 8
- 2 - Published by Customer Relations and Service Group
