Sony ss rx 707 service manual
This is the 2 pages manual for sony ss rx 707 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss rx 707 service manual (Ocr-read)

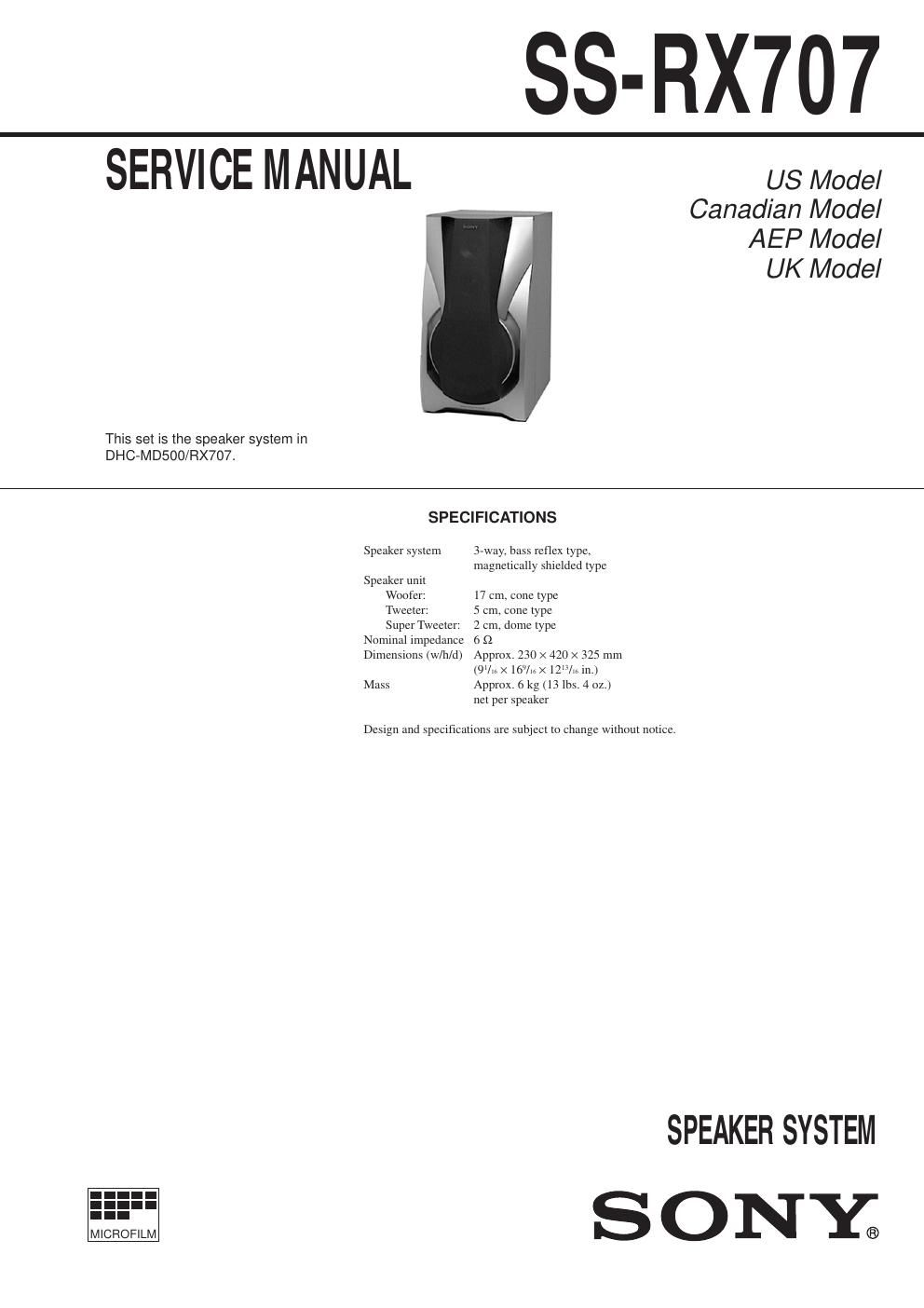

Page 1
Sony Corporation Home A&V Products Company Ñ 2 Ñ 98F1672-1 Printed in Japan ©1998.6 Published by Quality Assurance Dept. (Shibaura) 9-922-888-11 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-874-614-21 SCREW (4) (3.5 ´ 14), TAPPING 2 4-900-903-01 PACKING *3 A-4411-146-A CABINET ASSY, SPEAKER (G) *3 A-4411-138-A CABINET ASSY, SPEAKER (EXCEPT G) 4 X-4950-143-1 FRAME ASSY, GRILLE 5 X-4950-142-1 PANEL ASSY, FRONT *6 4-963-075-01 CATCHER 7 1-537-332-11 TERMINAL BOARD EXPLODED VIEW AND PARTS LIST NOTE: ¥ Items marked Ò*Ó are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.¥ The mechanical parts with no reference number in the exploded views are not supplied. SP1 1-505-563-11 SPEAKER (2 cm) SP2 1-505-518-11 SPEAKER (5 cm) SP3 1-505-858-11 SPEAKER (16 cm) ACCESSORIES & PACKING MATERIALS ******************************** 1-769-306-11 CORD, SPEAKER¥ Abbreviation G : German 5 6 6 43 7 2 1 1 1 SP2SP1 SP3
