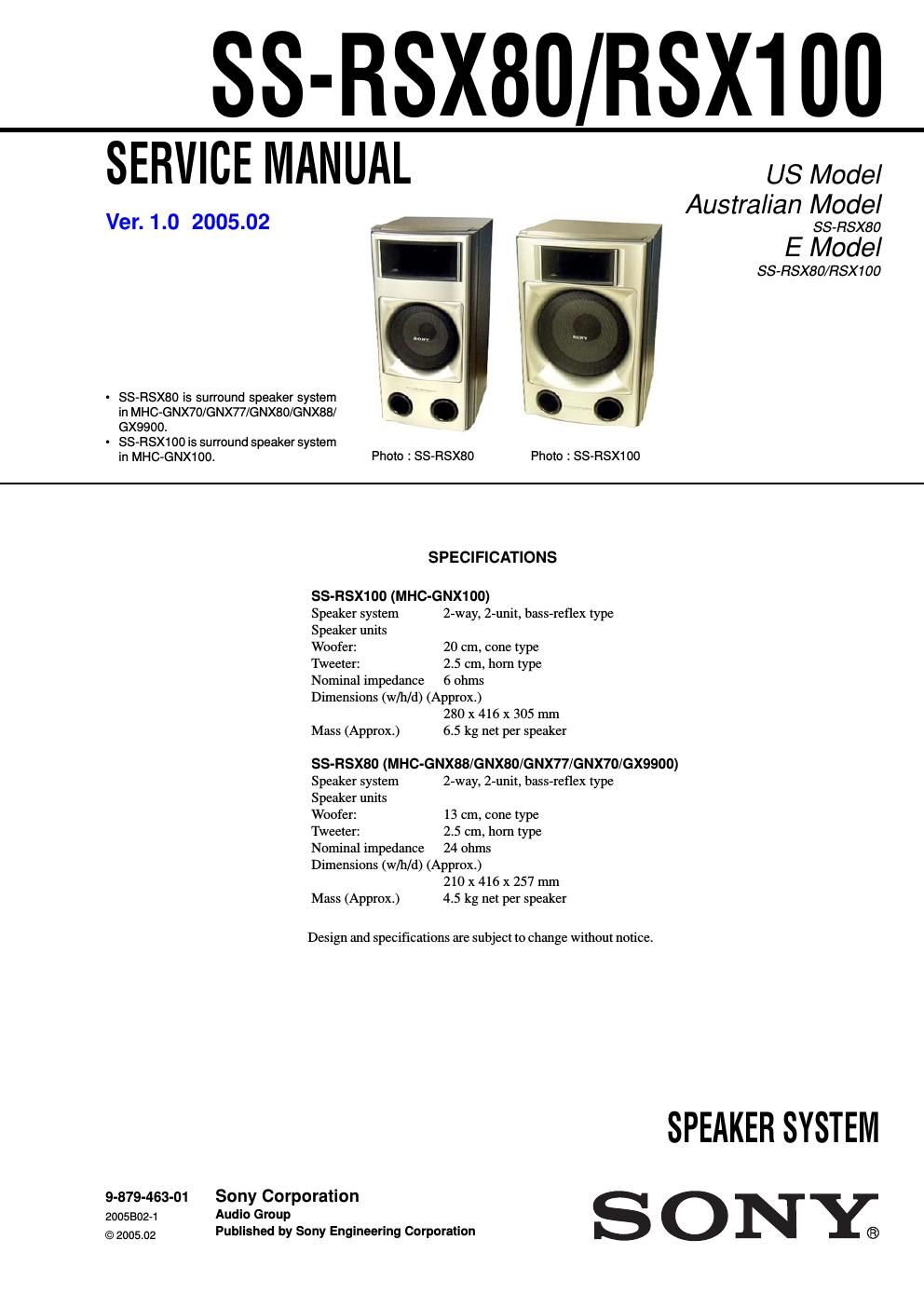

Sony ss rsx 100 service manual
This is the 4 pages manual for sony ss rsx 100 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss rsx 100 service manual (Ocr-read)
Page 1
2 SS-RSX80/RSX100 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks EXPLODED VIEWS NOTE: --XX, -X mean standardized parts, so they may have some difference from the original one. -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.-The mechanical parts with no reference number in the exploded views are not supplied. 4 123 3 3 3 3 5 6 7 7 not supplied 1. SS-RSX80 1A-1087-246-A FRONT PANEL ASSY 22-515-212-01 HORN 34-874-614-71 SCREW 41-826-111-11 LOUDSPEAKER (2.5cm)54-874-614-21 SCREW (1) (3.5X14), TAPPING 61-826-136-11 LOUDSPEAKER (13cm) 72-515-300-01 DUCT
Page 2
3 SS-RSX80/RSX100 2. SS-RSX100 5454 54 5253 54 54 55 56 56 51 51 57 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 2-515-240-01 DUCT 52 A-1087-205-A FRONT PANEL ASSY 53 2-515-212-01 HORN 54 4-874-614-71 SCREW55 1-826-110-11 LOUDSPEAKER (2.5cm) 56 4-874-614-21 SCREW (1) (3.5X14), TAPPING 57 1-826-109-11 LOUDSPEAKER (20cm)
