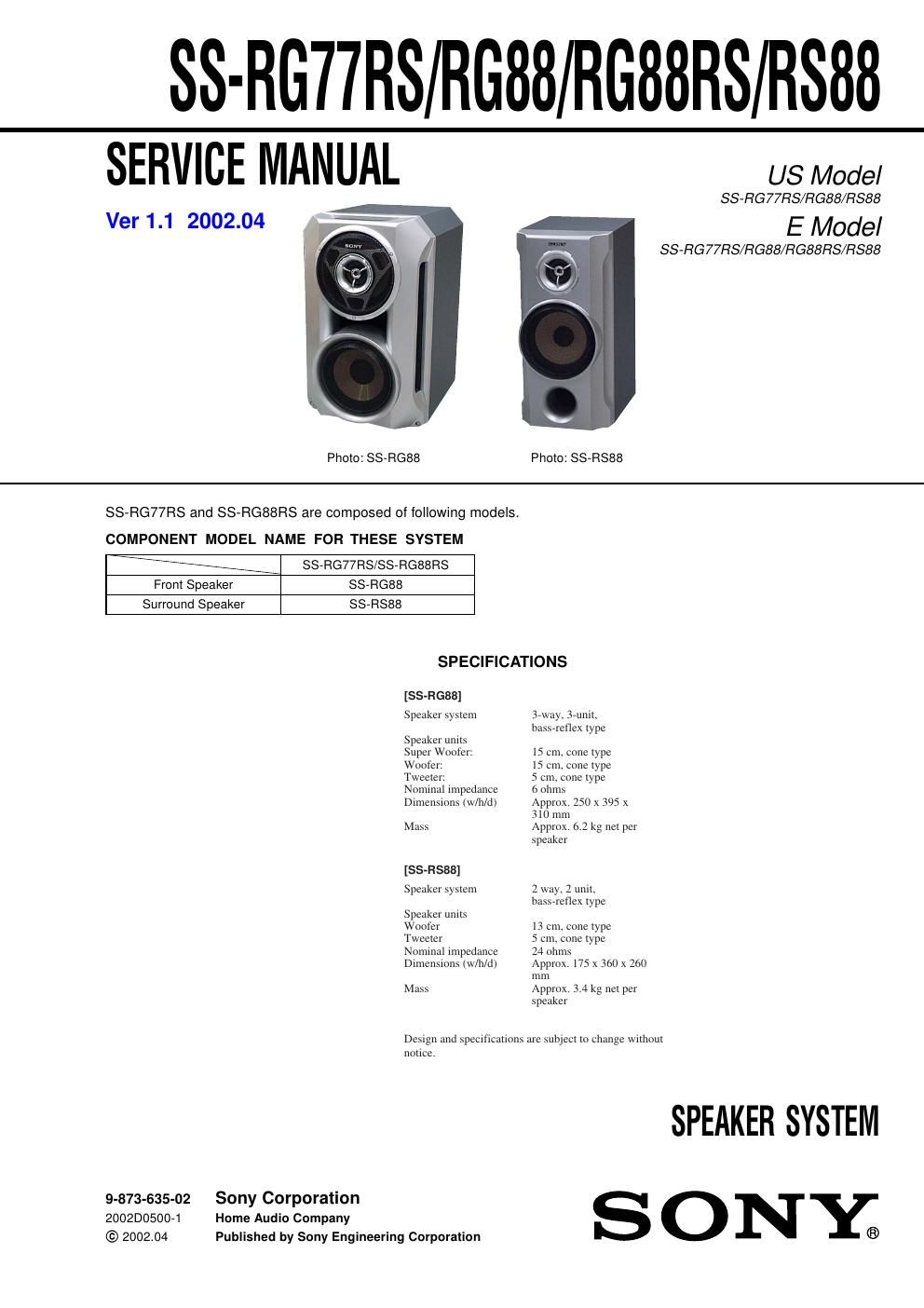

Sony ss rs 88 service manual
This is the 4 pages manual for sony ss rs 88 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss rs 88 service manual (Ocr-read)
Page 1
2 SS-RG77RS/RG88/RG88RS/RS88 -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color SP3 4 6 SP1 1 45 1 not supplie d not supplied not supplied SP2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-874-614-21 SCREW (1) (3.5X14), TAPPING 4 4-986-971-01 SCREW (3.5) 5 4-942-029-01 PACKING 6 A-4735-707-A FRONT PANEL ASSY SP1 1-544-980-11 SPEAKER (15cm) SP2 1-544-982-11 SPEAKER (15cm) SP3 1-544-981-11 SPEAKER (5cm) EXPLODED VIEWS 1. SS-RG88 -T he condenser installed to the speaker unit is not supplied for service. V er 1.1
Page 2
3 SS-RG77RS/RG88/RG88RS/RS88 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 52 4-942-029-01 PACKING 53 A-4735-709-A PANEL ASSY, FRONT 56 4-986-971-01 SCREW (3.5)57 4-874-614-01 SCREW (1) (3.5X14), TAPPING SP4 1-544-983-11 SPEAKER (13cm) SP5 1-544-977-11 SPEAKER (5cm) not supplied SP4 52 53 SP5 56 57 2. SS-RS88 V er 1.1
