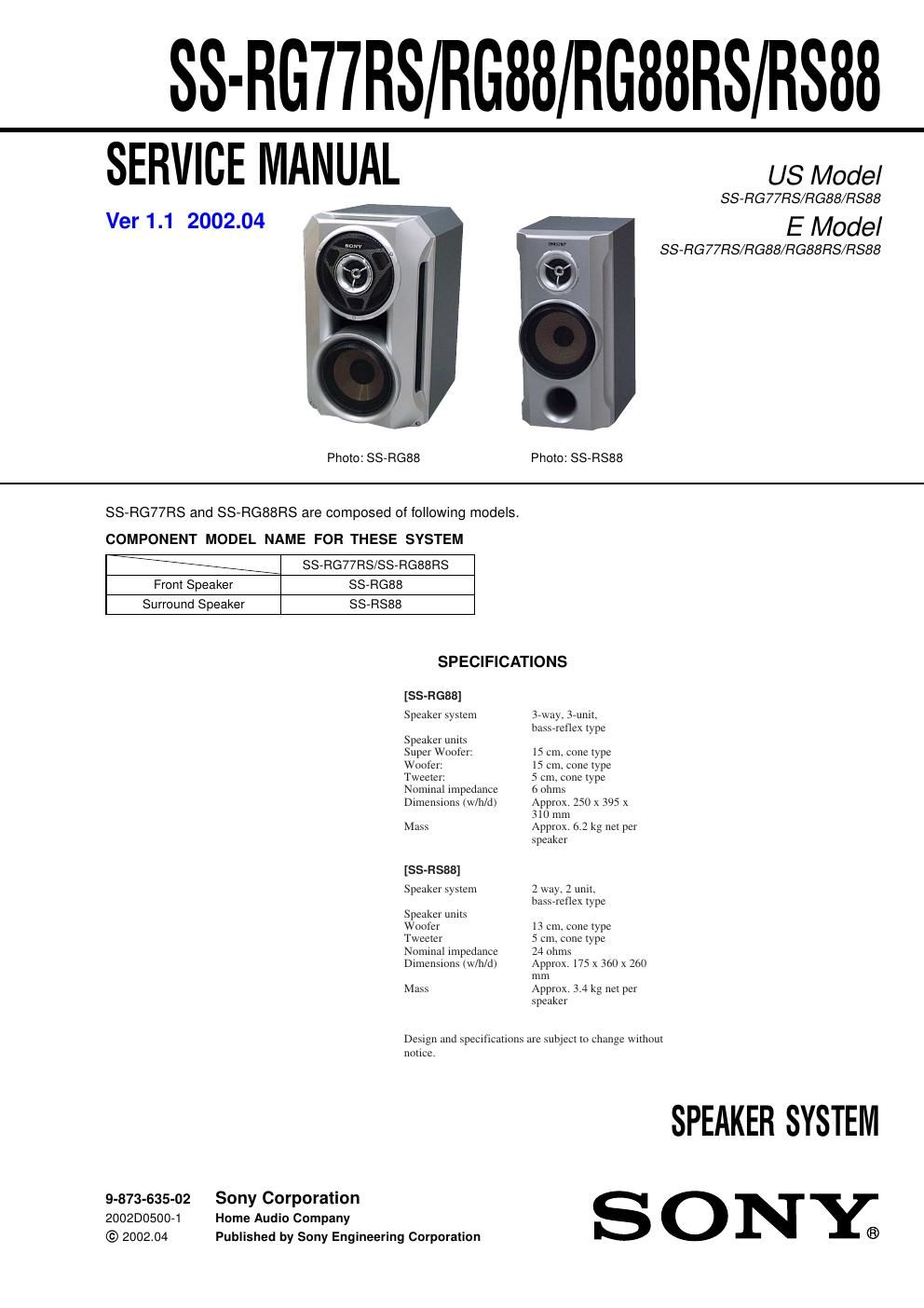

Page 1
2 SS-RG77RS/RG88/RG88RS/RS88 -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color SP3 4 6 SP1 1 45 1 not supplie d not supplied not supplied SP2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-874-614-21 SCREW (1) (3.5X14), TAPPING 4 4-986-971-01 SCREW (3.5) 5 4-942-029-01 PACKING 6 A-4735-707-A FRONT PANEL ASSY SP1 1-544-980-11 SPEAKER (15cm) SP2 1-544-982-11 SPEAKER (15cm) SP3 1-544-981-11 SPEAKER (5cm) EXPLODED VIEWS 1. SS-RG88 -T he condenser installed to the speaker unit is not supplied for service. V er 1.1
Page 2
3 SS-RG77RS/RG88/RG88RS/RS88 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 52 4-942-029-01 PACKING 53 A-4735-709-A PANEL ASSY, FRONT 56 4-986-971-01 SCREW (3.5)57 4-874-614-01 SCREW (1) (3.5X14), TAPPING SP4 1-544-983-11 SPEAKER (13cm) SP5 1-544-977-11 SPEAKER (5cm) not supplied SP4 52 53 SP5 56 57 2. SS-RS88 V er 1.1
