Sony ss rg 30 service manual

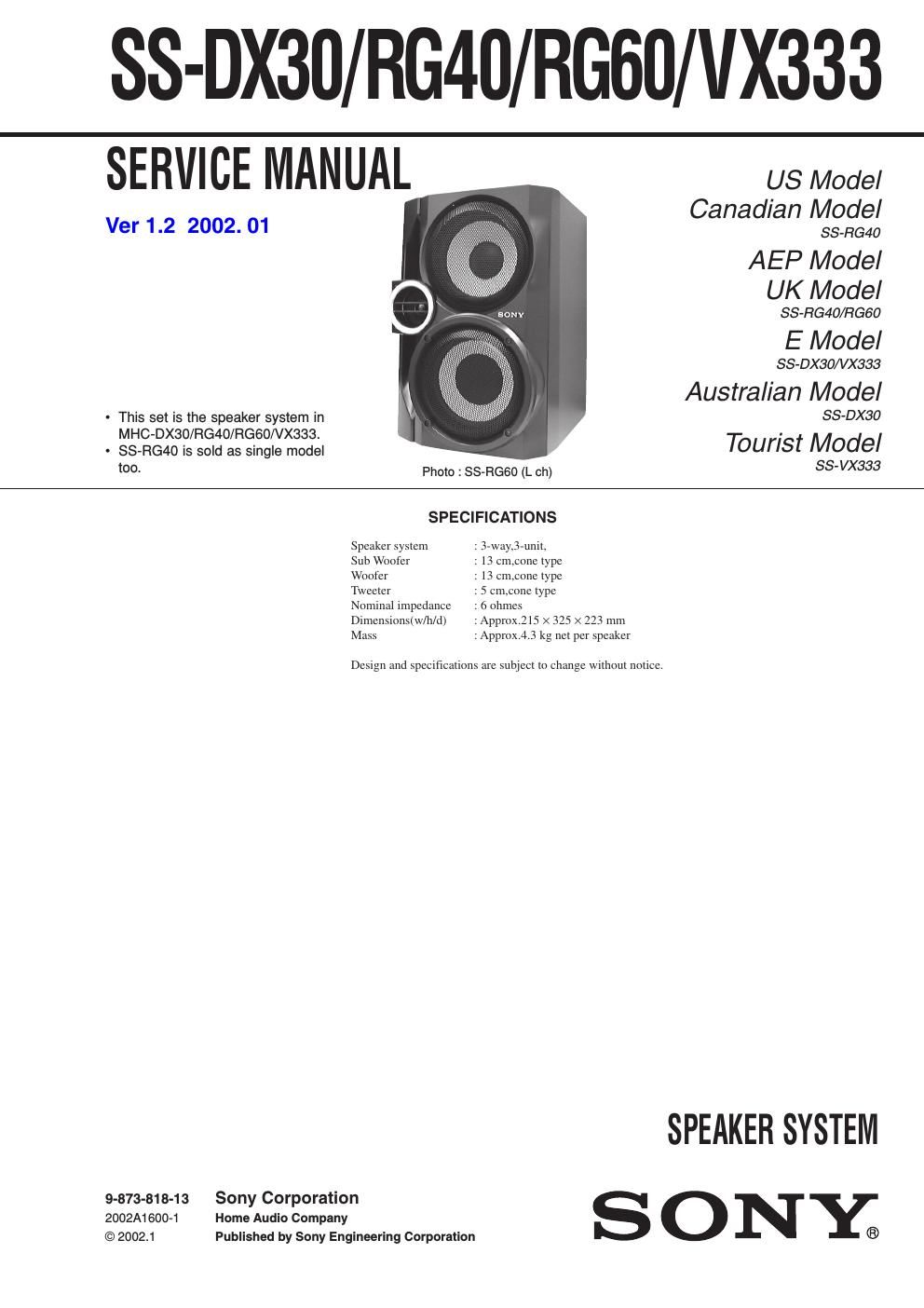

Page 1

2 SS-DX30/RG40/RG60/VX333 EXPLODED VIEW AND PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 A-4412-773-A FRONT PANEL (R) ASSY (BLACK)(DX30,VX333) 1 A-4412-775-A FRONT PANEL (L) ASSY (BLACK)(DX30,VX333) 1 X-4953-745-1 FRONT PANEL ASSY L (RG40:AEP,UK/RG60) 1 X-4953-746-1 FRONT PANEL ASSY R (RG40:AEP,UK/RG60) 1 X-4954-346-1 FRONT PANEL (R) ASSY (SILVER)(VX333) 1 X-4954-347-1 FRONT PANEL (L) ASSY (SILVER)(VX333) 2 4-874-614-11 SCREW (4) (3.5X14), TAPPING (DX30,VX333) 2 4-993-215-01 SCREW (3.5X16)(RG40:AEP,UK/RG60) 3 1-529-933-11 SPEAKER (13cm)(DX30) 3 1-529-935-11 LOUD SPEAKER (13cm)(VX333) 3 1-544-789-11 SPEAKER (13cm)(RG40:AEP,UK/RG60) 4 1-529-932-11 SPEAKER (TWEETER)(5cm)(DX30,VX333) 4 1-544-787-11 SPEAKER (5cm)(RG40:AEP,UK/RG60) 5 1-529-934-11 SPEAKER (13cm)(DX30) 5 1-529-936-11 LOUD SPEAKER (13cm)(VX333) 5 1-544-788-11 SPEAKER (13cm)(RG40:AEP,UK/RG60) 6 A-2004-979-A SPEAKER CABINET (R) ASSY (SILVER)(VX333) 6 A-2004-981-A SPEAKER CABINET (L) ASSY (SILVER)(VX333) 6 A-4412-654-A SPEAKER CABINET (R) ASSY (BLACK)(DX30,VX333) 6 A-4412-657-A SPEAKER CABINET (L) ASSY (BLACK)(DX30,VX333) 6 X-4953-743-1 SPEAKER CABINET ASSY L (RG40:AEP,UK/RG60) 6 X-4953-744-1 SPEAKER CABINET ASSY R (RG40:AEP,UK/RG60) 7 4-234-052-01 PACKING (DUCT)(RG40:AEP,UK/RG60) 7 4-942-029-01 PACKING (DX30,VX333) 8 4-240-151-01 SPEAKER BOX (L) (RG40:US,CND) 8 4-240-152-01 SPEAKER BOX (R) (RG40:US,CND) S 1 8 2 2 4 6 2 7 2 2 3 5 R ch V er 1.2 2002.01 - Abbreviation CND : Canadian model.
