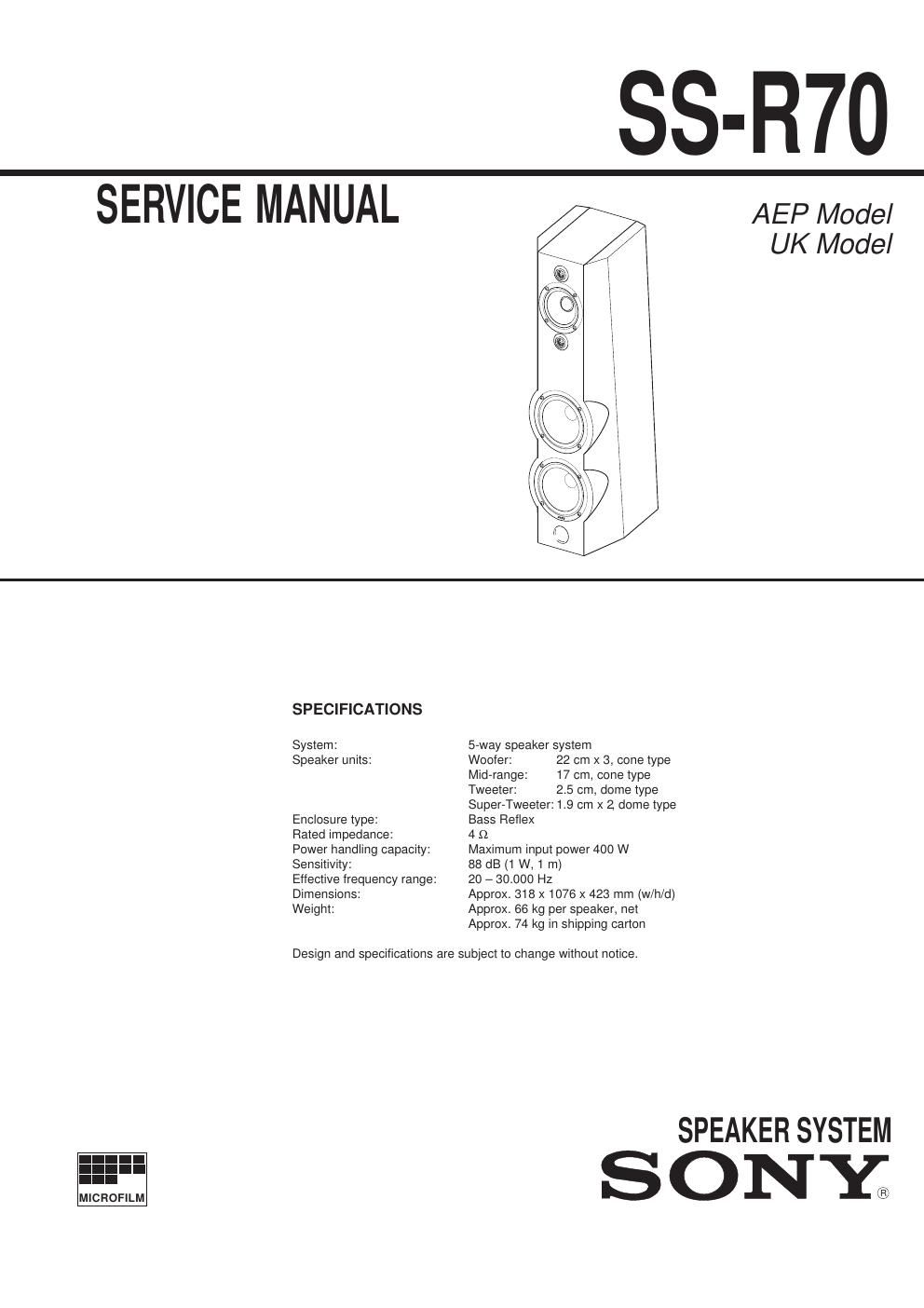

Sony ss r 70 service manual

Page 1

- 2 - SS-R70 9-960-395-11 1. EXPLODED VIEW AND PARTS LIST Consumer A&V Products Company Home A&V Division Sony Corporation English 95I7555-1 Printed in Germany © 1995.9 Published by Home A&V Div. Quality Engineering Dept. Ref. No. Part No. Description Remark 1 4-978-002-01 SPEAKER CABINET 2 1-589-786-11 MOUNTED P.C.B. 3 1-537-957-11 TERMINAL BOARD 4 4-961-784-01 SCREW P 4.0 X 25 T15 5 4-980-137-01 SCREW +SK 4.0 X 35 SP1 1-504-979-11 SPEAKER (22 cm) (Woofer) (without SONY logo) SP2 1-504-979-21 SPEAKER (22 cm) (Woofer) (with SONY logo) SP3 1-504-980-11 SPEAKER (17 cm, 2.5 cm) (Mid range, Tweeter) SP4 1-504-982-11 SPEAKER (1.9 cm) (Super-Tweeter) SP5 1-505-162-11 SPEAKER (22 cm) (Inner Woofer) Ref. No. Part No. Description Remark 3-800-775-01 INSTRUCTION MANUAL *4-978-004-01 INDIVIDUAL CARTON *4-978-005-01 CUSHION (A) *4-978-006-01 CUSHION (B) *4-978-007-01 PROTECTOR NOTE: ¥ The mechanical parts with no reference number in the exploded views are not supplied. ¥ Items marked "*" are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 13 4 4 2 4 4 5 SP1 SP2 SP3 SP4 SP4 SP5
