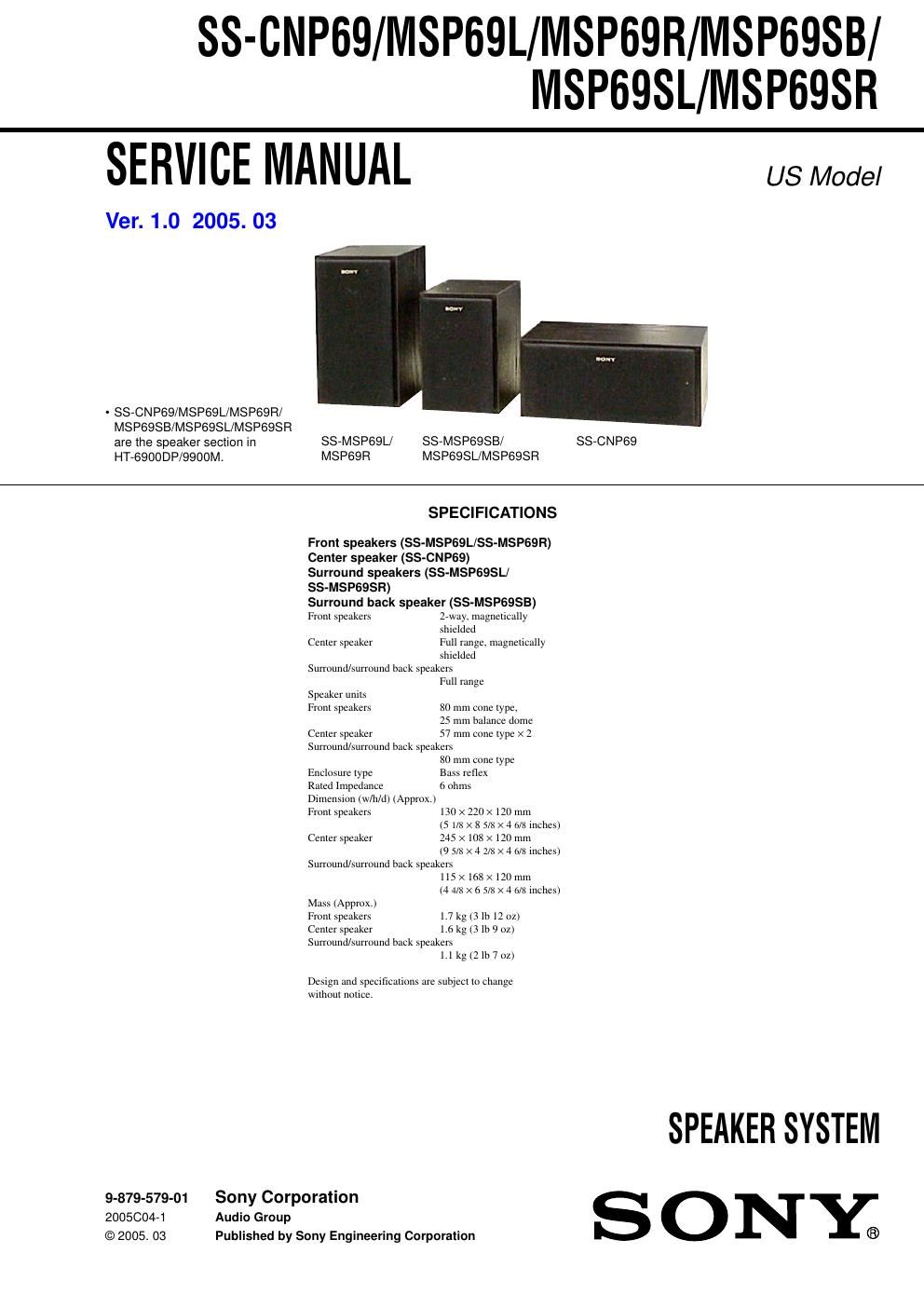

Sony ss msp 69 sl service manual
This is the 4 pages manual for sony ss msp 69 sl service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss msp 69 sl service manual (Ocr-read)
Page 1
2 SS-CNP69/MSP69L/MSP69R/MSP69SB/MSP69SL/MSP69SRSECTION 1 EXPLODED VIEW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: - The mechanical parts with no reference number in the exploded views are not supplied. 1 A-1086-879-A OVERALL ASSY (CNP69) 2 4-874-614-12 SCREW (1) (3.5X14), TAPPING 3 1-826-142-11 LOUD SPEAKER (5.7cm) (CNP69) 4 A-1090-407-A GRILLE FRAME ASSY (CNP69) 5 1-694-516-11 TERMINAL, SPEAKER (EXCEPT CNP69) 6 A-1084-010-A GRILLE FRAME ASSY (MSP69L/MSP69R) 7 1-826-141-11 LOUD SPEAKER (8cm) (MSP69L/MSP69R) 8 1-826-140-11 LOUD SPEAKER (2.5cm) (MSP69L/MSP69R) 9 A-1090-408-A GRILLE FRAME ASSY (MSP69SB/MSP69SL/MSP69SR) 10 1-825-953-11 SPEAKER (8cm) (MSP69SB/MSP69SL/MSP69SR) 11 4-986-971-01 SCREW (3.5) (EXCEPT CNP69) 4 5 2 2 2 11 2 2 2 2 2 2 1 67 8 10 9 SS-CNP69 SS-MSP69SB/MSP69SL/MSP69SR SS-MSP69L/MSP69R not supplied not supplied not suppliednot supplie d not supplied not supplied not supplied 3 5 2 11 2 not supplied
Page 2
3 SS-CNP69/MSP69L/MSP69R/MSP69SB/MSP69SL/MSP69SR MEMO
