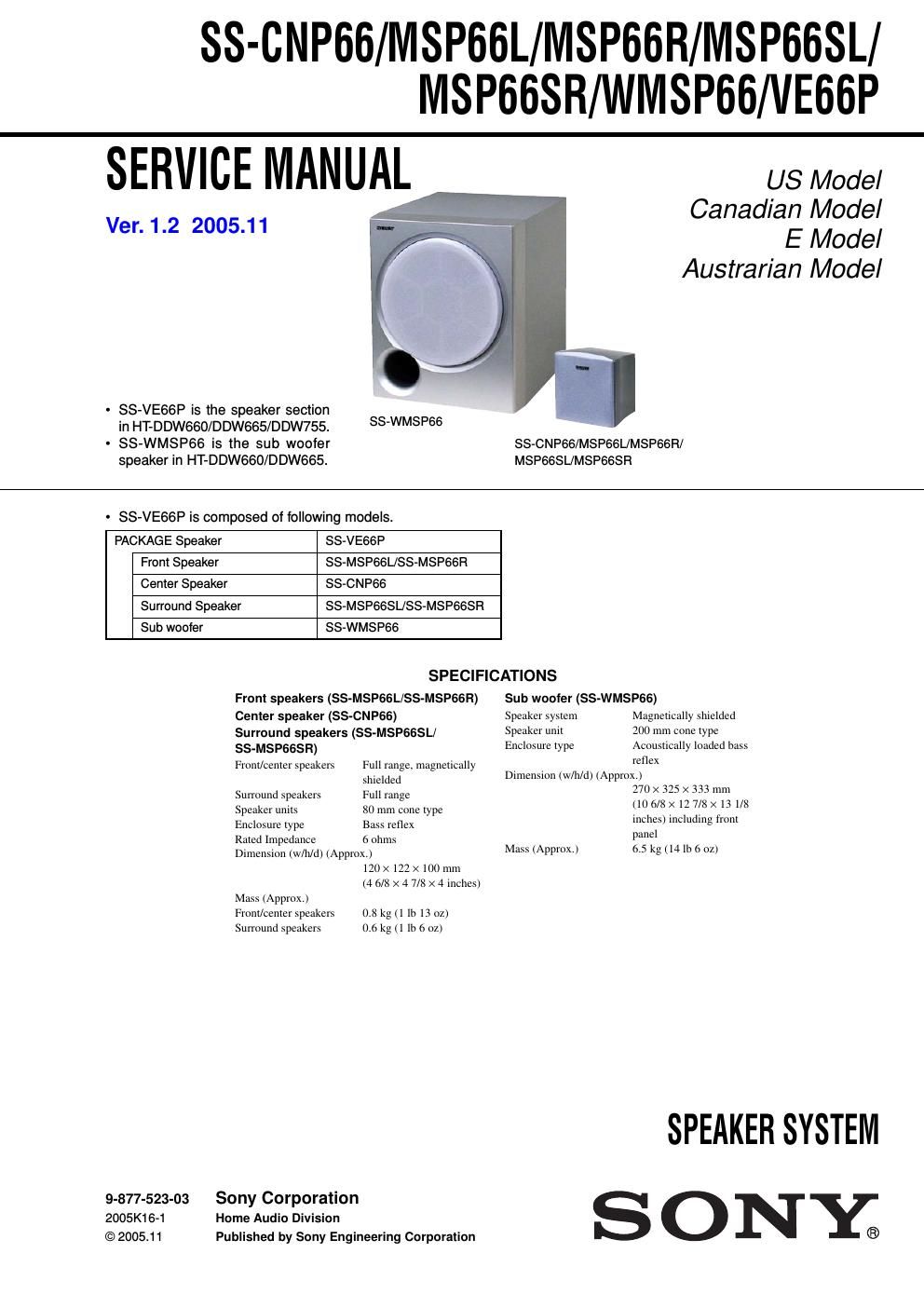

Sony ss msp 66 sr service manual
This is the 4 pages manual for sony ss msp 66 sr service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss msp 66 sr service manual (Ocr-read)
Page 1
2 SS-CNP66/MSP66L/MSP66R/MSP66SL/MSP66SR/WMSP66/VE66P ark SS-CNP66/MSP66L/MSP66R/MSP66SL/MSP66SR EXPLODED VIEWS NOTE: -The mechanical parts with no reference number in the exploded views are not supplied.--XX, -X mean standardized parts, so they may have some differences from the original one. 13 2 3 not suppliednot suppliednot supplied 4 Ve r. 1.1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 14-986-971-02 SCREW (3.5) 21-694-516-11 TERMINAL, SPEAKER 34-246-231-01 SCREW (3.5X14)4A-1072-247-A OVERALL ASSY (SS-CNP66/MSP66L/MSP66R) 4A-4714-920-A OVERALL ASSY (SS-MSP66SL/MSP66SR)
Page 2
3 SS-CNP66/MSP66L/MSP66R/MSP66SL/MSP66SR/WMSP66/VE66P Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SS-WMSP66 4 5 6 2 31 not supplied #2 #1 1A-4713-822-A OVERALL ASSY 24-243-842-21 GRILLE FRAME 34-998-417-02 SONY EMBLEM (No.5) 41-825-845-11 SPEAKER (20cm)54-244-708-01 FRONT PANEL 64-243-866-01 DUCT PACKING #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 MM #2 4-235-677-01 SCREW (4X20)(TYPE1), +BVTP
