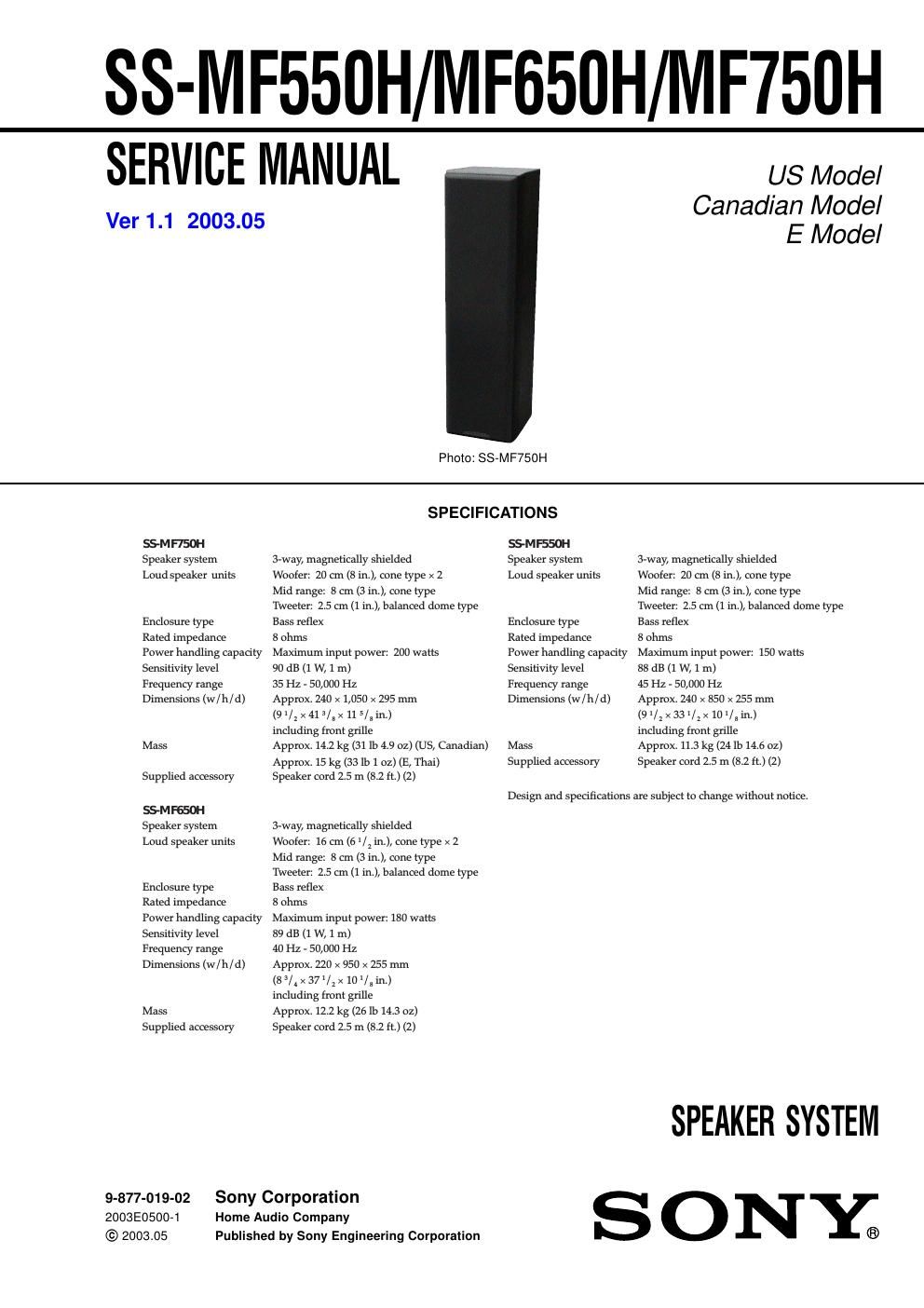

Page 1
2 SS-MF550H/MF650H/MF750H EXPLODED VIEWS -Items marked * are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. NOTE: - -XX and -X mean standardized parts, so they may have some difference from the original one. - Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑↑ Pa rts Color Cabinet's Color (1) SS-MF550H Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4955-372-1 GRILLE FRAME ASSY (US, Canadian) 1 X-4955-548-1 GRILLE FRAME ASSY (E, Thai) 3 4-235-904-01 SCREW (4X25) 4 4-235-903-01 SCREW (3.5X20) 5 A-4737-358-A CABINET ASSY, SPEAKER (US, Canadian) 5 A-4737-562-A CABINET ASSY, SPEAKER (E, Thai) 6 4-210-830-01 CATCHER SP1 1-825-318-11 SPEAKER (20cm) SP2 X-4955-367-1 TW ASSY (M/T FRAME) (2.5cm, 8cm) 1 3 4 5 6 not suppliednot supplie d not supplied SP1 SP2 not supplied V er 1.1
Page 2
3 SS-MF550H/MF650H/MF750H (2) SS-MF650H Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-4955-371-1 GRILLE FRAME ASSY (US, Canadian) 51 X-4955-544-1 GRILLE FRAME ASSY (E, Thai) 53 4-235-904-01 SCREW (4X25) 54 4-235-903-01 SCREW (3.5X20) 55 A-4737-357-A CABINET ASSY, SPEAKER (US, Canadian)55 A-4737-519-A CABINET ASSY, SPEAKER (E, Thai) 56 4-210-830-01 CATCHER SP4 1-825-317-11 SPEAKER (16cm) SP5 1-825-317-11 SPEAKER (16cm) SP7 X-4955-367-1 TW ASSY (M/T FRAME) (2.5cm, 8cm) 5153 54 55 56 not supplie d not supplie d not supplied not supplied SP4 SP5 SP7 53 V er 1.1
