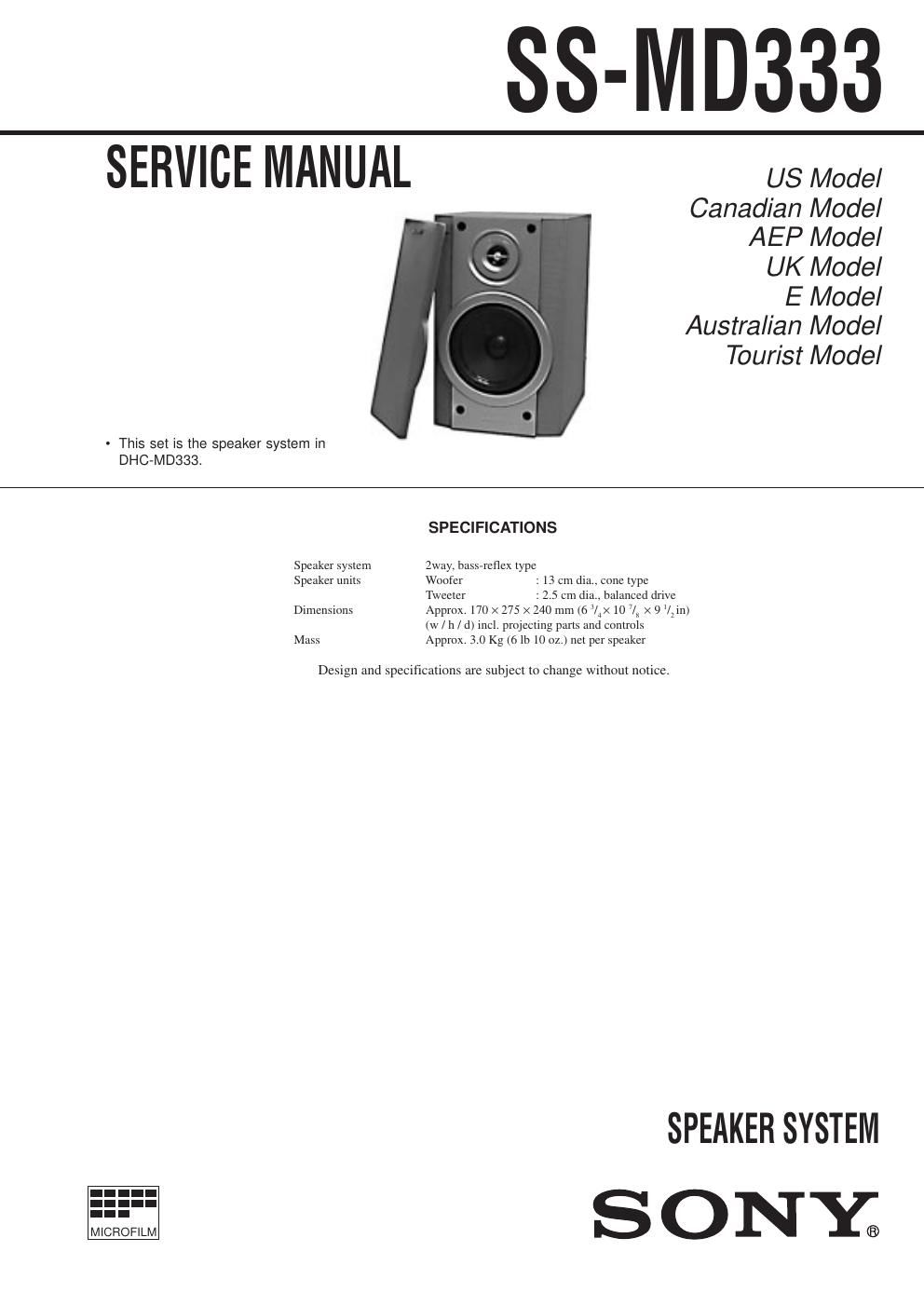

Sony ss md 333 service manual
This is the 2 pages manual for sony ss md 333 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony ss md 333 service manual (Ocr-read)
Page 1
Ñ 2 Ñ Sony Corporation Home A&V Products Company 9-922-961-12 98J0016094-1D Printed in Japan ©1998.10 Published by Quality Assurance Dept. (Shibaura) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-4950-311-1 PANEL ASSY, FRONT 2 4-963-075-01 CATCHER 3 3-703-840-01 SCREW, TAPPING 4 4-874-614-21 SCREW (4) (3.5 ´ 14), TAPPING 5 X-4950-312-1 FRAME ASSY, GRILLE 6 A-4411-255-A CABINET ASSY, SPEAKER (EXCEPT G, AED) *6 A-4411-255-B CABINET ASSY, SPEAKER (G, AED) 7 1-694-345-11 TERMINAL BOARD EXPLODED VIEW AND PARTS LIST NOTE: ¥ Items marked by asterisk ("*") are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 8 1-790-101-11 CORD SP1 1-505-773-11 SPEAKER (12 cm) SP2 1-505-727-21 SPEAKER (2.5 cm) ACCESSORIES & PACKING MATERIALS ******************************** 1-782-794-11 CORD, SPEAKER ¥ Abbreviation G : German AED : North European 6 7 4 44 4 3 SP1 SP2 2 21 5 8
